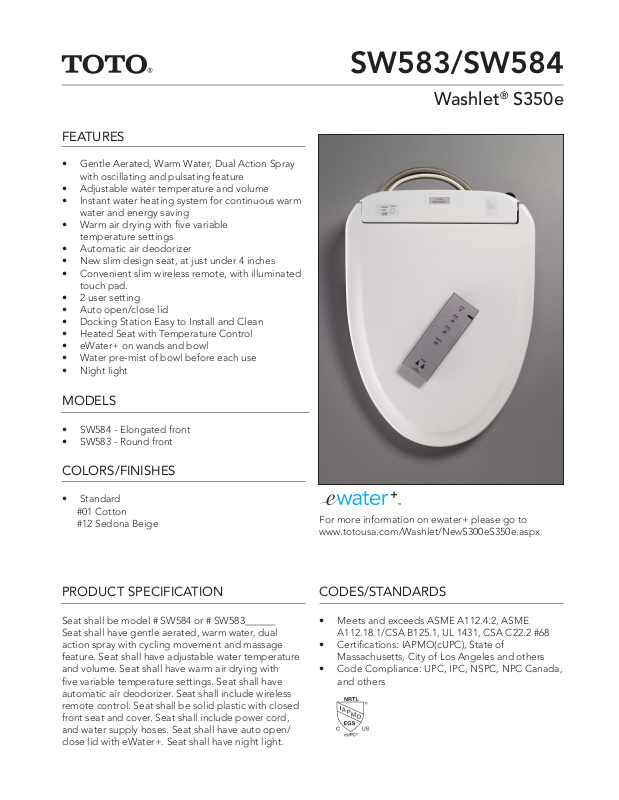

FEATURES
• Gentle Aerated, Warm Water, Dual Action Spray
with oscillating and pulsating feature
• Adjustable water temperature and volume
• Instant water heating system for continuous warm
water and energy saving
• Warm air drying with five variable
temperature settings
• Automatic air deodorizer
• New slim design seat, at just under 4 inches
• Convenient slim wireless remote, with illuminated
touch pad.
• 2 user setting
• Auto open/close lid
• Docking Station Easy to Install and Clean
• Heated Seat with Temperature Control
• eWater+ on wands and bowl
• Water pre-mist of bowl before each use
• Night light
SW583/SW584
Washlet® S350e
MODELS
• SW584 - Elongated front
• SW583 - Round front
COLORS/FINISHES
• Standard
#01 Cotton
#12 Sedona Beige
PRODUCT SPECIFICATION
Seat shall be model # SW584 or # SW583______
Seat shall have gentle aerated, warm water, dual
action spray with cycling movement and massage
feature. Seat shall have adjustable water temperature
and volume. Seat shall have warm air drying with
five variable temperature settings. Seat shall have
automatic air deodorizer. Seat shall include wireless
remote control. Seat shall be solid plastic with closed
front seat and cover. Seat shall include power cord,
and water supply hoses. Seat shall have auto open/
close lid with eWater+. Seat shall have night light.
For more information on ewater+ please go to
www.totousa.com/Washlet/NewS300eS350e.aspx
CODES/STANDARDS
• Meets and exceeds ASME A112.4.2, ASME
A112.18.1/CSA B125.1, UL 1431, CSA C22.2 #68
• Certifications: IAPMO(cUPC), State of
Massachusetts, City of Los Angeles and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
Page 2
SW583/SW584
15-5/16"
7-1/16"
(180mm)
2-1/2"
(63mm)
7/8"
(22mm)
SPECIFICATIONS
Washlet® S350e
• Power Rating: 120V AC, 60Hz, 835W
• Power Cord: Maximum length:
3.94 ft/120 cm, 3 prong
grounded plug
• Water Feature: Adjustable Water Flow Rate:
Front washing - 10.2 -
14.1 oz/min
Wide Front - from 11.5 -
14.1 oz/min
Rear washing 9.0 -
14.1 oz/min
Soft Rear - from 10.2 -
14.1 oz/min
• Washing Spray Temp: Minimum: 86˚F/30˚C
Maximum: 104˚F/40˚C
• Safety Device: Thermal fuse.
• Drying Feature: Air temperature:
High: about 140ºF/60ºC
Low: about 95ºF/35ºC
• Dryer Air Capacity: 10.24ft3/min
• Seat Warming Feature: Surface Temperature:
Minimum: 82˚F/28˚C
Maximum: 97˚F/36˚C
• Safety Device: Thermal fuse
• Water Supply Pressure: Minimum: 7.25 psi
Maximum: 108.75 psi
• Ambient Temperature: Range:
32˚F/1˚C to 104˚F/40˚C
• Warranty: One Year Limited Warranty
• Shipping weight: 13.5lbs.
• Shipping dimensions: 23” x 19-1/4” x 5-1/2”
INSTALLATION NOTES
• Washlet S350e may not fit certain toilet bowl
designs.
• If possible, with your order, please include your
model number (from the underside of the tank lid).
• Warning: Rated power consumption 835W
It is highly recommended to use a surge protector to
prevent damage in the event of a power surge.
(389mm)
5-1/2"
(140mm)
18-7/8" (480mm)
(Round)
20-3/4" (529mm)
(Elongated)
(10mm)
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
3-15/16"
(100mm)
3/8"
* GFCI Outlet
Min. 12” off floor
1-5/8"
(42mm)
These dimensions and specifications are subject to change without notice
Printed in U.S.A. | © TOTO USA 03/13 Printed on recycled paper ♻
* The 3-prong cord on the Washlet is on
the left side and is 3' long. The GFCI outlet
needs to have 120V, 10amps.
# SS-00638 v.03
