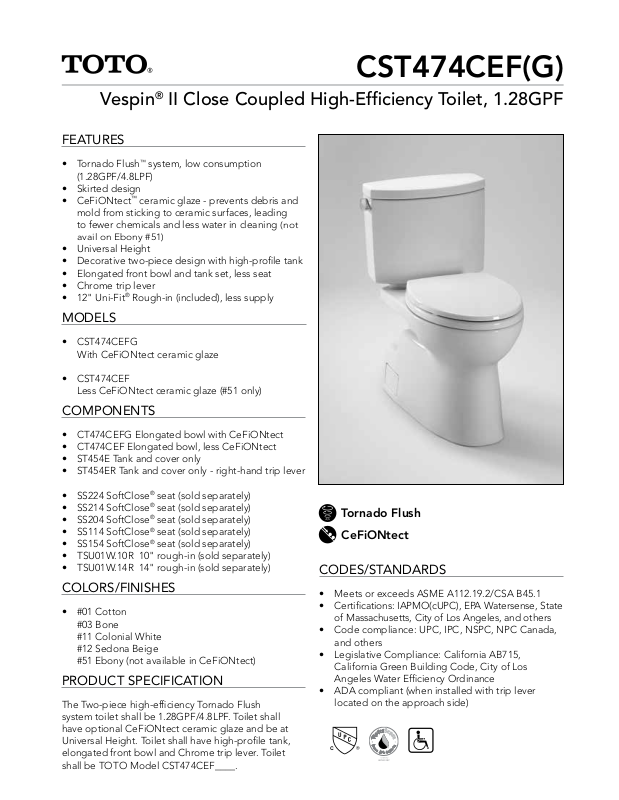

Vespin® II Close Coupled High-Efficiency Toilet, 1.28GPF
FEATURES
• Tornado Flush™ system, low consumption
(1.28GPF/4.8LPF)
• Skirted design
• CeFiONtect™ ceramic glaze - prevents debris and
mold from sticking to ceramic surfaces, leading
to fewer chemicals and less water in cleaning
avail on Ebony #51)
• Universal Height
• Decorative two-piece design with high-profile tank
• Elongated front bowl and tank set, less seat
• Chrome trip lever
• 12" Uni-Fit
®
Rough-in (included), less supply
MODELS
• CST474CEFG
With CeFiONtect ceramic glaze
(not
CST474CEF(G)
• CST474CEF
Less CeFiONtect ceramic glaze (#51 only)
COMPONENTS
• CT474CEFG Elongated bowl with CeFiONtect
• CT474CEF Elongated bowl, less CeFiONtect
• ST454E Tank and cover only
• ST454ER Tank and cover only - right-hand trip lever
• SS224 SoftClose® seat (sold separately)
• SS214 SoftClose® seat (sold separately)
• SS204 SoftClose® seat (sold separately)
• SS114 SoftClose® seat (sold separately)
• SS154 SoftClose® seat (sold separately)
• TSU01W.10R 10" rough-in (sold separately)
• TSU01W.14R 14" rough-in (sold separately)
COLORS/FINISHES
• #01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
#51 Ebony (not available in CeFiONtect)
PRODUCT SPECIFICATION
The Two-piece high-efficiency Tornado Flush
system toilet shall be 1.28GPF/4.8LPF. Toilet shall
have optional CeFiONtect ceramic glaze and be at
Universal Height. Toilet shall have high-profile tank,
elongated front bowl and Chrome trip lever. Toilet
shall be TOTO Model CST474CEF____.
Tornado Flush
CeFiONtect
CODES/STANDARDS
• Meets or exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), EPA Watersense, State
of Massachusetts, City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715,
California Green Building Code, City of Los
Angeles Water Efficiency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
Page 2
CST474CEF(G)
Vespin® II Close Coupled High-Efficiency Toilet, 1.28GPF
SPECIFICATIONS
• Water Use 1.28 GPF/4.8LPF
• Flush System Tornado Flush™
• Min. Water Pressure 8 psi (flowing)
• Water Surface 6-7/8" x 9-3/4"
• Trap Diameter 2-1/8"
• Rough-in 12" (10" or 14" optional)
• Trap Seal 2-1/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight CT474CEF(G) 75lbs.
ST454E(R) 31.5lbs.
• Shipping Dimensions CT474CEF(G)
30-1/8"L x 16-3/4"W x 22"H
ST454E(R)
18" L X 9" W X 16" H
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
These dimensions and specications are subject to change without notice
#SS-00461 v.08
