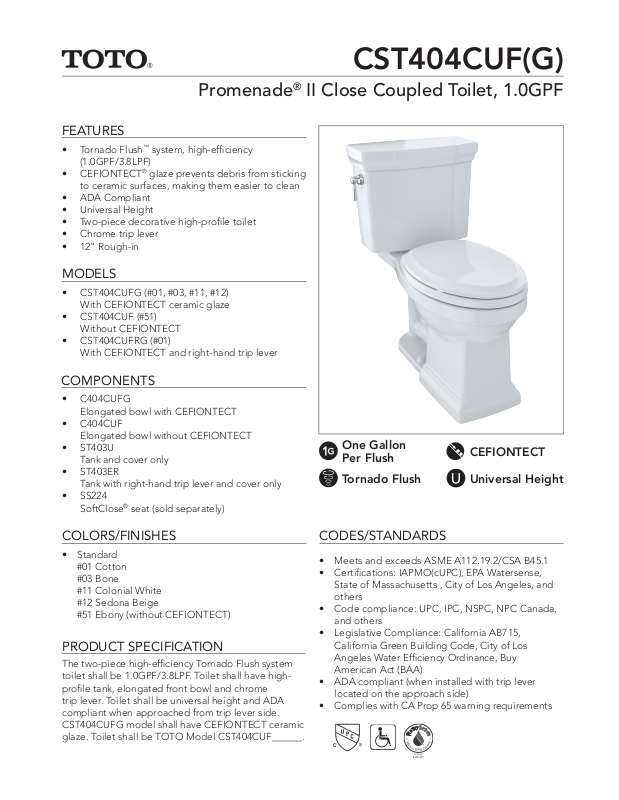

Promenade® II Close Coupled Toilet, 1.0GPF
FEATURES
• Tornado Flush™ system, high-efficiency
(1.0GPF/3.8LPF)
• CEFIONTECT® glaze prevents debris from sticking
to ceramic surfaces, making them easier to clean
• ADA Compliant
• Universal Height
• Two-piece decorative high-profile toilet
• Chrome trip lever
• 12" Rough-in
MODELS
• CST404CUFG (#01, #03, #11, #12)
With CEFIONTECT ceramic glaze
• CST404CUF (#51)
Without CEFIONTECT
• CST404CUFRG (#01)
With CEFIONTECT and right-hand trip lever
CST404CUF(G)
COMPONENTS
• C404CUFG
Elongated bowl with CEFIONTECT
• C404CUF
Elongated bowl without CEFIONTECT
• ST403U
Tank and cover only
• ST403ER
Tank with right-hand trip lever and cover only
• SS224
SoftClose® seat (sold separately)
COLORS/FINISHES
• Standard
#01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
#51 Ebony (without CEFIONTECT)
PRODUCT SPECIFICATION
The two-piece high-efficiency Tornado Flush system
toilet shall be 1.0GPF/3.8LPF. Toilet shall have highprofile tank, elongated front bowl and chrome
trip lever. Toilet shall be universal height and ADA
compliant when approached from trip lever side.
CST404CUFG model shall have CEFIONTECT ceramic
glaze. Toilet shall be TOTO Model CST404CUF______.
One Gallon
Per Flush
Tornado Flush
CEFIONTECT
Universal Height
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), EPA Watersense,
State of Massachusetts , City of Los Angeles, and
others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715,
California Green Building Code, City of Los
Angeles Water Efficiency Ordinance, Buy
American Act (BAA)
• ADA compliant (when installed with trip lever
located on the approach side)
• Complies with CA Prop 65 warning requirements
Certified by
Page 2
CST404CUF(G)
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Promenade® II Close Coupled Toilet, 1.0GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
DIMENSIONS
1.0 GPF/3.8LPF
Tornado Flush
8 psi (static)
9" x 6-3/4"
2-1/8"
12"
2-1/4"
One Year Limited Warranty
Vitreous china
C404CUF(G) - 60 lbs
ST403U - 31.5 lbs
C404CUF(G)
29-3/4"L x 14-3/4"W1 x 12"W2 x 17-1/2"H
ST403U
18"L x 9"W x 16"H
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
Ultra-low high efficiency toilets require a system with
adequate supplemental flows from other water usage
fixtures and a 4" ID drainline with minimum 2% slope
and maximum linear runs of 60ft.
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
These dimensions and specifications are subject to change without notice
#SS-01233 v.02
