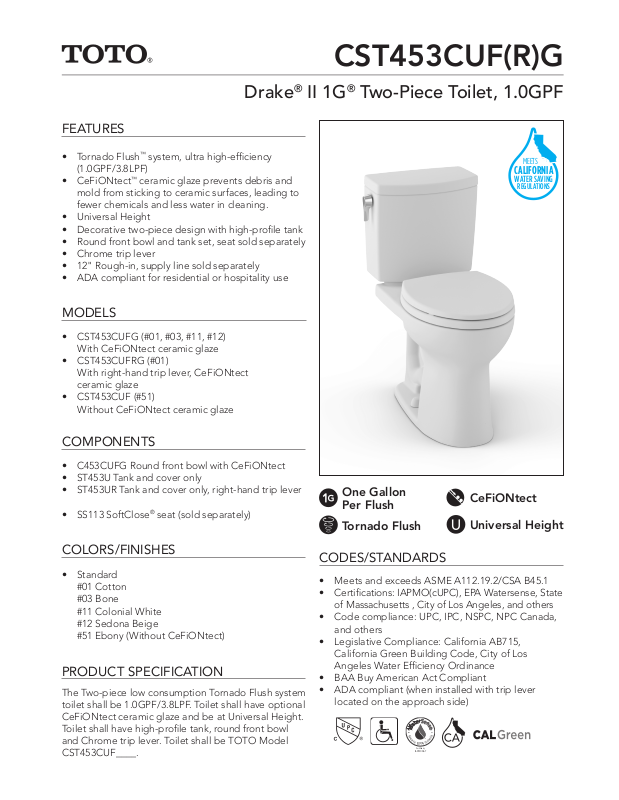

TOTO TOT5451 Specifications

Download

Page 1

FEATURES

IAPMO R&T

CST453CUF(R)G

Drake® II 1G® Two-Piece Toilet, 1.0GPF

• Tornado Flush™ system, ultra high-efciency (1.0GPF/3.8LPF)

• CeFiONtect™ ceramic glaze prevents debris and mold from sticking to ceramic surfaces, leading to fewer chemicals and less water in cleaning.

• Universal Height

• Decorative two-piece design with high-prole tank

• Round front bowl and tank set, seat sold separately

• Chrome trip lever

• 12" Rough-in, supply line sold separately

• ADA compliant for residential or hospitality use

MODELS

• CST453CUFG (#01, #03, #11, #12)

With CeFiONtect ceramic glaze

• CST453CUFRG (#01)

With right-hand trip lever, CeFiONtect

ceramic glaze

• CST453CUF (#51)

Without CeFiONtect ceramic glaze

COMPONENTS

MEETS

CALIFORNIA

WATER SAVING

REGULATIONS

• C453CUFG Round front bowl with CeFiONtect

• ST453U Tank and cover only

• ST453UR Tank and cover only, right-hand trip lever

• SS113 SoftClose® seat (sold separately)

COLORS/FINISHES

• Standard

#01 Cotton #03 Bone

#11 Colonial White #12 Sedona Beige #51 Ebony (Without CeFiONtect)

PRODUCT SPECIFICATION

The Two-piece low consumption Tornado Flush system toilet shall be 1.0GPF/3.8LPF. Toilet shall have optional CeFiONtect ceramic glaze and be at Universal Height.

Toilet shall have high-prole tank, round front bowl

and Chrome trip lever. Toilet shall be TOTO Model CST453CUF____.

One Gallon Per Flush

Tornado Flush

CeFiONtect

Universal Height

CODES/STANDARDS

• Meets and exceeds ASME A112.19.2/CSA B45.1

• Certications: IAPMO(cUPC), EPA Watersense, State

of Massachusetts , City of Los Angeles, and others

• Code compliance: UPC, IPC, NSPC, NPC Canada,

and others

• Legislative Compliance: California AB715,

California Green Building Code, City of Los

Angeles Water Efciency Ordinance

• BAA Buy American Act Compliant

• ADA compliant (when installed with trip lever located on the approach side)

Certiﬁed by

Page 2

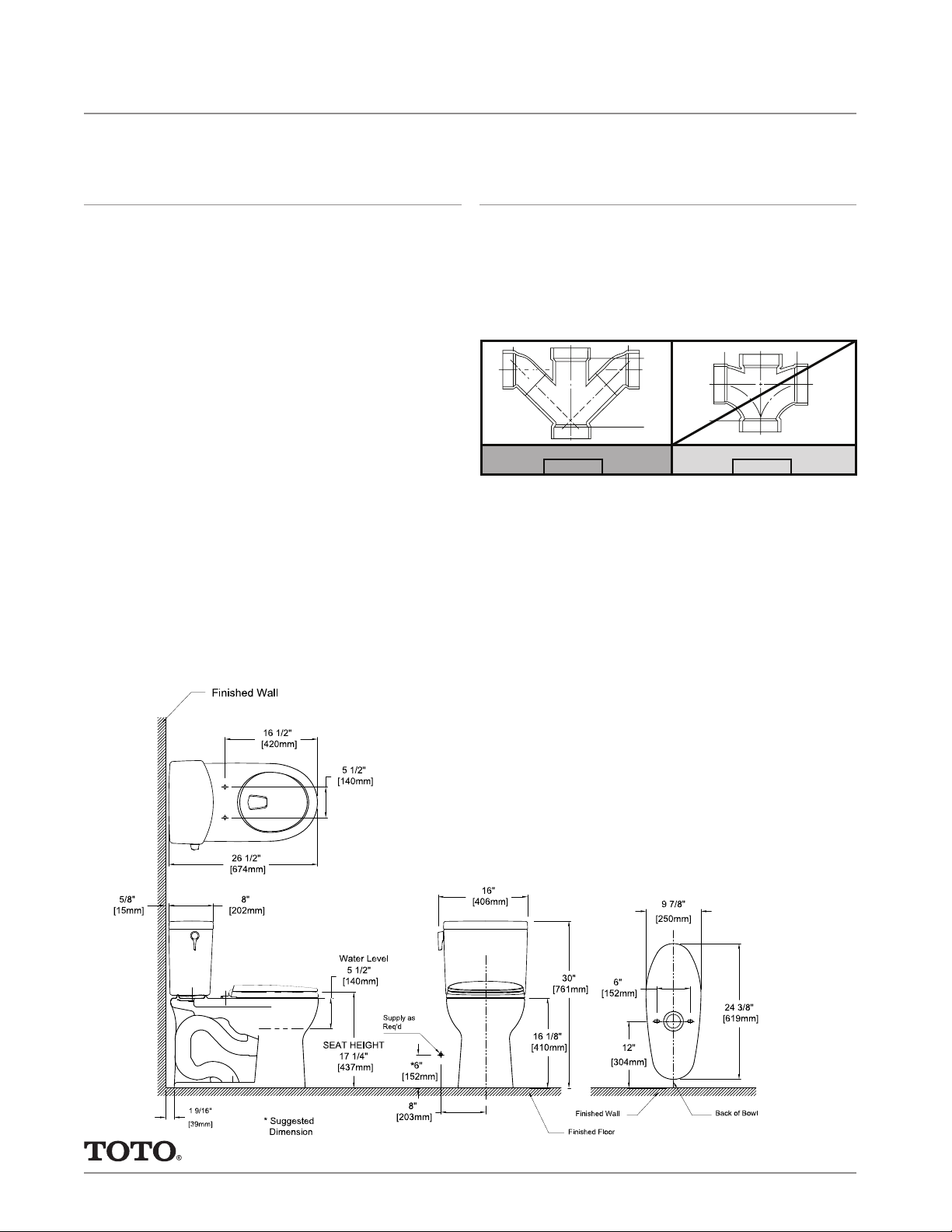

CST453CUF(R)G

Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend

YES NO

Drake® II 1G® Two-Piece Toilet, 1.0GPF

SPECIFICATIONS

• Water Use 1.0GPF/3.8LPF

• Flush System Tornado Flush

• Min. Water Pressure 8 psi (static)

• Water Surface 6-7/8" x 8-7/8"

• Trap Diameter 2-1/8"

• Rough-in 12"

• Trap Seal 2-1/8"

• Warranty One Year Limited Warranty

• Material Vitreous china

• Shipping Weight C453CUFG 59.0lbs. ST453U(R) 28lbs.

• Shipping Dimensions C453CUFG

27-1/2" L X 15-1/2" W1 X

11-1/4" W2 X 17-1/2" H

ST453U(R)

18" L X 9-1/2" W X 16-1/2" H

™

INSTALLATION NOTES

Back-to-Back Toilet Installations:

TOTO recommends the use of a nationally listed,

double sanitary tee-wye only, in vertical waste stacks, in accordance with the stipulations noted in the majority of nationally recognized plumbing codes.

To maintain adequate wall gap between the back of

the tank and wall, mount the oor ange at a nominal

12” rough-in distance.

Ultra-low high efciency toilets require a system with

adequate supplemental ows from other water usage xtures and a 4" ID drainline with minimum 2% slope

and maximum linear runs of 60ft.

Will comply with ADA when installed per Section 604 Water Closets and Toilet Compartments of the ADA 2010 Accessible Design Standard with seat height

between 17” to 19”, trip lever on approach side and ush actuation force of less than 5lbs.

Will comply with CSA B651 when installed per Clause

6.2.6 Toilets of the CSA 2012 Accessible Design Standard with seat height between 400mm to 460mm,

trip lever on approach side and ush actuation force of

less than 5lbs.

These dimensions and specications are subject to change without notice

SS-01128 v.06
