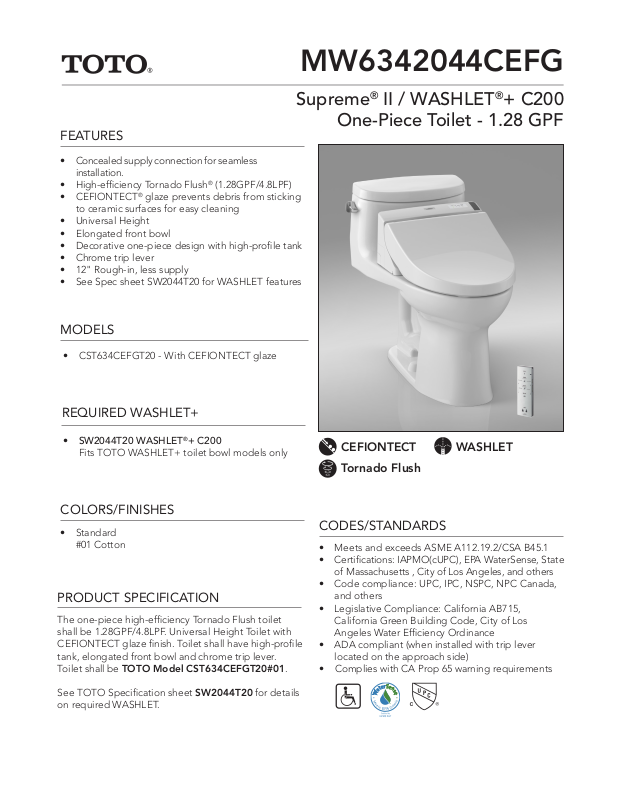

Page 1
FEATURES
• Concealed supply connection for seamless
installation.
• High-efficiency Tornado Flush® (1.28GPF/4.8LPF)
• CEFIONTECT® glaze prevents debris from sticking
to ceramic surfaces for easy cleaning
• Universal Height
• Elongated front bowl
• Decorative one-piece design with high-profile tank
• Chrome trip lever
• 12" Rough-in, less supply
• See Spec sheet SW2044T20 for WASHLET features
MODELS
• CST634CEFGT20 - With CEFIONTECT glaze
MW6342044CEFG
Supreme® II / WASHLET®+ C200
One-Piece Toilet - 1.28 GPF
REQUIRED WASHLET+
• SW2044T20 WASHLET®+ C200
Fits TOTO WASHLET+ toilet bowl models only
COLORS/FINISHES
• Standard
#01 Cotton
PRODUCT SPECIFICATION
The one-piece high-efficiency Tornado Flush toilet
shall be 1.28GPF/4.8LPF. Universal Height Toilet with
CEFIONTECT glaze finish. Toilet shall have high-profile
tank, elongated front bowl and chrome trip lever.
Toilet shall be TOTO Model CST634CEFGT20#01.
See TOTO Specification sheet SW2044T20 for details
on required WASHLET.
CEFIONTECT
WASHLET
Tornado Flush
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), EPA WaterSense, State
of Massachusetts , City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715,
California Green Building Code, City of Los
Angeles Water Efficiency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
• Complies with CA Prop 65 warning requirements
Page 2
MS6342044CEFG
*GCFI Outlet Min.
12" off floor
5 1/2"
[140mm]
15 3/8"
[391mm]
20 7/8"
[531mm]
7 3/8"
[188mm]
Elongated
The GFCI outlet needs to have120V, 10amps.
Supreme® II / WASHLET®+ C200 One-Piece Toilet - 1.28 GPF
SPECIFICATIONS
• Water Use 1.28 GPF/4.8LPF
• Flush System Tornado Flush
• Min. Water Pressure 8 psi (flowing)
• Water Surface 7-1/8" x 9-1/8"
• Trap Diameter 2-1/8"
• Rough-in 12"
• Trap Seal 2-1/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight CST634CEFGT20 104lbs.
SW2044T20 16.0lbs.
• Shipping Dimensions CST634CEFGT20
29-1/2" L x 18"W
x 19-1/4" H1 x 27-1/8" H
SW2044T20
23 1/2"X 19" X 9"
• See Spec sheet SW574T20 for Washlet details
®
2
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
YES NO
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
7 3/8"
[188mm]
5/16"
[8mm]
1 1/2"
[38mm]
*GCFI Outlet Min.
12" off floor
*The 3-prong cord on the Washlet is on the right side and is 4' long.
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
SS-01157 v.04
