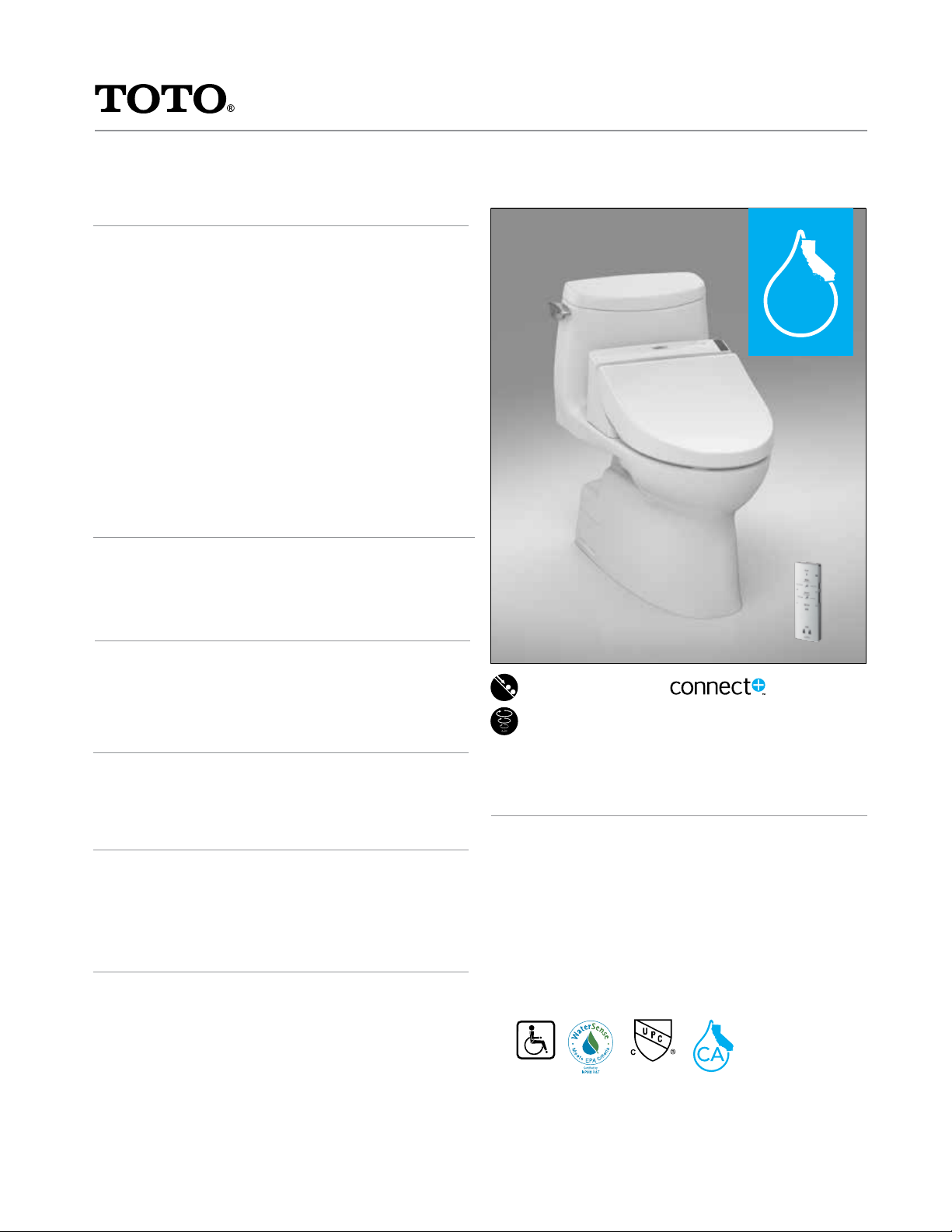

FEATURES

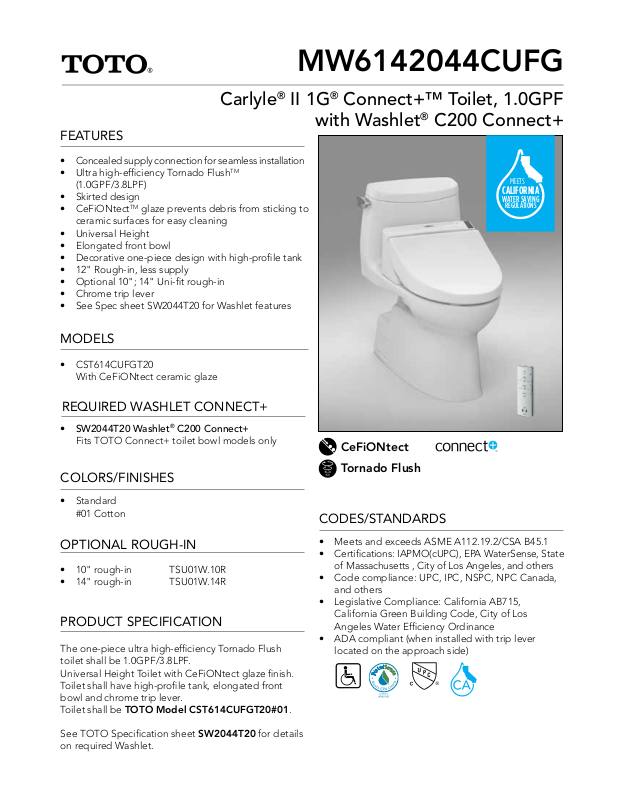

MW6142044CUFG
Carlyle® II 1G® Connect+™ Toilet, 1.0GPF
with Washlet® C200 Connect+
• Concealed supply connection for seamless installation
• Ultra high-efficiency Tornado Flush
(1.0GPF/3.8LPF)
• Skirted design
• CeFiONtectTM glaze prevents debris from sticking to
ceramic surfaces for easy cleaning
• Universal Height
• Elongated front bowl
• Decorative one-piece design with high-profile tank
• 12" Rough-in, less supply
• Optional 10"; 14" Uni-fit rough-in
• Chrome trip lever
• See Spec sheet SW2044T20 for Washlet features
TM
MODELS
• CST614CUFGT20
With CeFiONtect ceramic glaze
REQUIRED WASHLET CONNECT+
• SW2044T20 Washlet® C200 Connect+
Fits TOTO Connect+ toilet bowl models only
CeFiONtect
MEETS
CALIFORNIA
WATER SAVING
REGULATIONS
COLORS/FINISHES
• Standard
#01 Cotton
OPTIONAL ROUGH-IN
• 10" rough-in TSU01W.10R
• 14" rough-in TSU01W.14R
PRODUCT SPECIFICATION
The one-piece ultra high-efficiency Tornado Flush
toilet shall be 1.0GPF/3.8LPF.
Universal Height Toilet with CeFiONtect glaze finish.
Toilet shall have high-profile tank, elongated front
bowl and chrome trip lever.
Toilet shall be TOTO Model CST614CUFGT20#01.
See TOTO Specification sheet SW2044T20 for details
on required Washlet.
Tornado Flush
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), EPA WaterSense, State
of Massachusetts , City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715,
California Green Building Code, City of Los
Angeles Water Efficiency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
Page 2

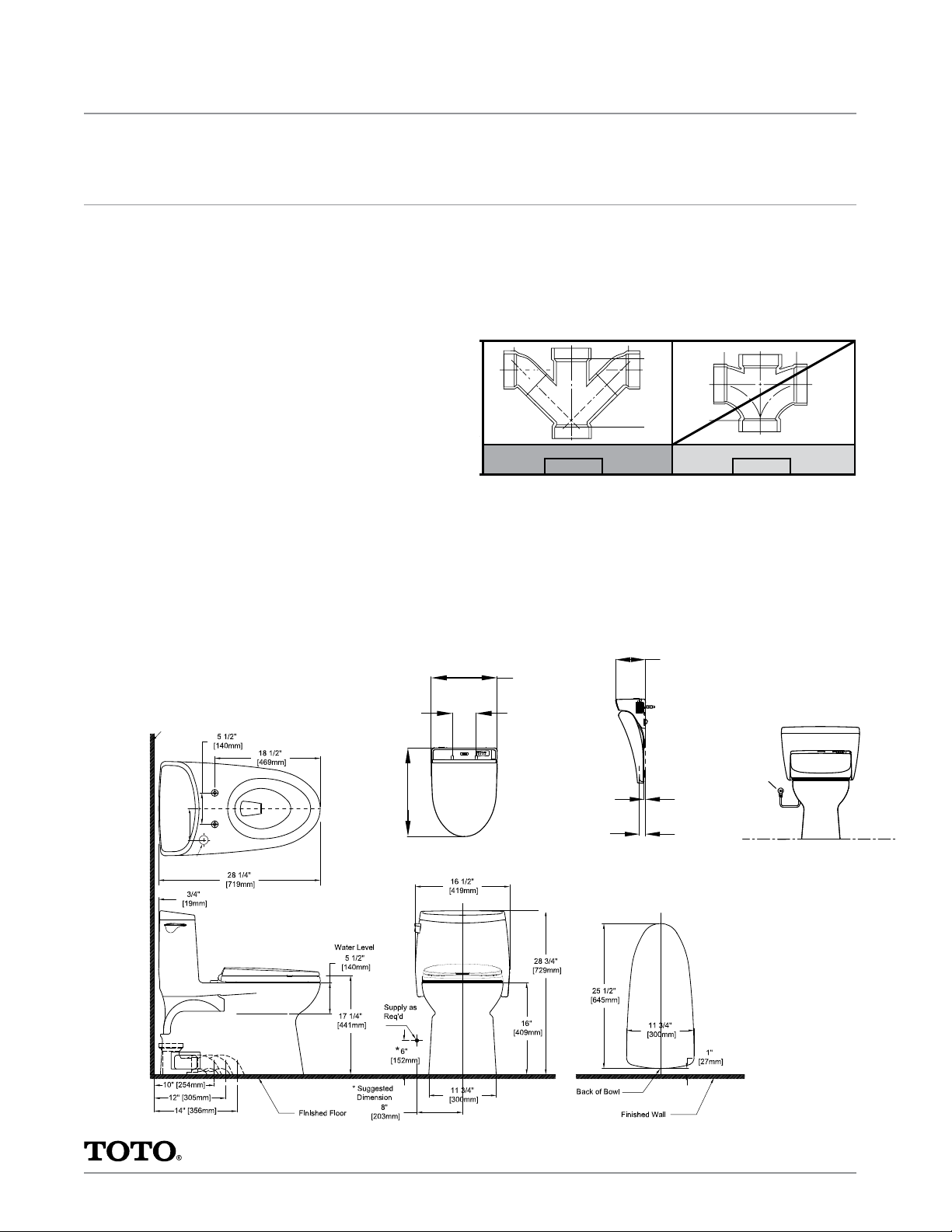

MW6142044CUFG
4 1/2
[117mm]
2 3/8
Diameter
*GCFI Outlet Min.
12" off floor
5 1/2"
[140mm]
15 3/8"
[391mm]
20 7/8"
[531mm]
7 3/8"
[188mm]
5/16"
[8mm]
1 1/2"
Elongated
The GFCI outlet needs to have120V, 10amps.
Carlyle® II 1G® Connect+™ Toilet, 1.0GPF with Washlet® C200 Connect+
SPECIFICATIONS
• Water Use 1.0 GPF/3.8LPF
• Flush System Tornado Flush
• Min. Water Pressure 8 psi (flowing)
• Water Surface 6-7/8" x 9-3/4"
• Trap Diameter 2-1/8"
• Rough-in 12"
• Trap Seal 2-1/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight CST614CUFGT20 110lbs
SW2044T20 16.0lbs.
• Shipping Dimensions CST614CUFGT20
32"L x 20"W x 17-3/4" H
28-3/4" H
SW2044T20
23" 1/2"X 19" X 9"
• See Spec sheet SW2044T20 for Washlet details
TM
1
2
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
x
YES NO
5/16"
[8mm]
1 1/2"
[38mm]
7 3/8"
[188mm]
*GCFI Outlet Min.
12" off floor
*The 3-prong cord on the Washlet is on the right side and is 4' long.
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
These dimensions and specifications are subject to change without notice
SS-01155 v.01
