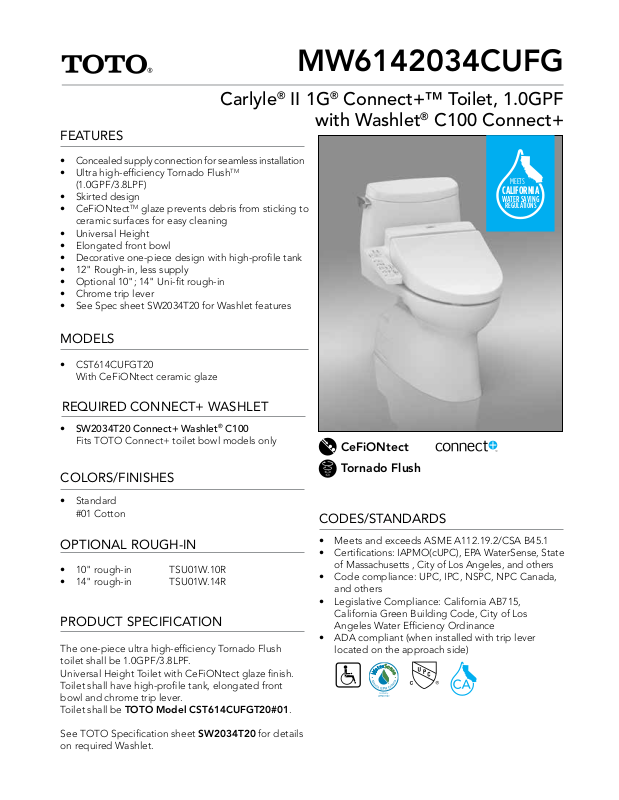

FEATURES
MW6142034CUFG
Carlyle® II 1G® Connect+™ Toilet, 1.0GPF
with Washlet® C100 Connect+
• Concealed supply connection for seamless installation
• Ultra high-efficiency Tornado Flush
(1.0GPF/3.8LPF)
• Skirted design
• CeFiONtectTM glaze prevents debris from sticking to
ceramic surfaces for easy cleaning
• Universal Height
• Elongated front bowl
• Decorative one-piece design with high-profile tank
• 12" Rough-in, less supply
• Optional 10"; 14" Uni-fit rough-in
• Chrome trip lever
• See Spec sheet SW2034T20 for Washlet features
TM
MODELS
• CST614CUFGT20
With CeFiONtect ceramic glaze
REQUIRED CONNECT+ WASHLET
• SW2034T20 Connect+ Washlet® C100
Fits TOTO Connect+ toilet bowl models only
CeFiONtect
MEETS
CALIFORNIA
WATER SAVING
REGULATIONS
COLORS/FINISHES
• Standard
#01 Cotton
OPTIONAL ROUGH-IN
• 10" rough-in TSU01W.10R
• 14" rough-in TSU01W.14R
PRODUCT SPECIFICATION
The one-piece ultra high-efficiency Tornado Flush
toilet shall be 1.0GPF/3.8LPF.
Universal Height Toilet with CeFiONtect glaze finish.
Toilet shall have high-profile tank, elongated front
bowl and chrome trip lever.
Toilet shall be TOTO Model CST614CUFGT20#01.
See TOTO Specification sheet SW2034T20 for details
on required Washlet.
Tornado Flush
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), EPA WaterSense, State
of Massachusetts , City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715,
California Green Building Code, City of Los
Angeles Water Efficiency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
Page 2
MW6142034CUFG
4 1/2
[117mm]
2 3/8
Diameter
*GCFI Outlet Min.
12" off floor
]
Carlyle® II 1G® Connect+™ Toilet, 1.0GPF with Washlet® C100 Connect+
SPECIFICATIONS
• Water Use 1.0 GPF/3.8LPF
• Flush System Tornado Flush
• Min. Water Pressure 8 psi (flowing)
• Water Surface 6-7/8" x 9-3/4"
• Trap Diameter 2-1/8"
• Rough-in 12"
• Trap Seal 2-1/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight CST614CUFGT20 110lbs
SW2034T20 16.0lbs.
• Shipping Dimensions CST614CUFGT20
32"L x 20"W x 17-3/4" H
28-3/4" H
SW2034T20
23" 1/2"X 20 1/2" X 9"
• See Spec sheet SW2034T20 for Washlet details
TM
1
2

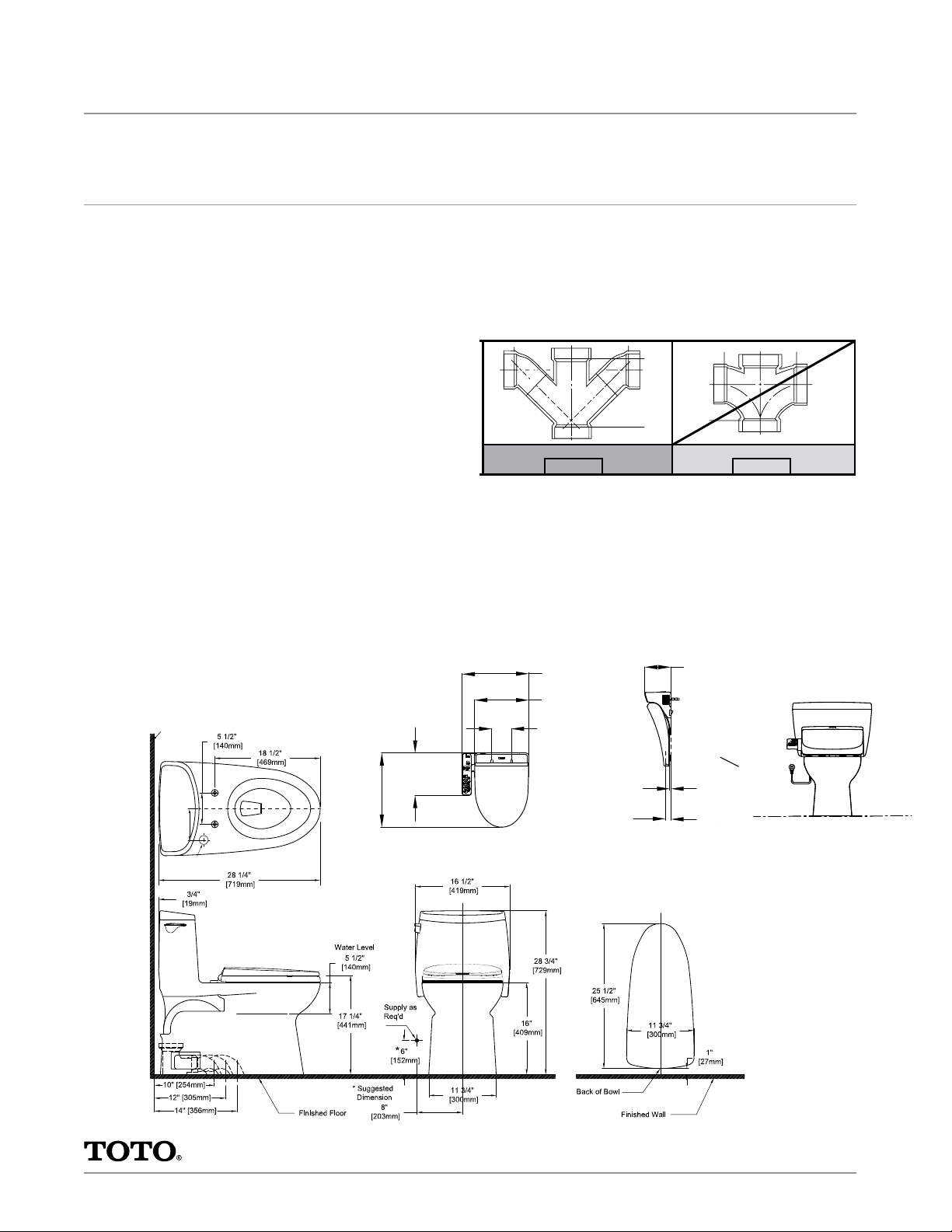

INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
x
YES NO
20 7/8"
[531mm]
Elongated
11 15/16"
[303mm]
18 13/16"
[478mm]
15 3/8"
[390mm]
5 1/2"
[140mm]
5/16"
[8mm]
1 1/2"
[38mm]
7 3/8"
[188mm
*GCFI Outlet Min.
12" off floor
*The 3-prong cord on the Washlet is on the right side and is 4' long.
The GFCI outlet needs to have120V, 10amps.
These dimensions and specifications are subject to change without notice
