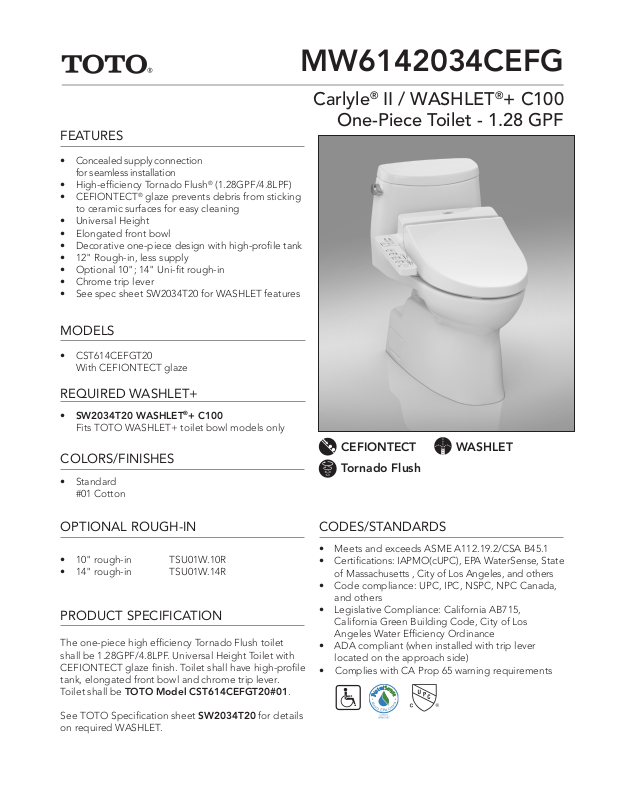

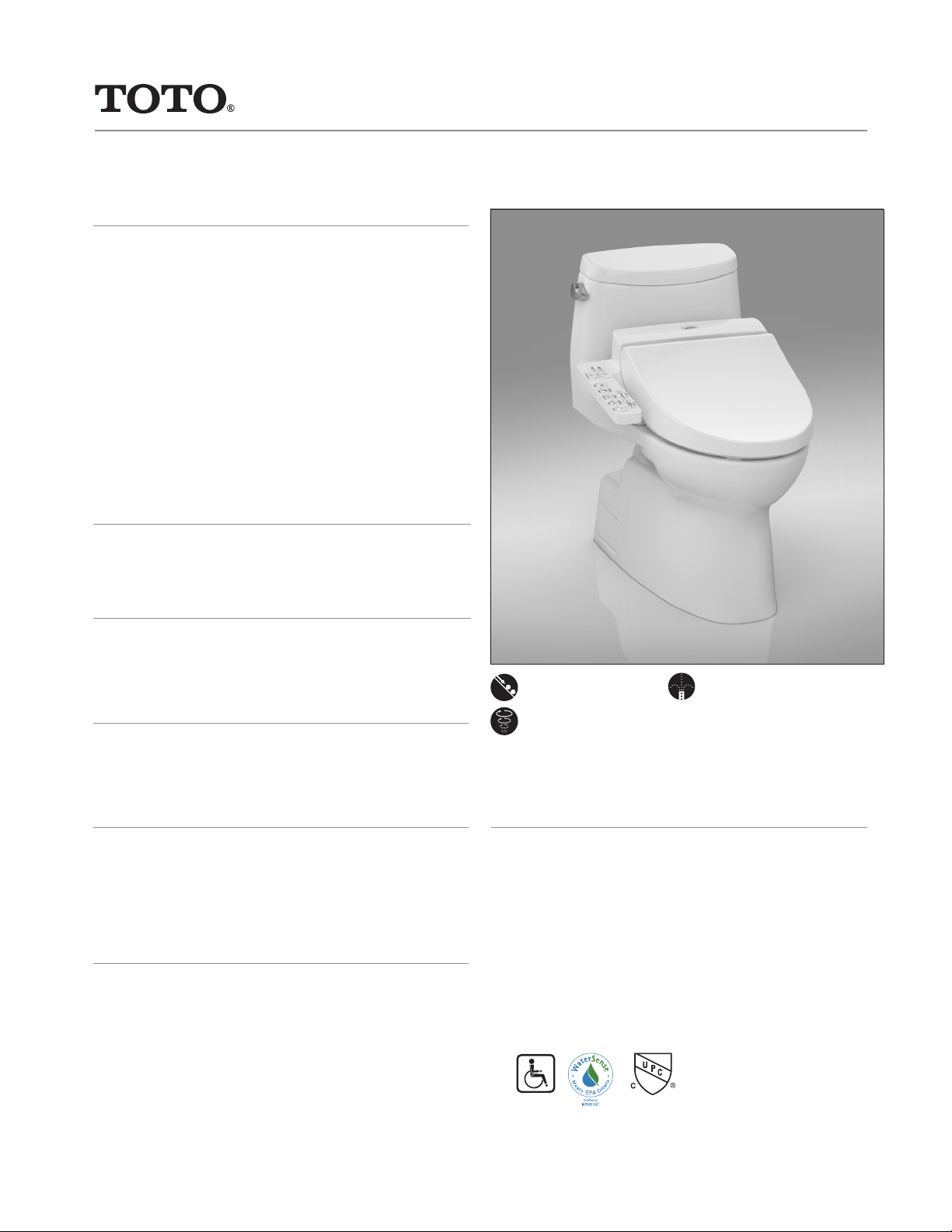

Page 1
FEATURES
• Concealed supply connection
for seamless installation
• High-efficiency Tornado Flush® (1.28GPF/4.8LPF)
• CEFIONTECT® glaze prevents debris from sticking
to ceramic surfaces for easy cleaning
• Universal Height
• Elongated front bowl
• Decorative one-piece design with high-profile tank
• 12" Rough-in, less supply
• Optional 10"; 14" Uni-fit rough-in
• Chrome trip lever
• See spec sheet SW2034T20 for WASHLET features
MODELS
• CST614CEFGT20
With CEFIONTECT glaze
MW6142034CEFG
Carlyle® II / WASHLET®+ C100
One-Piece Toilet - 1.28 GPF
REQUIRED WASHLET+
• SW2034T20 WASHLET®+ C100
Fits TOTO WASHLET+ toilet bowl models only
COLORS/FINISHES
• Standard
#01 Cotton
OPTIONAL ROUGH-IN
• 10" rough-in TSU01W.10R
• 14" rough-in TSU01W.14R
PRODUCT SPECIFICATION
The one-piece high efficiency Tornado Flush toilet
shall be 1.28GPF/4.8LPF. Universal Height Toilet with
CEFIONTECT glaze finish. Toilet shall have high-profile
tank, elongated front bowl and chrome trip lever.
Toilet shall be TOTO Model CST614CEFGT20#01.
CEFIONTECT
WASHLET
Tornado Flush
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), EPA WaterSense, State
of Massachusetts , City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715,
California Green Building Code, City of Los
Angeles Water Efficiency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
• Complies with CA Prop 65 warning requirements
See TOTO Specification sheet SW2034T20 for details
on required WASHLET.
Page 2
MW6142034CEFG
*GCFI Outlet Min.
12" off floor
]
Carlyle® II / WASHLET®+ C100 One-Piece Toilet - 1.28 GPF
SPECIFICATIONS
• Water Use 1.28 GPF/4.8LPF
• Flush System Tornado Flush
• Min. Water Pressure 8 psi (flowing)
• Water Surface 6-7/8" x 9-3/4"
• Trap Diameter 2-1/8"
• Rough-in 12"
• Trap Seal 2-1/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight CST614CEFGT20 110lbs.
SW2034T20 16.0lbs.
• Shipping Dimensions CST614CEFGT20
32"L x 20"W x 17-3/4" H1 x
28-3/4" H
SW2034T20
23 1/2"X 20 1/2" X 9"
• See Spec sheet SW2034T20 for Washlet details
®
2

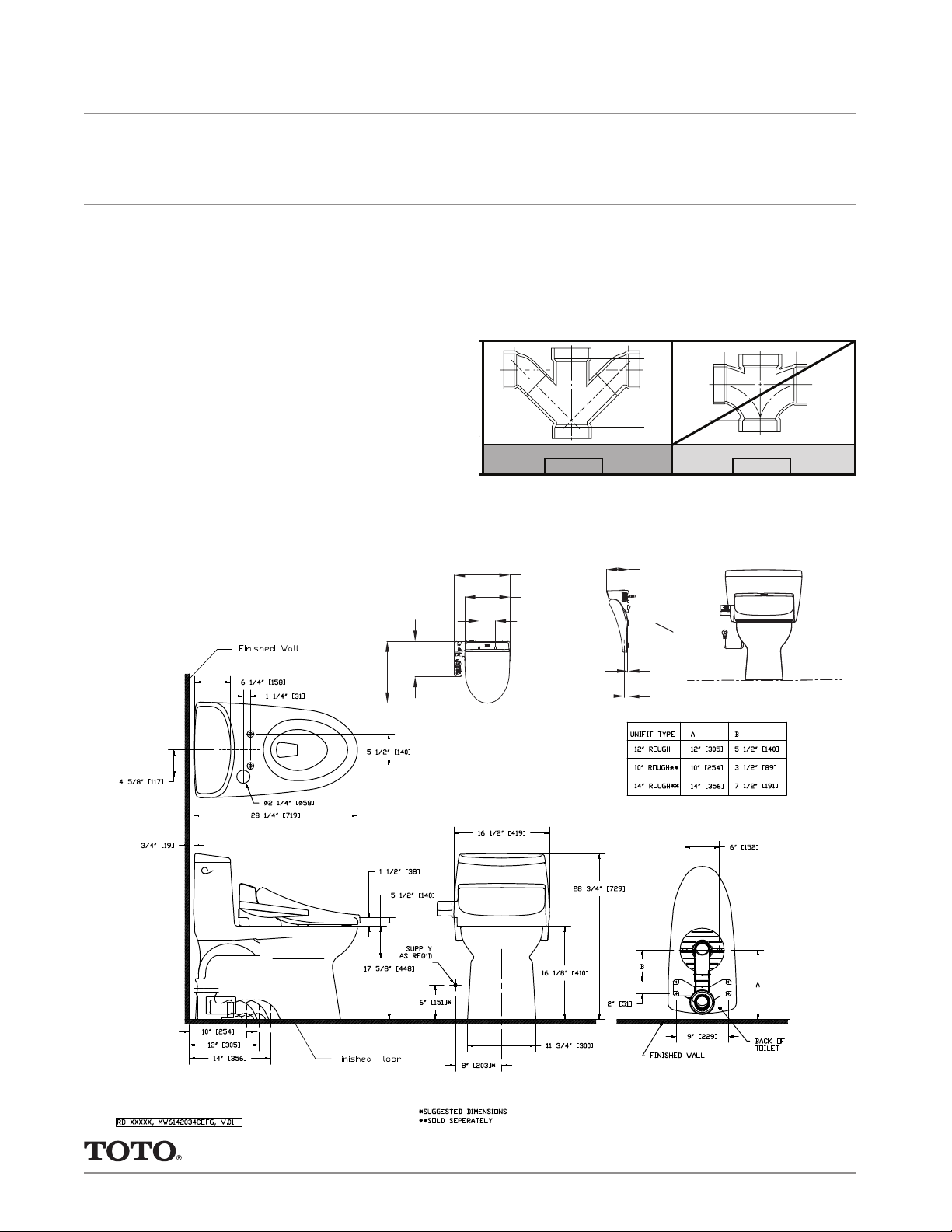

INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
YES NO
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
18 13/16"
[478mm]
15 3/8"
[390mm]
5 1/2"
[140mm]
[188mm
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
7 3/8"
*GCFI Outlet Min.
12" off floor
20 7/8"
[531mm]
Elongated
11 15/16"
[303mm]
5/16"
[8mm]
1 1/2"
[38mm]
*The 3-prong cord on the Washlet is on the right side and is 4' long.
The GFCI outlet needs to have120V, 10amps.
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
SS-01152 v.03
