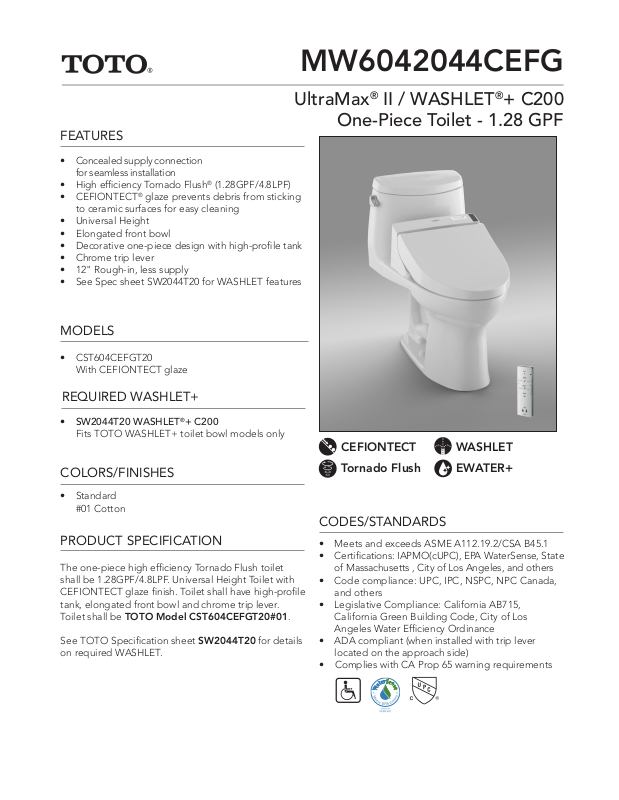

UltraMax® II / WASHLET®+ C200
FEATURES
• Concealed supply connection
for seamless installation
• High efficiency Tornado Flush® (1.28GPF/4.8LPF)
• CEFIONTECT® glaze prevents debris from sticking
to ceramic surfaces for easy cleaning
• Universal Height
• Elongated front bowl
• Decorative one-piece design with high-profile tank
• Chrome trip lever
• 12" Rough-in, less supply
• See Spec sheet SW2044T20 for WASHLET features
MODELS
• CST604CEFGT20
With CEFIONTECT glaze
MW6042044CEFG
One-Piece Toilet - 1.28 GPF
REQUIRED WASHLET+
• SW2044T20 WASHLET®+ C200
Fits TOTO WASHLET+ toilet bowl models only
COLORS/FINISHES
• Standard
#01 Cotton
PRODUCT SPECIFICATION
The one-piece high efficiency Tornado Flush toilet
shall be 1.28GPF/4.8LPF. Universal Height Toilet with
CEFIONTECT glaze finish. Toilet shall have high-profile
tank, elongated front bowl and chrome trip lever.
Toilet shall be TOTO Model CST604CEFGT20#01.
See TOTO Specification sheet SW2044T20 for details
on required WASHLET.
CEFIONTECT
Tornado Flush
WASHLET
EWATER+
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), EPA WaterSense, State
of Massachusetts , City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715,
California Green Building Code, City of Los
Angeles Water Efficiency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
• Complies with CA Prop 65 warning requirements
Page 2
MW6042044CEFG
*GCFI Outlet Min.
12" off floor
5 1/2"
[140mm]
15 3/8"
[391mm]
20 7/8"
[531mm]
7 3/8"
[188mm]
Elongated
UltraMax® II / WASHLET®+ C200 One-Piece Toilet - 1.28 GPF
SPECIFICATIONS
• Water Use 1.28 GPF/4.8LPF
• Flush System Tornado Flush
• Min. Water Pressure 8 psi (static)
• Water Surface 7-1/8" x 9-1/8"
• Trap Diameter 2-1/8"
• Rough-in 12"
• Trap Seal 2-1/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight CST604CEFGT20 99lbs.
SW2044T20 16.0lbs.
• Shipping Dimensions CST604CEFGT20
32"L x 20"W x 17-3/4" H1 x
28-3/4" H
SW2044T20
23 1/2"X 19" X 9"
• See Spec sheet SW2044T20 for Washlet details
®
2
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
5/16"
[8mm]
1 1/2"
[38mm]
7 3/8"
[188mm]
*GCFI Outlet Min.
12" off floor
*The 3-prong cord on the Washlet is on the right side and is 4' long.
The GFCI outlet needs to have120V, 10amps.
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
SS-01150 v.03
