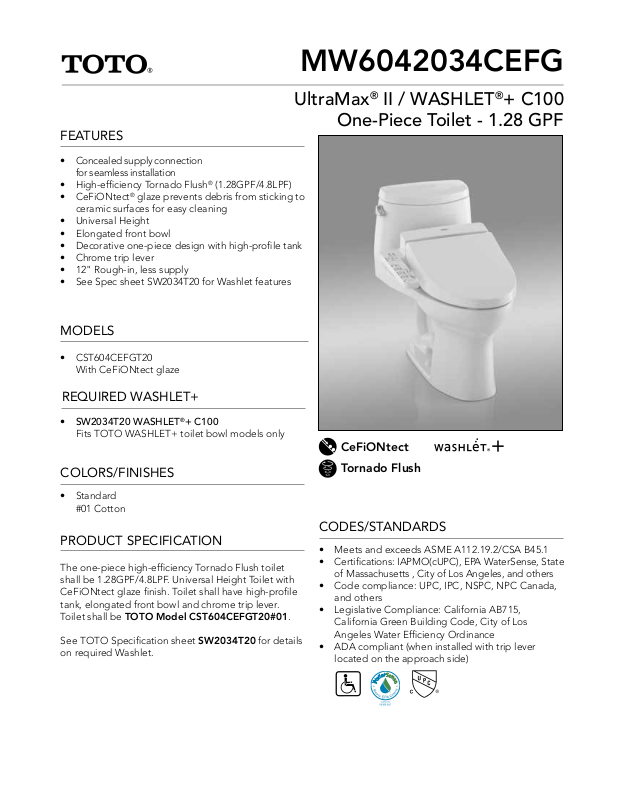

UltraMax® II / WASHLET®+ C100
FEATURES
• Concealed supply connection
for seamless installation
• High-efficiency Tornado Flush® (1.28GPF/4.8LPF)
• CeFiONtect® glaze prevents debris from sticking to
ceramic surfaces for easy cleaning
• Universal Height
• Elongated front bowl
• Decorative one-piece design with high-profile tank
• Chrome trip lever
• 12" Rough-in, less supply
• See Spec sheet SW2034T20 for Washlet features
MODELS
• CST604CEFGT20
With CeFiONtect glaze
MW6042034CEFG
One-Piece Toilet - 1.28 GPF
REQUIRED WASHLET+
• SW2034T20 WASHLET®+ C100
Fits TOTO WASHLET+ toilet bowl models only
COLORS/FINISHES
• Standard
#01 Cotton
PRODUCT SPECIFICATION
The one-piece high-efficiency Tornado Flush toilet
shall be 1.28GPF/4.8LPF. Universal Height Toilet with
CeFiONtect glaze finish. Toilet shall have high-profile
tank, elongated front bowl and chrome trip lever.
Toilet shall be TOTO Model CST604CEFGT20#01.
See TOTO Specification sheet SW2034T20 for details
on required Washlet.
CeFiONtect
Tornado Flush
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), EPA WaterSense, State
of Massachusetts , City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715,
California Green Building Code, City of Los
Angeles Water Efficiency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
Page 2

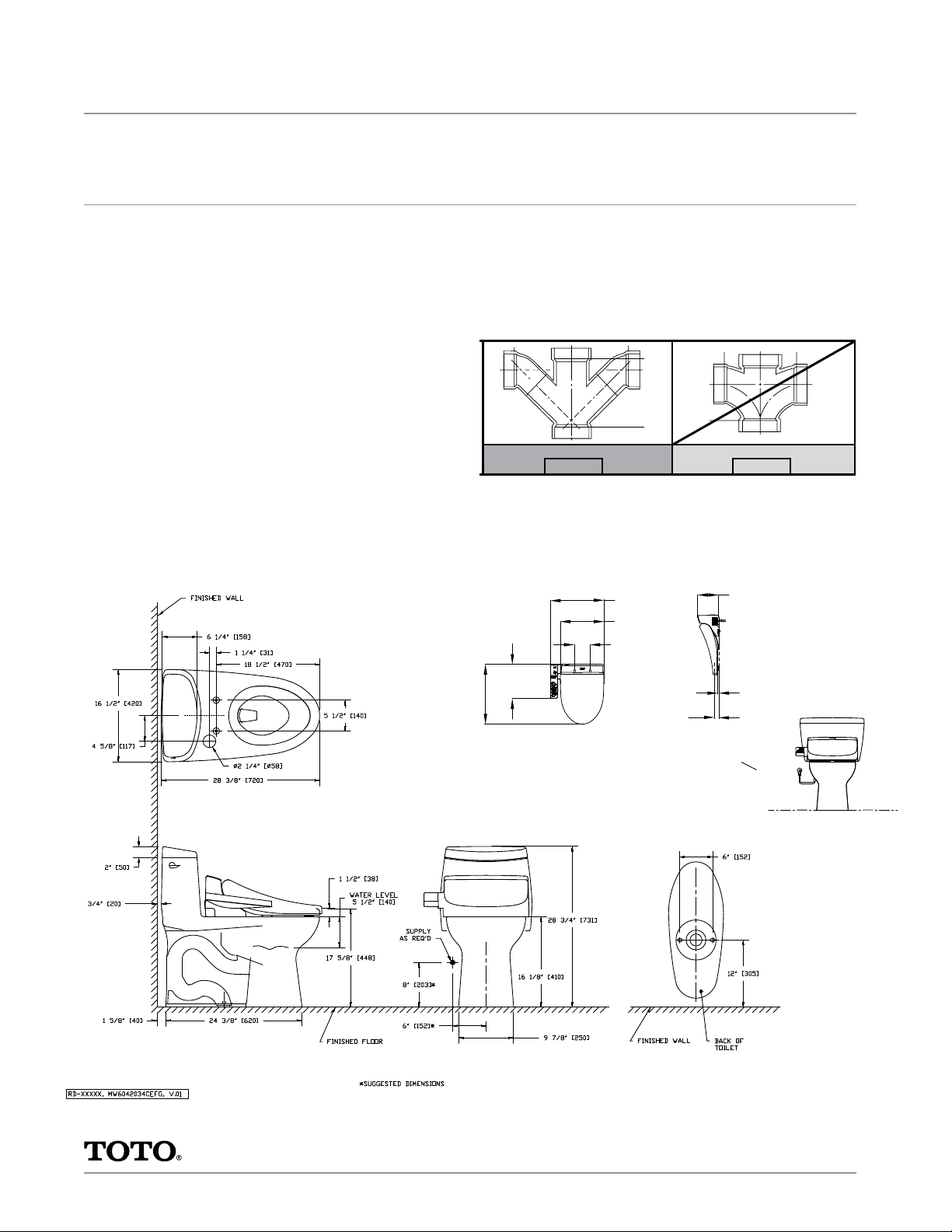

MW6042034CEFG
*GCFI Outlet Min.
12" off floor
The GFCI outlet needs to have120V, 10amps.
UltraMax® II / WASHLET®+ C100 One-Piece Toilet - 1.28 GPF
SPECIFICATIONS
• Water Use 1.28 GPF/4.8LPF
• Flush System Tornado Flush
• Min. Water Pressure 8 psi (static)
• Water Surface 7-1/8" x 9-1/8"
• Trap Diameter 2-1/8"
• Rough-in 12"
• Trap Seal 2-1/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight CST604CEFGT20 99lbs.
SW2034T20 16.0lbs.
• Shipping Dimensions CST604CEFGT20
32"L x 20"W x 17-3/4" H
28-3/4" H
SW2034T20
23 1/2"X 20 1/2" X 9"
• See Spec sheet SW2034T20 for Washlet details
®
1
2
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
x
YES NO
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
18 13/16"
[478mm]
15 3/8"
[390mm]
5 1/2"
[140mm]
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
7 3/8"
[188mm]
20 7/8"
[531mm]
Elongated
11 15/16"
[303mm]
5/16"
[8mm]
1 1/2"
[38mm]
*GCFI Outlet Min.
12" off floor
*The 3-prong cord on the Washlet is on the right side and is 4' long.
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
These dimensions and specifications are subject to change without notice
SS-01148 v.03
