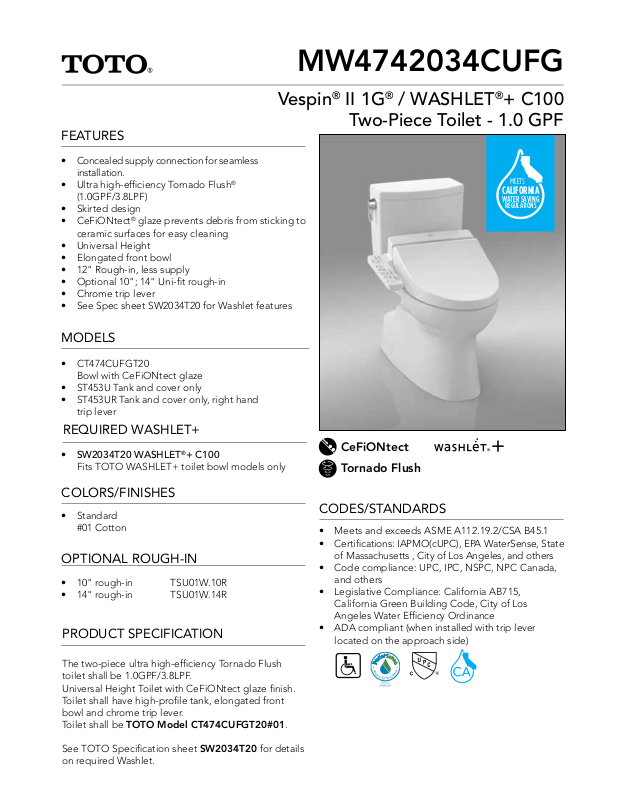

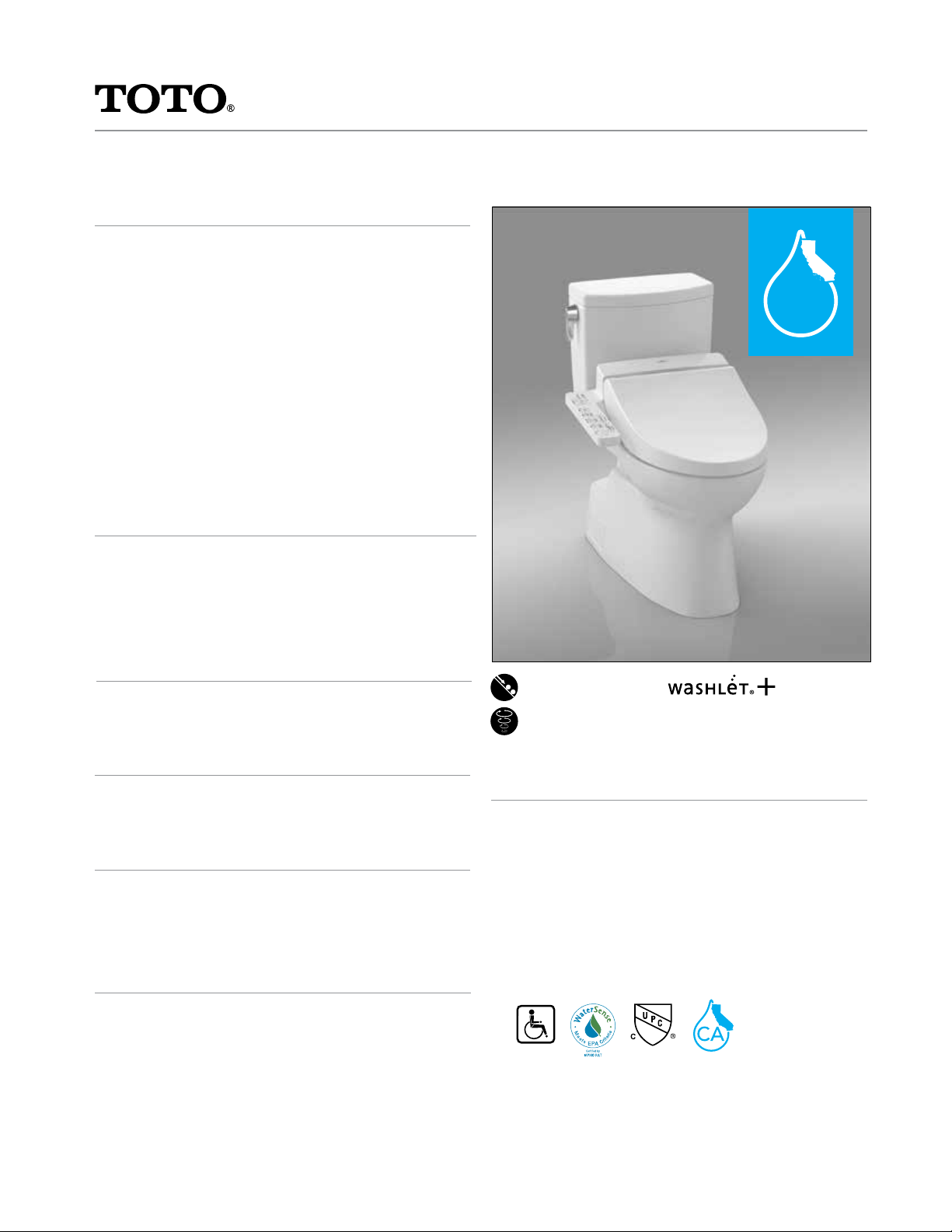

MW4742034CUFG
Vespin® II 1G® / WASHLET®+ C100
FEATURES
• Concealed supply connection for seamless
installation.
• Ultra high-efficiency Tornado Flush
(1.0GPF/3.8LPF)
• Skirted design
• CeFiONtect® glaze prevents debris from sticking to
ceramic surfaces for easy cleaning
• Universal Height
• Elongated front bowl
• 12" Rough-in, less supply
• Optional 10"; 14" Uni-fit rough-in
• Chrome trip lever
• See Spec sheet SW2034T20 for Washlet features
MODELS
®
Two-Piece Toilet - 1.0 GPF
MEETS
CALIFORNIA
WATER SAVING
REGULATIONS
• CT474CUFGT20
Bowl with CeFiONtect glaze
• ST453U Tank and cover only
• ST453UR Tank and cover only, right hand
trip lever
REQUIRED WASHLET+
• SW2034T20 WASHLET®+ C100
Fits TOTO WASHLET+ toilet bowl models only
COLORS/FINISHES
• Standard
#01 Cotton
OPTIONAL ROUGH-IN
• 10" rough-in TSU01W.10R
• 14" rough-in TSU01W.14R
PRODUCT SPECIFICATION
CeFiONtect
Tornado Flush
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), EPA WaterSense, State
of Massachusetts , City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715,
California Green Building Code, City of Los
Angeles Water Efficiency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
The two-piece ultra high-efficiency Tornado Flush
toilet shall be 1.0GPF/3.8LPF.
Universal Height Toilet with CeFiONtect glaze finish.
Toilet shall have high-profile tank, elongated front
bowl and chrome trip lever.
Toilet shall be TOTO Model CT474CUFGT20#01.
See TOTO Specification sheet SW2034T20 for details
on required Washlet.
Page 2
MW4742034CUFG
4 1/2
[117mm]
2 3/8
Diameter
*GCFI Outlet Min.
12" off floor
*
Vespin® II 1G® / WASHLET®+ C100 Two-Piece Toilet - 1.0GPF
SPECIFICATIONS
• Water Use 1.0 GPF/3.8LPF
• Flush System Tornado Flush
• Min. Water Pressure 8 psi (flowing)
• Water Surface 6-7/8" x 9-3/4"
• Trap Diameter 2-1/8"
• Rough-in 12" (10" or 14" optional)
• Trap Seal 2-1/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight CT474CUFGT20 57.3lbs.
ST453U(R) 28.0lbs.
SW2034T20 16.0lbs.
• Shipping Dimensions CT474CUFGT20
30-1/8"L x 16-3/4"W x 22"H
ST453U(R)
18" L X 9" W X 16" H
SW2034T20
23 1/2"X 20 1/2" X 9"
• See Spec sheet SW2034T20 for Washlet details
®
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
Ultra-low high efficiency toilets require a system with
adequate supplemental flows from other water usage
fixtures and a 4” ID drainline with minimum 2% slope
and maximum linear runs of 60ft.

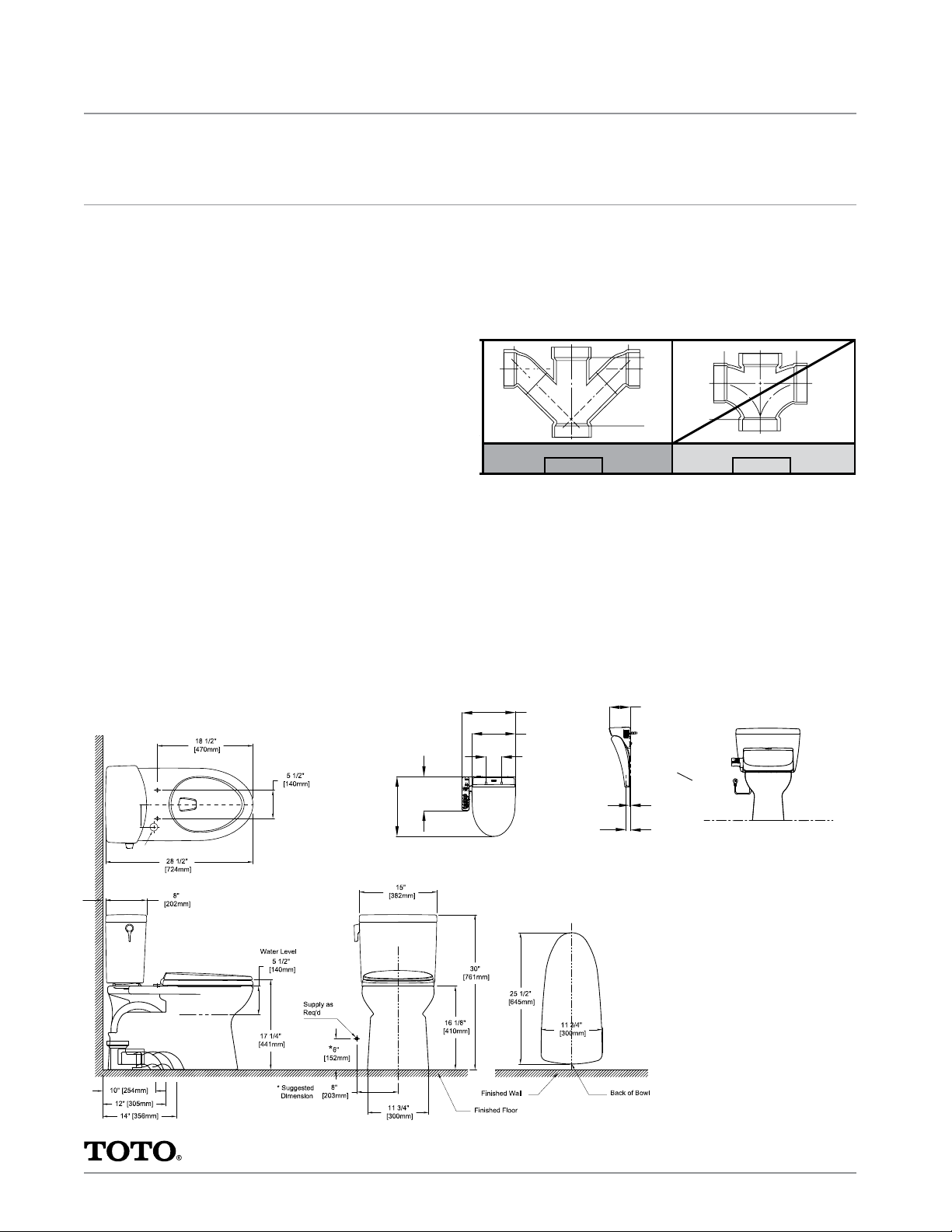

20 7/8"
[531mm]
Elongated
11 15/16"
[303mm]
18 13/16"
[478mm]
15 3/8"
[390mm]
5 1/2"
[140mm]
5/16"
[8mm]
1 1/2"
[38mm]
7 3/8"
[188mm]
GCFI Outlet Min.
12" off floor
*The 3-prong cord on the Washlet is on the right side and is 4' long.
The GFCI outlet needs to have120V, 10amps.
