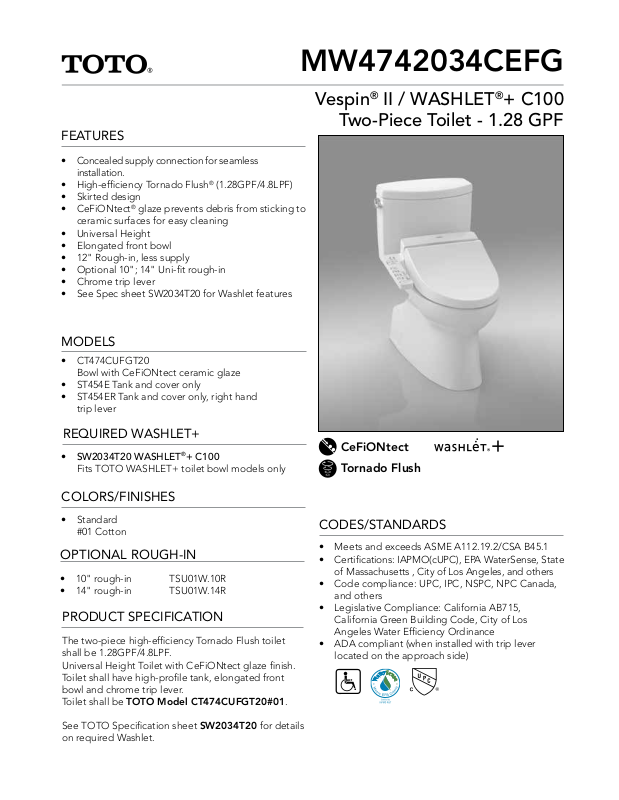

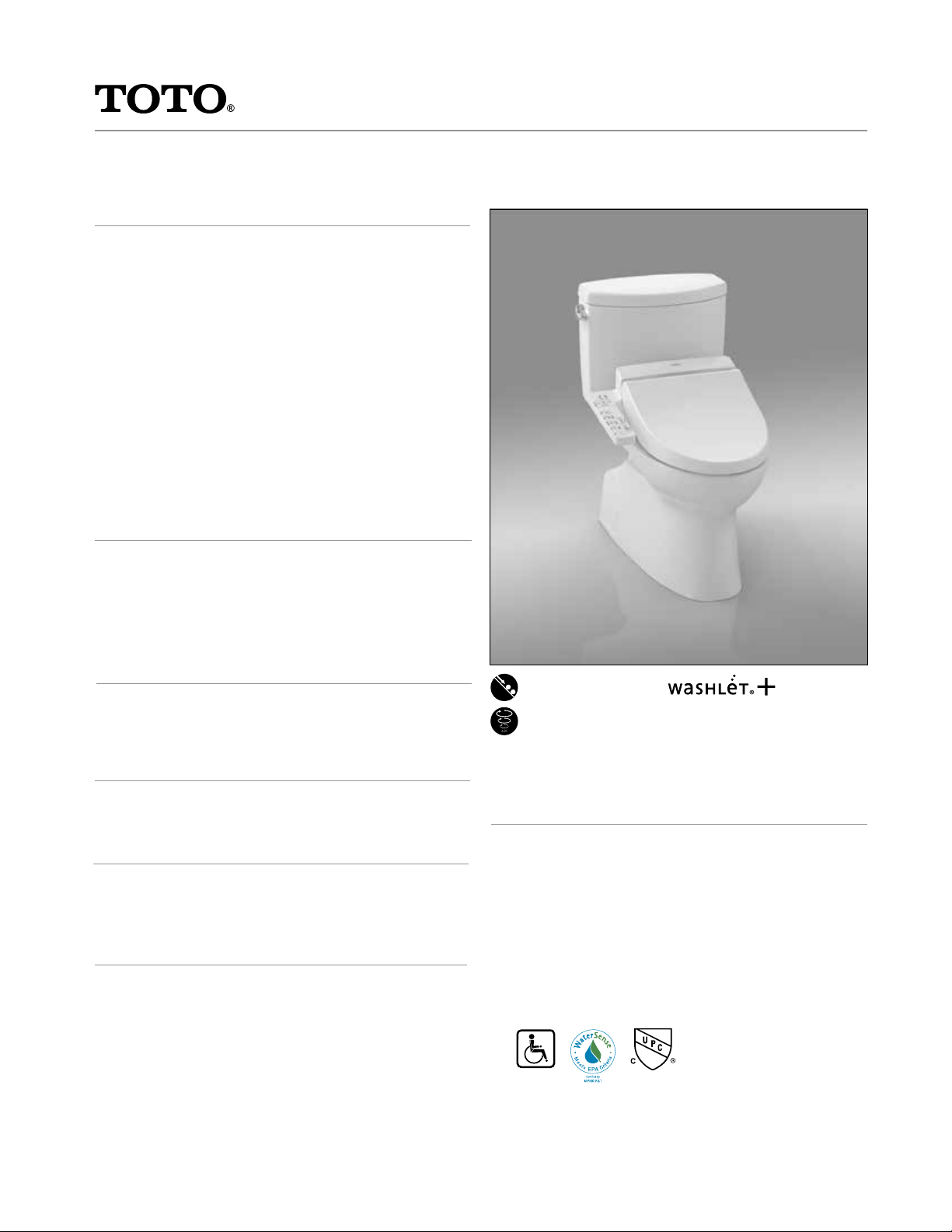

MW4742034CEFG
FEATURES
• Concealed supply connection for seamless
installation.
• High-efficiency Tornado Flush® (1.28GPF/4.8LPF)
• Skirted design
• CeFiONtect® glaze prevents debris from sticking to
ceramic surfaces for easy cleaning
• Universal Height
• Elongated front bowl
• 12" Rough-in, less supply
• Optional 10"; 14" Uni-fit rough-in
• Chrome trip lever
• See Spec sheet SW2034T20 for Washlet features
MODELS
• CT474CUFGT20
Bowl with CeFiONtect ceramic glaze
• ST454E Tank and cover only
• ST454ER Tank and cover only, right hand
trip lever
Vespin® II / WASHLET®+ C100
Two-Piece Toilet - 1.28 GPF
REQUIRED WASHLET+
• SW2034T20 WASHLET®+ C100
Fits TOTO WASHLET+ toilet bowl models only
COLORS/FINISHES
• Standard
#01 Cotton
OPTIONAL ROUGH-IN
• 10" rough-in TSU01W.10R
• 14" rough-in TSU01W.14R
PRODUCT SPECIFICATION
The two-piece high-efficiency Tornado Flush toilet
shall be 1.28GPF/4.8LPF.
Universal Height Toilet with CeFiONtect glaze finish.
Toilet shall have high-profile tank, elongated front
bowl and chrome trip lever.
Toilet shall be TOTO Model CT474CUFGT20#01.
See TOTO Specification sheet SW2034T20 for details
on required Washlet.
CeFiONtect
Tornado Flush
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), EPA WaterSense, State
of Massachusetts , City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715,
California Green Building Code, City of Los
Angeles Water Efficiency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
Page 2
MW4742034CEFG
*GCFI Outlet Min.
12" off floor
*
The GFCI outlet needs to have120V, 10amps.
Vespin® II / WASHLET®+ C100 Two-Piece Toilet - 1.28 GPF
SPECIFICATIONS
• Water Use 1.28 GPF/4.8LPF
• Flush System Tornado Flush
• Min. Water Pressure 8 psi (flowing)
• Water Surface 6-7/8" x 9-3/4"
• Trap Diameter 2-1/8"
• Rough-in 12" (10" or 14" optional)
• Trap Seal 2-1/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight CT474CUFGT20 75lbs.
ST454E(R) 31.5lbs.
SW2034T20 16.0lbs.
• Shipping Dimensions CT474CUFGT20
30-1/8"L x 16-3/4"W x 22"H
ST454E(R)
18" L X 9" W X 16" H
SW2034T20
23 1/2"X 20 1/2" X 9"
• See Spec sheet SW2034T20 for Washlet details
®
20 7/8"
[531mm]
Elongated

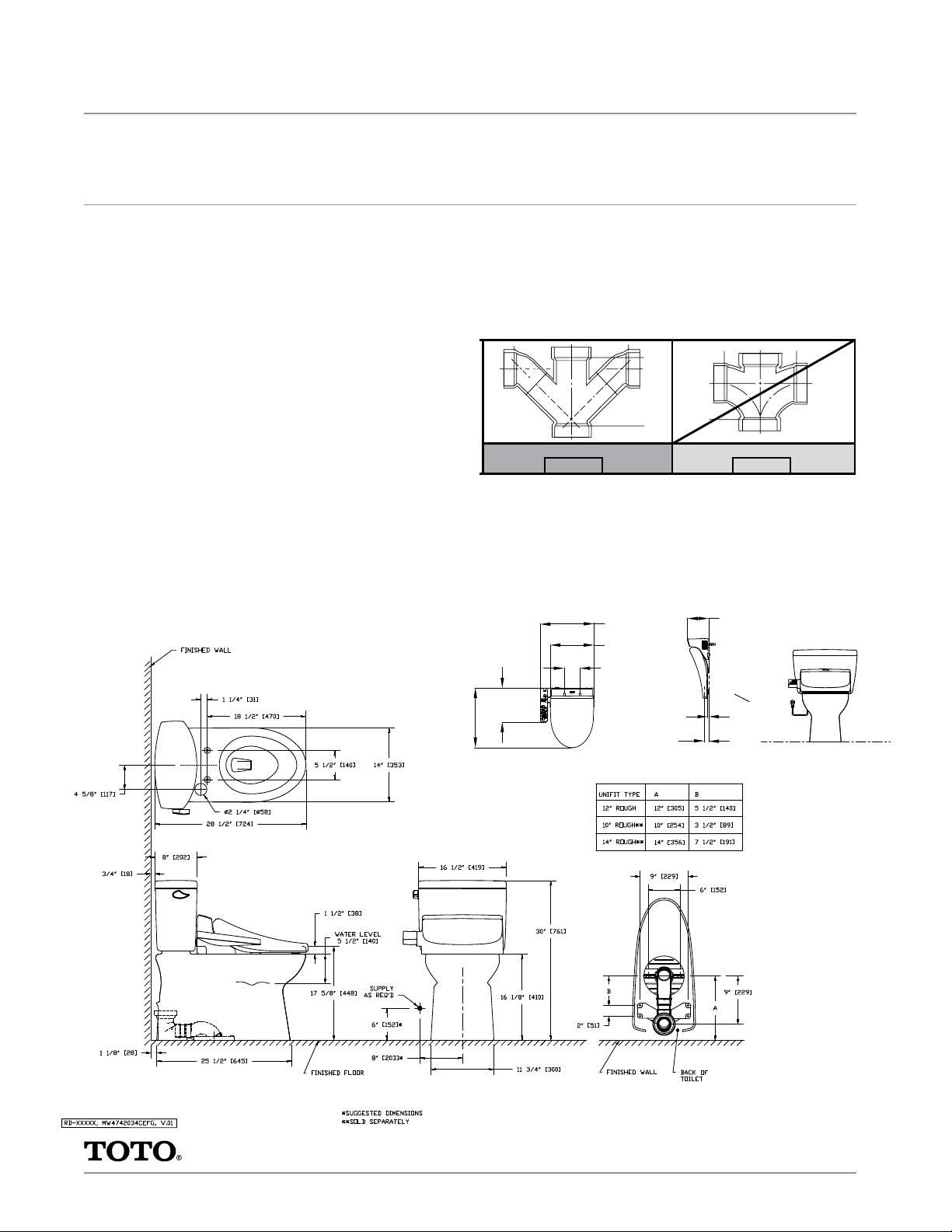

INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
5/16"
[8mm]
1 1/2"
[38mm]
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
7 3/8"
[188mm]
GCFI Outlet Min.
12" off floor
*The 3-prong cord on the Washlet is on the right side and is 4' long.
YES NO
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
18 13/16"
[478mm]
15 3/8"
[390mm]
5 1/2"
[140mm]
11 15/16"
[303mm]
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
These dimensions and specifications are subject to change without notice
SS-01144 v.03
