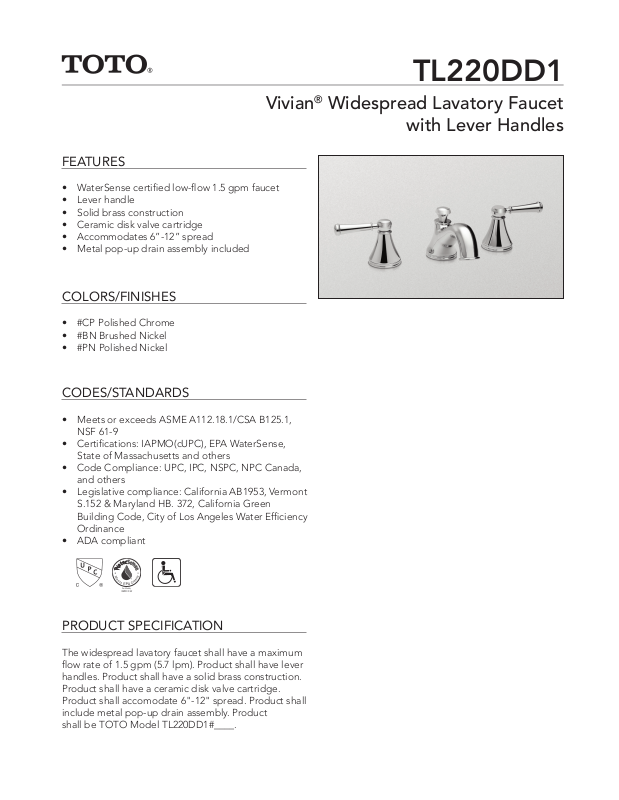

Vivian® Widespread Lavatory Faucet
FEATURES
• WaterSense certied low-ow 1.5 gpm faucet
• Lever handle
• Solid brass construction
• Ceramic disk valve cartridge
• Accommodates 6”-12” spread
• Metal pop-up drain assembly included
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
TL220DD1
with Lever Handles
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1,
NSF 61-9
• Certications: IAPMO(cUPC), EPA WaterSense,
State of Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative compliance: California AB1953, Vermont
S.152 & Maryland HB. 372, California Green
Building Code, City of Los Angeles Water Efciency
Ordinance
• ADA compliant
Certified by
PRODUCT SPECIFICATION
The widespread lavatory faucet shall have a maximum
ow rate of 1.5 gpm (5.7 lpm). Product shall have lever
handles. Product shall have a solid brass construction.
Product shall have a ceramic disk valve cartridge.
Product shall accomodate 6"-12" spread. Product shall
include metal pop-up drain assembly. Product
shall be TOTO Model TL220DD1#____.
Page 2
TL220DD1
SPECIFICATIONS
Vivian® Widespread Lavatory Faucet with Lever Handles
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Dimensions 13-1/2"L x 7-1/2"W x
4-3/4"H
• Shipping Weight 8.2 lbs.
• Maximum Flow Rate 1.5 gpm (5.7 lpm)
Close Close
0 100 200 300 400 500
2.5
2.0
1.5
1.0
Flow rate (gpm)
0.5
0.0
0 20 40 60 80
Pressure (kPa)
Pressure (psi)
9.5
7.6
Flow rate (lpm)
5.7
3.8
1.9
0.0
3-3/16"
81mm
1-3/4" [44mm] Max.
Deck Thickness
4-5/16"
90
109mm
1/2" NPSM
Open
2-7/8"
HOT
6-12" [152-305mm]
73mm
1-3/8"-1-1/2"
[35-39mm]
Hole
Open
COLD
90
6-3/4"
172mm
5-3/16"
131mm
1-1/4"-1-3/8" [32-35mm]
Hole
3-3/8"
86mm
2-1/8"
1-5/16"
54mm
34mm
22
1-1/4"
32mm
1/2" NPSM
1-5/8"
41mm
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
#SS-00837, v.05
