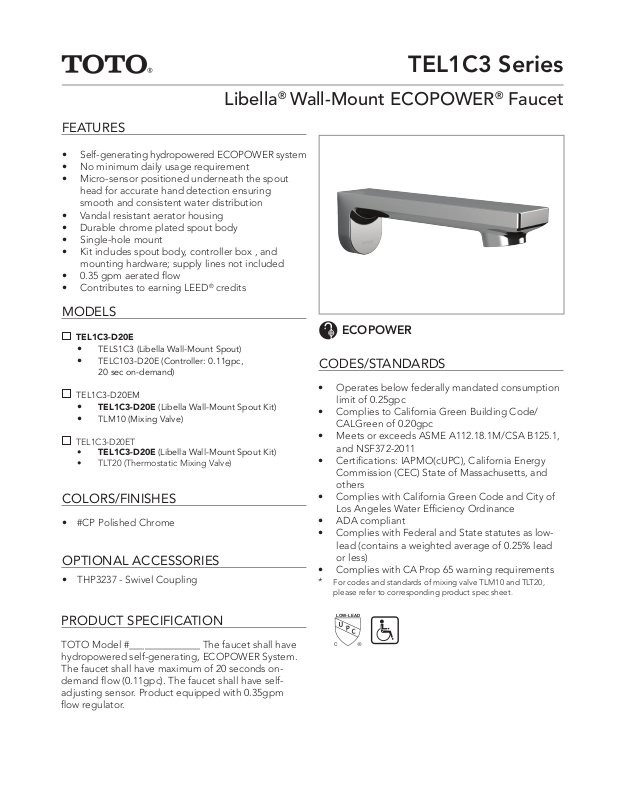

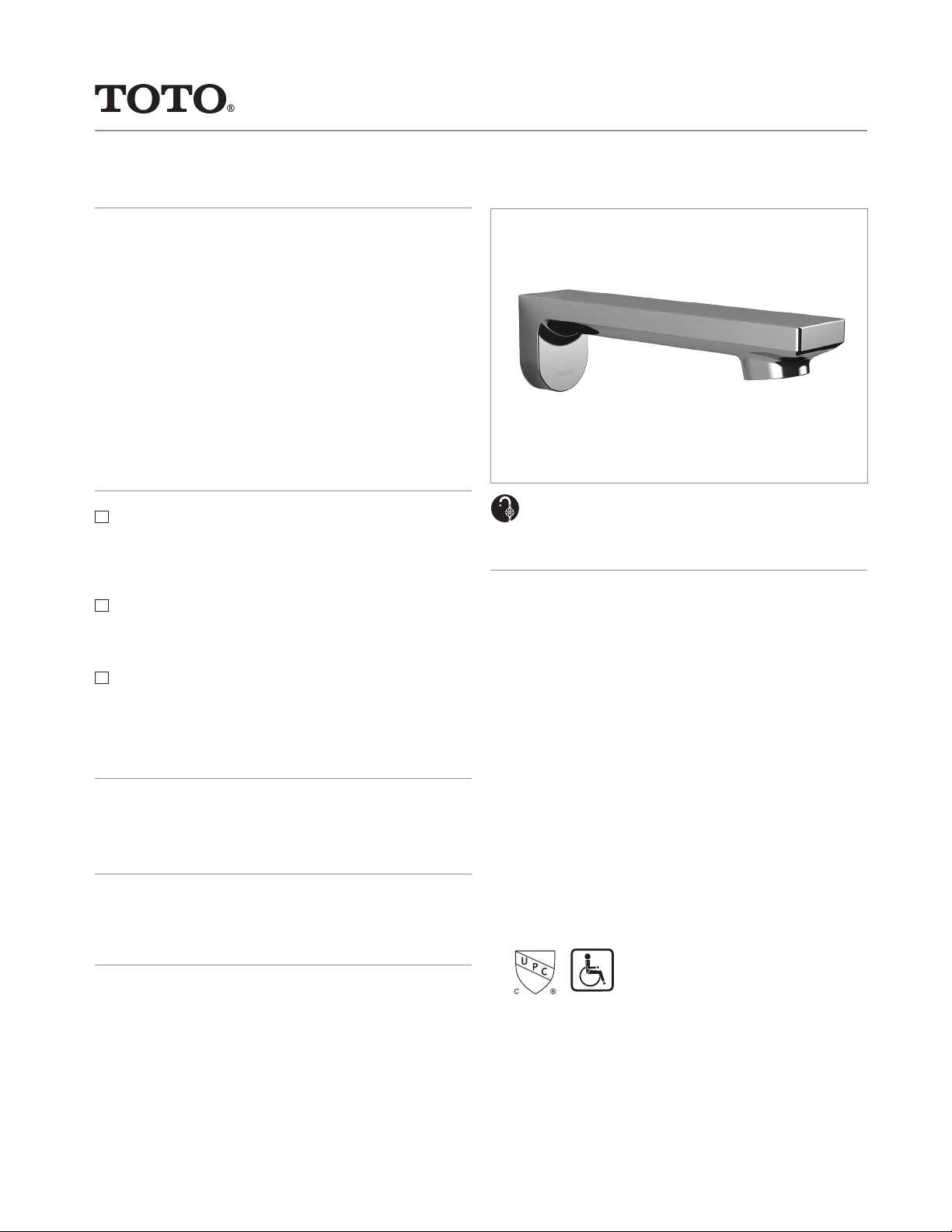

TEL1C3 Series
LOW-LEAD
Libella
®
Wall-Mount ECOPOWER
FEATURES
• Self-generating hydropowered ECOPOWER system
• No minimum daily usage requirement
• Micro-sensor positioned underneath the spout
head for accurate hand detection ensuring
smooth and consistent water distribution
• Vandal resistant aerator housing
• Durable chrome plated spout body
• Single-hole mount
• Kit includes spout body, controller box , and
mounting hardware; supply lines not included
• 0.35 gpm aerated ow
• Contributes to earning LEED® credits
MODELS
TEL1C3-D20E
• TELS1C3 (Libella Wall-Mount Spout)
• TELC103-D20E (Controller: 0.11gpc,
20 sec on-demand)
TEL1C3-D20EM
• TEL1C3-D20E (Libella Wall-Mount Spout Kit)
• TLM10 (Mixing Valve)
TEL1C3-D20ET
• TEL1C3-D20E (Libella Wall-Mount Spout Kit)
• TLT20 (Thermostatic Mixing Valve)
COLORS/FINISHES
• #CP Polished Chrome
OPTIONAL ACCESSORIES
• THP3237 - Swivel Coupling
®
Faucet
ECOPOWER
CODES/STANDARDS
• Operates below federally mandated consumption
limit of 0.25gpc
• Complies to California Green Building Code/
CALGreen of 0.20gpc
• Meets or exceeds ASME A112.18.1M/CSA B125.1,
and NSF372-2011
• Certifications: IAPMO(cUPC), California Energy
Commission (CEC) State of Massachusetts, and
others
• Complies with California Green Code and City of
Los Angeles Water Efficiency Ordinance
• ADA compliant
• Complies with Federal and State statutes as lowlead (contains a weighted average of 0.25% lead
or less)
• Complies with CA Prop 65 warning requirements
* For codes and standards of mixing valve TLM10 and TLT20,
please refer to corresponding product spec sheet.
PRODUCT SPECIFICATION
TOTO Model #______________ The faucet shall have
hydropowered self-generating, ECOPOWER System.
The faucet shall have maximum of 20 seconds ondemand flow (0.11gpc). The faucet shall have selfadjusting sensor. Product equipped with 0.35gpm
flow regulator.
Page 2

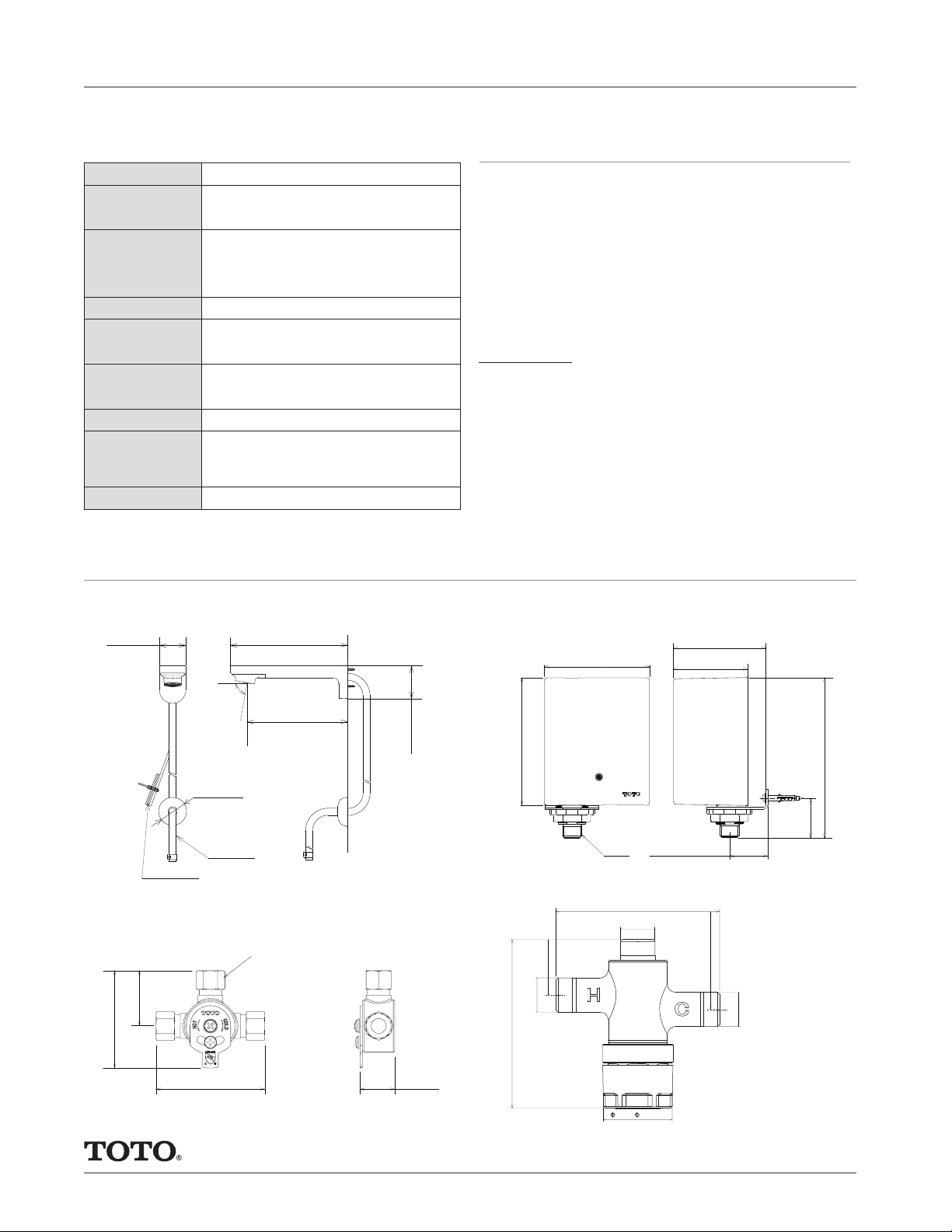

TEL1C3 Series
Controllers
3-5/8”(94mm)
G1/2 compatible with ½ NPSM
3-15/16” (100mm)
4-1/16” (102.9mm)
Libella
SPECIFICATIONS
Power Supply ECOPOWER
Sensor Detection
Range
Water Supply
Pressure
Water Supply
Inlet Temperature
Range
Ambient
Temperature
Humidty
Flow Rate
Warranty
*Gallons per cycle (gpc) is the amount of water per usage cycle.
**On-demand refers to the way in which the water is dispersed (i.e.; water is only dispersed when the sensor is activated by the user as needed).
5-1/8" - 7-7/8" (130 - 200mm)
Sensor is self-adjusting
Min Flowing) Pressure: 15 psi (100kPa)
Max (Static) Pressure: 80 psi (551kPa)
G1/2 (1/2 NPSM compatible)
32-110°F(0-42°C)
32-104°F(0-40°C)
Max. 90% RH
0.11 gpc* - max 20 second On-Demand**
(0.11 gpc = 0.35 gpm x 20/60 sec)
Equipped with 0.35 gpm flow control
Three years limited
®
Wall-Mount ECOPOWER
NOTE
Following the federal mandate for water efficiency
outlined in the Environmental Protection Act of 1992,
faucets can be rated for water consumption based on
two categories: Flow Rate and Water Consumption.
TOTO uses the water consumption standard because
it is the most accurate method of measuring water
use. TOTO faucets also comply with the CALGreen
Guideline of water usage.
Water Saving
On-Demand [20 sec.] faucet (0.11gpc)
Federal Standard (0.25gpc) – 56% less
CAL Green (0.20gpc) – 45% less
®
Faucet
PRODUCT DIMENSIONS
Libella Wall-Mount
1-5/8”
(42mm)
Ø2-3/16”
(Ø55mm)
L=34-1/4”
L=43-5/16”
(L=1100mm)
(L=870mm)
Available Mixing Valves
1-7/16”
(36mm)
7-15/16”
(202mm)
80°
6-3/4”
(170mm)
3/8 COMPRESSION
Finished wall
2-3/8”
(60mm)
Controller
TELC103
5-5/8”(142mm)
G1/2
4-5/8”(117mm)
1-5/16” (34mm)
G1/2
1-11/16” (42mm)
G1/2
3-5/16”(83mm)
1-11/16” (42.8mm)
G1/2
7” (178mm)
1-3/4”
(44mm)
2-1/2” (63mm)
2-13/16” (71mm)
7/8”
(23mm)
Hot/Cold Mixing Tee (TLM10)
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
1-5/8” ( 42mm)
Thermostatic
Mixing Valve (TLT20)
#SS-01397, v.01
