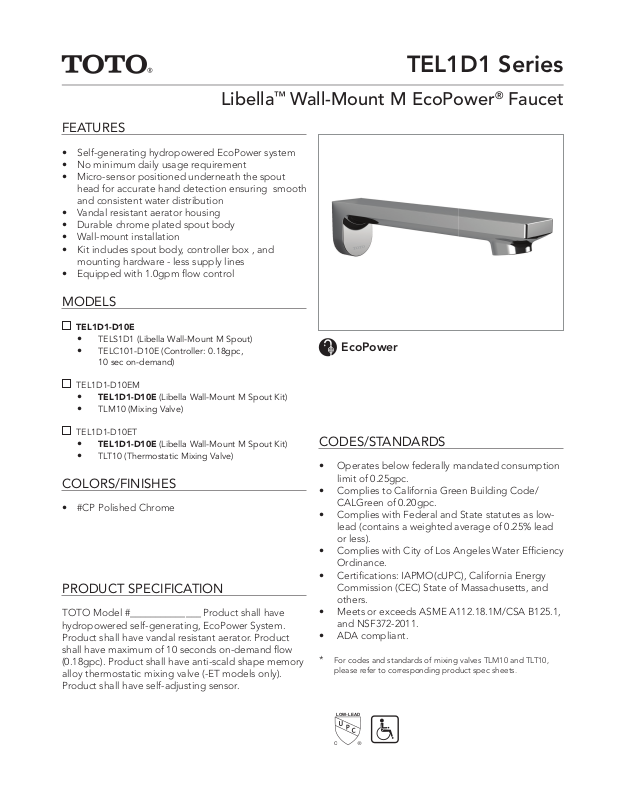

Page 1

TEL1D1 Series

LOW-LEAD

Libella

™

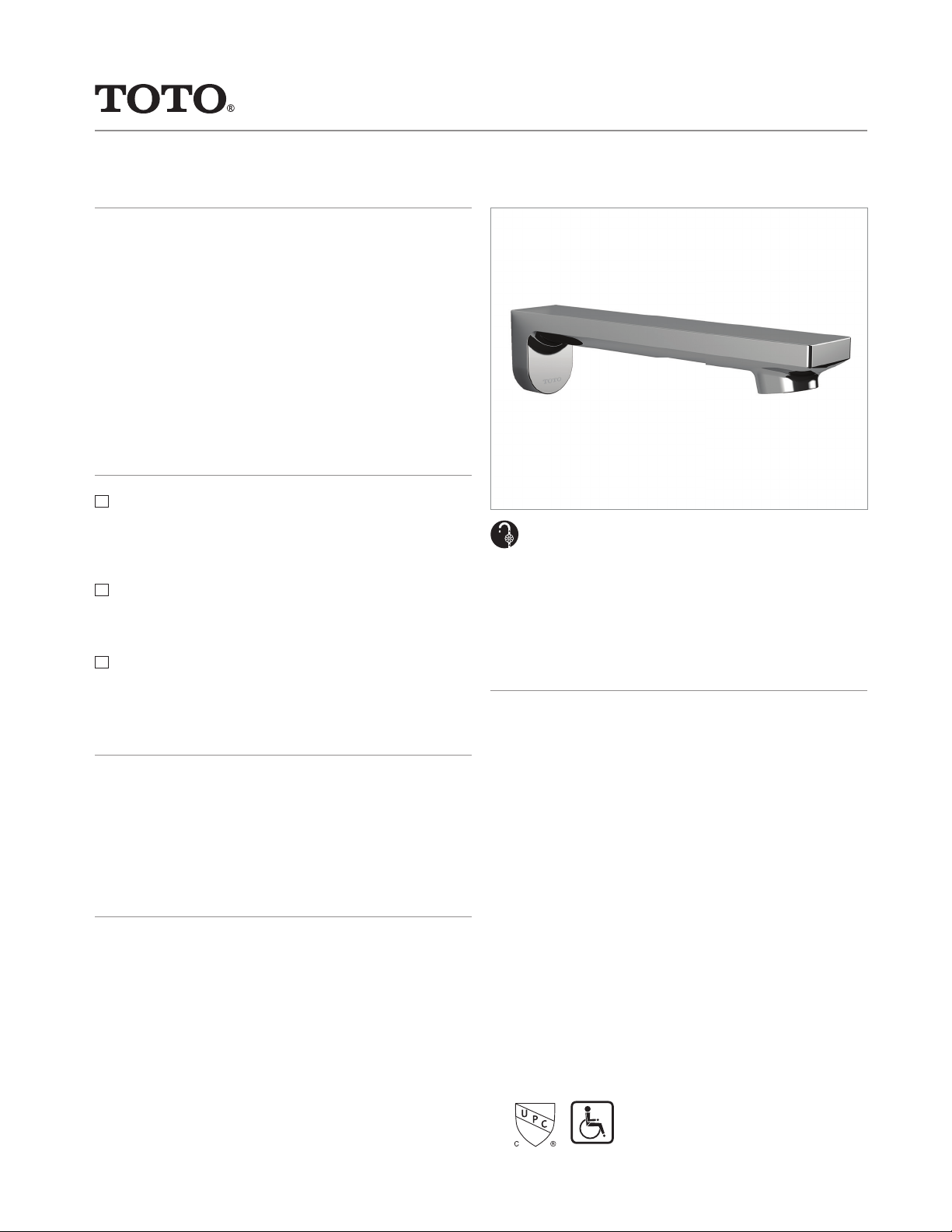

Wall-Mount M EcoPower

FEATURES

• Self-generating hydropowered EcoPower system

• No minimum daily usage requirement

• Micro-sensor positioned underneath the spout head for accurate hand detection ensuring smooth and consistent water distribution

• Vandal resistant aerator housing

• Durable chrome plated spout body

• Wall-mount installation

• Kit includes spout body, controller box , and mounting hardware - less supply lines

• Equipped with 1.0gpm ﬂ ow control

MODELS

TEL1D1-D10E

• TELS1D1 (Libella Wall-Mount M Spout)

• TELC101-D10E (Controller: 0.18gpc,

10 sec on-demand)

TEL1D1-D10EM

• TEL1D1-D10E (Libella Wall-Mount M Spout Kit)

• TLM10 (Mixing Valve)

EcoPower

Faucet

TEL1D1-D10ET

• TEL1D1-D10E (Libella Wall-Mount M Spout Kit)

• TLT10 (Thermostatic Mixing Valve)

COLORS/FINISHES

• #CP Polished Chrome

PRODUCT SPECIFICATION

TOTO Model #______________ Product shall have hydropowered self-generating, EcoPower System. Product shall have vandal resistant aerator. Product shall have maximum of 10 seconds on-demand ﬂ ow (0.18gpc). Product shall have anti-scald shape memory alloy thermostatic mixing valve (-ET models only). Product shall have self-adjusting sensor.

CODES/STANDARDS

• Operates below federally mandated consumption limit of 0.25gpc.

• Complies to California Green Building Code/ CALGreen of 0.20gpc.

• Complies with Federal and State statutes as lowlead (contains a weighted average of 0.25% lead or less).

• Complies with City of Los Angeles Water Efﬁ ciency Ordinance.

• Certiﬁ cations: IAPMO(cUPC), California Energy Commission (CEC) State of Massachusetts, and others.

• Meets or exceeds ASME A112.18.1M/CSA B125.1, and NSF372-2011.

• ADA compliant.

* For codes and standards of mixing valves TLM10 and TLT10,

please refer to corresponding product spec sheets.

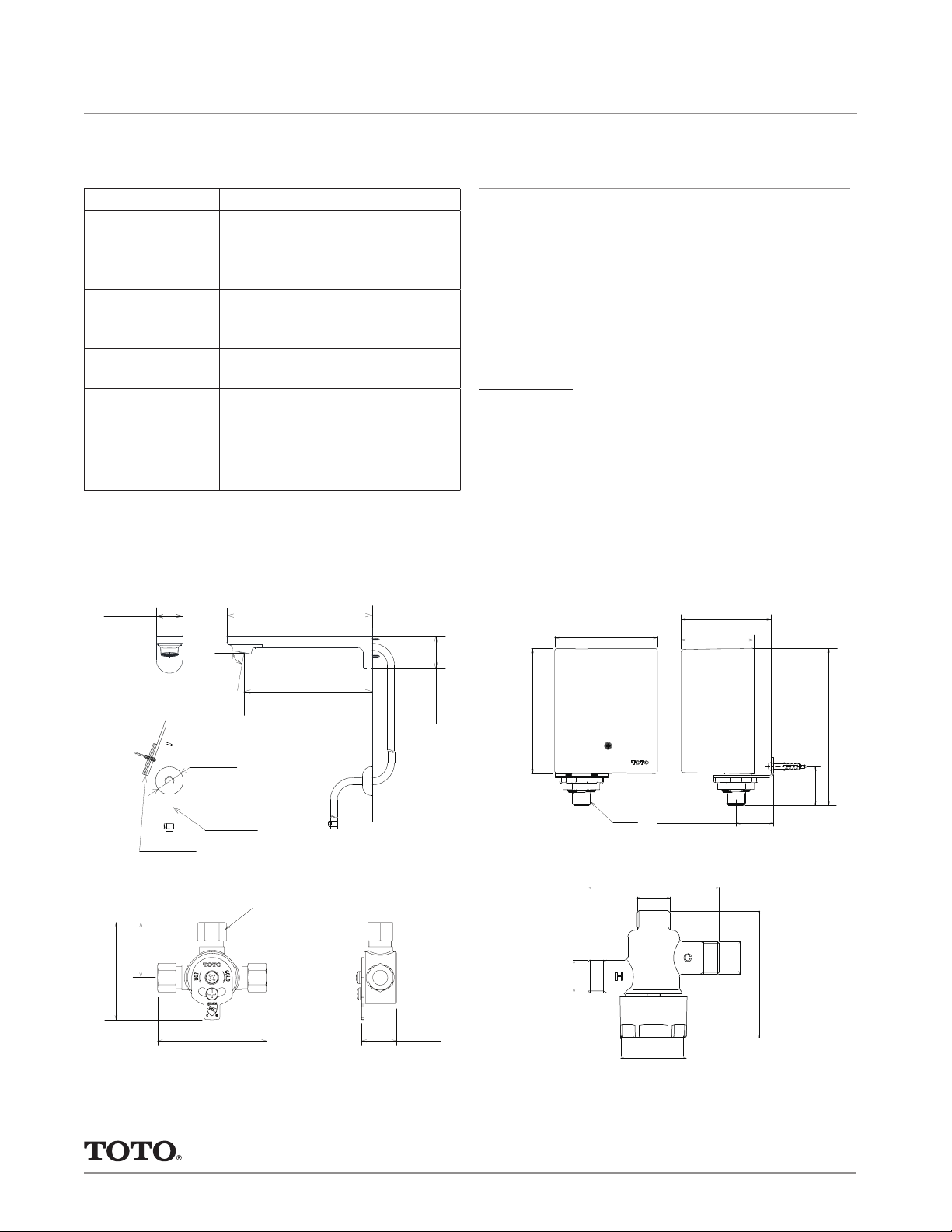

Page 2

TEL1D1 Series

2-1/2” (63mm)

(60mm)

Controllers

3-5/8”(94mm)

G1/2 compatible with ½ NPSM

Libella

SPECIFICATIONS

Power Supply EcoPower

Sensor Detection

Range

Water Supply

Pressure

Water Supply G1/2 (1/2 NPSM compatible)

Inlet Temperature

Range

Ambient

Temperature

Humidity Max. 90% RH

Flow Rate

Warranty Three year limited

*Gallons per cycle (gpc) is the amount of water per usage cycle . ** On-demand refers to the way in which the water is dispersed (i.e.; water is only dispersed when the sensor is activated by the user as needed).

Libella Wall-Mount M

1-5/8”

(42mm)

5-1/8" - 7-7/8" (130 - 200mm) Sensor is self-adjusting

Min (Flowing) Pressure: 15psi (100 kPa) Max (Static) Pressure: 80 psi (551kPa)

39-110°F(4-42°C)

32-104°F(0-40°C)

0.18 gpc* - max 10 second On-Demand** (0.18 gpc = 1.0 gpm x 10/60 seconds) Equipped with 1.0 gpm ﬂow control

9-1/2”

(242mm)

™

Wall-Mount M EcoPower® Faucet

NOTE

Following the federal mandate for water efﬁciency outlined in the Environmental Protection Act of 1992, faucets can be rated for water consumption based on two categories: Flow Rate and Water Consumption. TOTO uses the water consumption standard because it is the most accurate method of measuring water use. TOTO faucets also comply with the CALGreen Guideline of water usage.

Water Saving

On-Demand [10 sec.] faucet (0.18gpc)

28% less than Federal Standard (0.25gpc) 10% less than CAL Green (0.20gpc)

Controller

TELC105 TELC101

4-5/8”(117mm)

3-5/16”(83mm)

80°

Ø2-3/16” (Ø55mm)

L=32-1/4”

L=41-5/16”

(L=1050mm)

(L=820mm)

Available Mixing Valves

1-7/16”

(36mm)

2-13/16” (71mm)

Hot/Cold Mixing Tee (TLM10)

8-1/4”

(210mm)

3/8 COMPRESSION

Finished wall

7/8” (23mm)

2-3/8”

5-5/8”(142mm)

G1/2

1-11/16” (42mm)

3-5/16”(84mm)

G1/2

3-3/16”(82mm)

Φ1-5/8” (Φ 42mm)

G1/2 compatible with ½ NPSM

Thermostatic Mixing Valve (TLT10)

7” (178mm)

1-3/4”

(44mm)

These dimensions and speciﬁcations are subject to change without notice

#SS-01108, v.02
