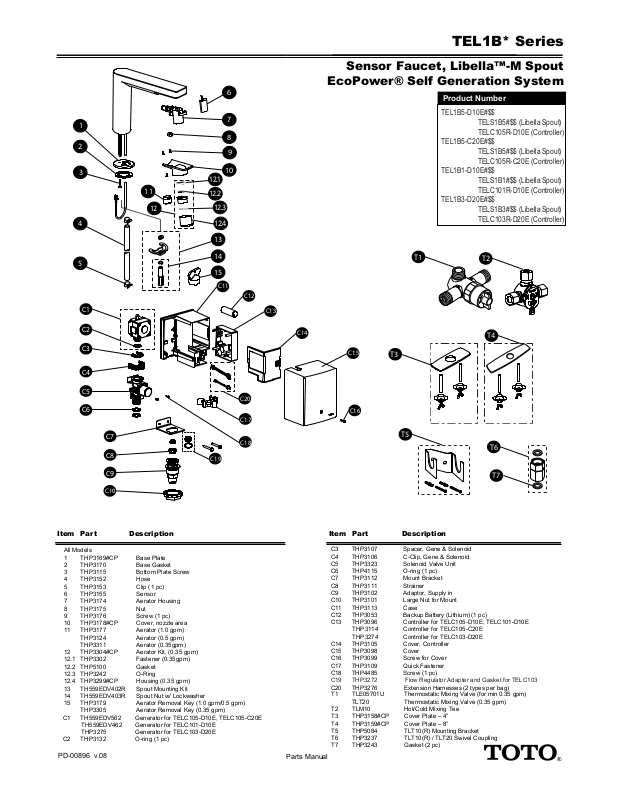

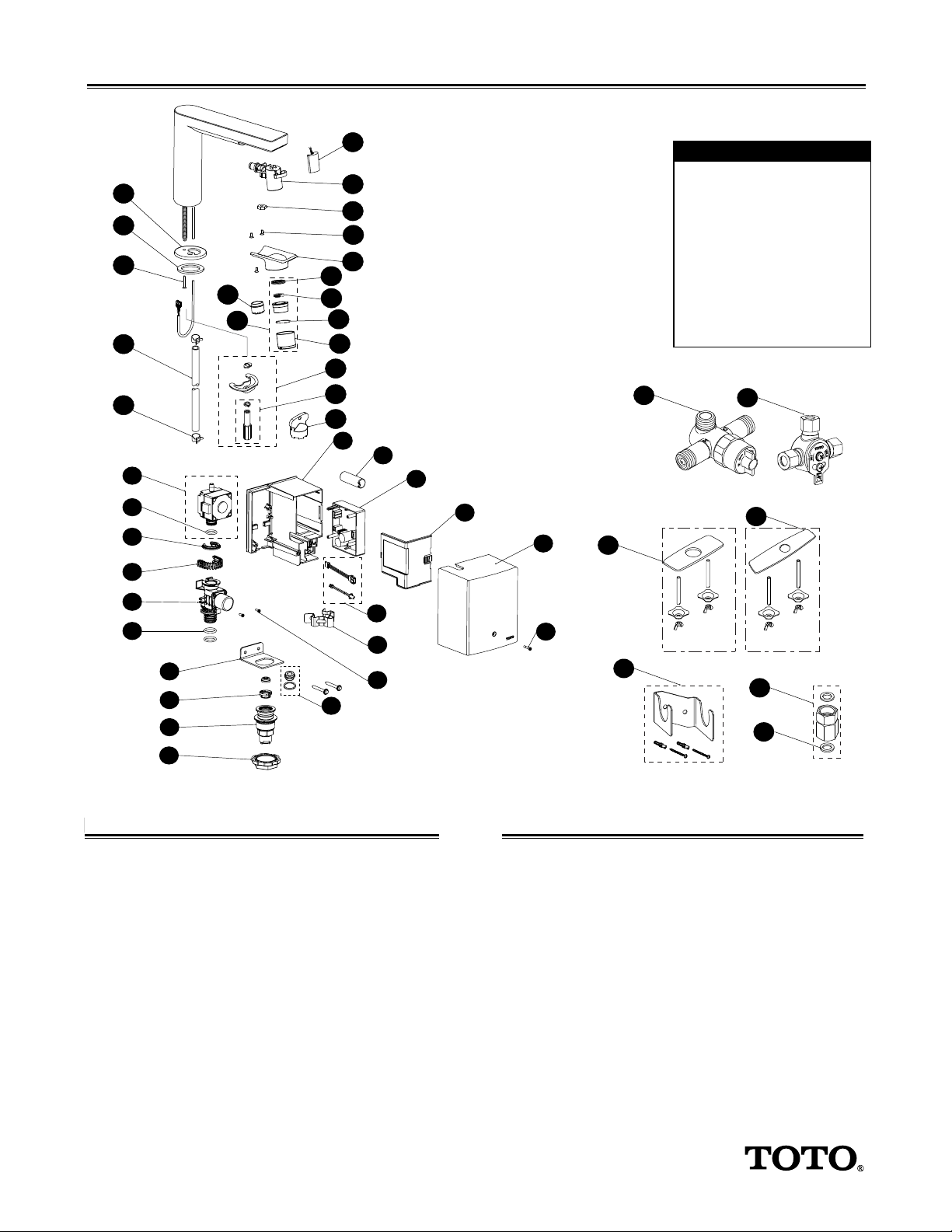

TEL1B* Series
T3
T4
T1
T2
T6
T5
T7
Sensor Faucet, Libella™-M Spout
6
1
7
8
2
3
11
12
4
9
10
12.1
12.2
12.3
12.4
13
5
14
15
C11
C11
C12
C12
C1
C1
C2
C2
C3
C3
C4
C4
C13
C13
C14
EcoPower® Self Generation System
Product Number
TEL1B5-D10E#$$
TELS1B5#$$ (Libella Spout)
TELC105R-D10E (Controller)
TEL1B5-C20E#$$
TELS1B5#$$ (Libella Spout)
TELC105R-C20E (Controller)
TEL1B1-D10E#$$
TELS1B1#$$ (Libella Spout)
TELC101R-D10E (Controller)
TEL1B3-D20E#$$
TELS1B3#$$ (Libella Spout)
TELC103R-D20E (Controller)
C14
C15
C15
T1
T3
T2
T4
C5
C5
C6
C6
C7
C7
C8
C8
C9
C9
C10
C10
C19
C19
C20
C20
C17
C17
C18
C18
Item Part Description
All Models
1 THP3169#CP Base Plate
2 THP3170 Base Gasket
3 THP3115 Bottom Plate Screw
4 THP3152 Hose
5 THP3153 Clip (1 pc)
6 THP3155 Sensor
7 THP3174 Aerator Housing
8 THP3175 Nut
9 THP3176 Screw (1 pc)
10 THP3178#CP Cover, nozzle area
11 THP3177 Aerator (1.0 gpm)
THP3124 Aerator (0.5 gpm)
THP3311 Aerator (0.35gpm)
12 THP3304#CP Aerator Kit, (0.35 gpm)
12.1 THP3302 Fastener (0.35gpm)
12.2 THP5100 Gasket
12.3 THP3242 O-Ring
12.4 THP3299#CP Housing (0.35 gpm)
13 TH559EDV402R Spout Mounting Kit
14 TH559EDV403R Spout Nut w/ Lockwasher
15 THP3179 Aerator Removal Key (1.0 gpm/0.5 gpm)
THP3305 Aerator Removal Key (0.35 gpm)
C1 TH559EDV562 Generator for TELC105-D10E, TELC105-C20E
TH559EDV462 Generator for TELC101-D10E
THP3275 Generator for TELC103-D20E
C2 THP3132 O-ring (1 pc)
PD-00896 v.08
Parts Manual
C16
C16
T5
T6
T7
Item Part Description
C3 THP3107 Spacer, Gene & Solenoid
C4 THP3106 C-Clip, Gene & Solenoid
C5 THP3323 Solenoid Valve Unit
C6 THP4115 O-ring (1 pc)
C7 THP3112 Mount Bracket
C8 THP3111 Strainer
C9 THP3102 Adaptor, Supply in
C10 THP3101 Large Nut for Mount
C11 THP3113 Case
C12 THP3053 Backup Battery (Lithium) (1 pc)
C13 THP3096 Controller for TELC105-D10E, TELC101-D10E
THP3114 Controller for TELC105-C20E
THP3274 Controller for TELC103-D20E
C14 THP3105 Cover, Controller
C15 THP3098 Cover
C16 THP3099 Screw for Cover
C17 THP3109 Quick Fastener
C18 THP4485 Screw (1 pc)
C19 THP3272 Flow Regulator Adapter and Gasket for TELC103
C20 THP3276 Extension Harnesses (2 types per bag)
T1 TLE05701U Thermostatic Mixing Valve (for min 0.35 gpm)
TLT20 Thermostatic Mixing Valve (0.35 gpm)
T2 TLM10 Hot/Cold Mixing Tee
T3 THP3158#CP
T4 THP3159#CP
T5 THP5084 TLT10(R) Mounting Bracket
T6 THP3237 TLT10(R) / TLT20 Swivel Coupling
T7 THP3243 Gasket (2 pc)
Cover Plate – 4”
Cover Plate – 8”
