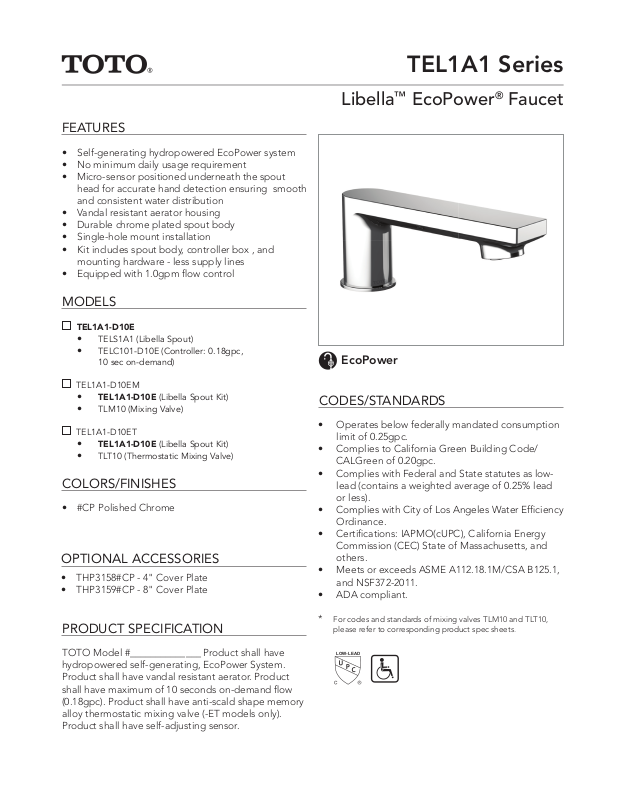

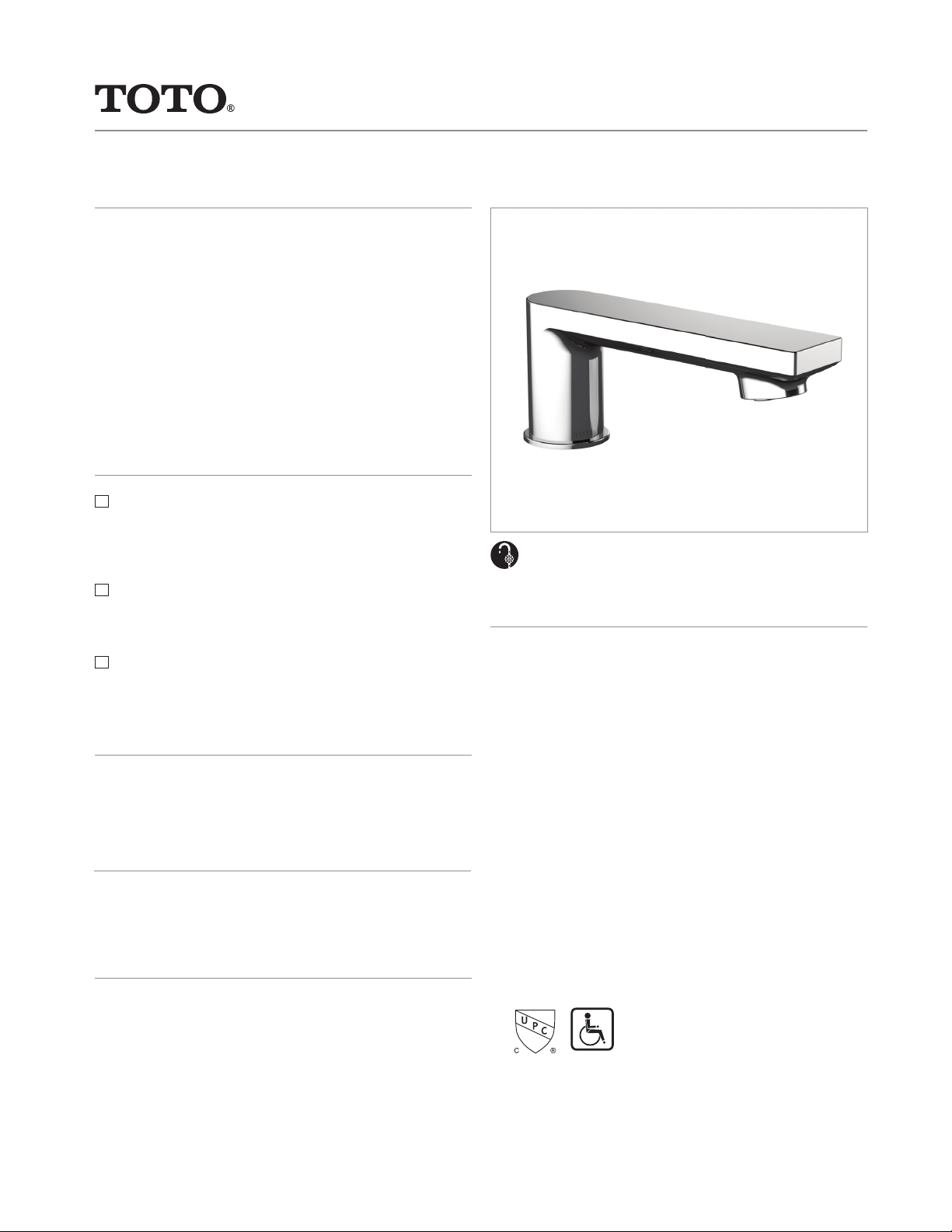

Page 1
FEATURES
LOW-LEAD
• Self-generating hydropowered EcoPower system
• No minimum daily usage requirement
• Micro-sensor positioned underneath the spout
head for accurate hand detection ensuring smooth
and consistent water distribution
• Vandal resistant aerator housing
• Durable chrome plated spout body
• Single-hole mount installation
• Kit includes spout body, controller box , and
mounting hardware - less supply lines
• Equipped with 1.0gpm fl ow control
MODELS
TEL1A1-D10E
• TELS1A1 (Libella Spout)
• TELC101-D10E (Controller: 0.18gpc,
10 sec on-demand)
TEL1A1 Series
Libella™ EcoPower® Faucet
EcoPower
TEL1A1-D10EM
• TEL1A1-D10E (Libella Spout Kit)
• TLM10 (Mixing Valve)
TEL1A1-D10ET
• TEL1A1-D10E (Libella Spout Kit)
• TLT10 (Thermostatic Mixing Valve)
COLORS/FINISHES
• #CP Polished Chrome
OPTIONAL ACCESSORIES
• THP3158#CP - 4" Cover Plate
• THP3159#CP - 8" Cover Plate
PRODUCT SPECIFICATION
TOTO Model #______________ Product shall have
hydropowered self-generating, EcoPower System.
Product shall have vandal resistant aerator. Product
shall have maximum of 10 seconds on-demand fl ow
(0.18gpc). Product shall have anti-scald shape memory
alloy thermostatic mixing valve (-ET models only).
Product shall have self-adjusting sensor.
CODES/STANDARDS
• Operates below federally mandated consumption
limit of 0.25gpc.
• Complies to California Green Building Code/
CALGreen of 0.20gpc.
• Complies with Federal and State statutes as lowlead (contains a weighted average of 0.25% lead
or less).
• Complies with City of Los Angeles Water Effi ciency
Ordinance.
• Certifi cations: IAPMO(cUPC), California Energy
Commission (CEC) State of Massachusetts, and
others.
• Meets or exceeds ASME A112.18.1M/CSA B125.1,
and NSF372-2011.
• ADA compliant.
* For codes and standards of mixing valves TLM10 and TLT10,
please refer to corresponding product spec sheets.

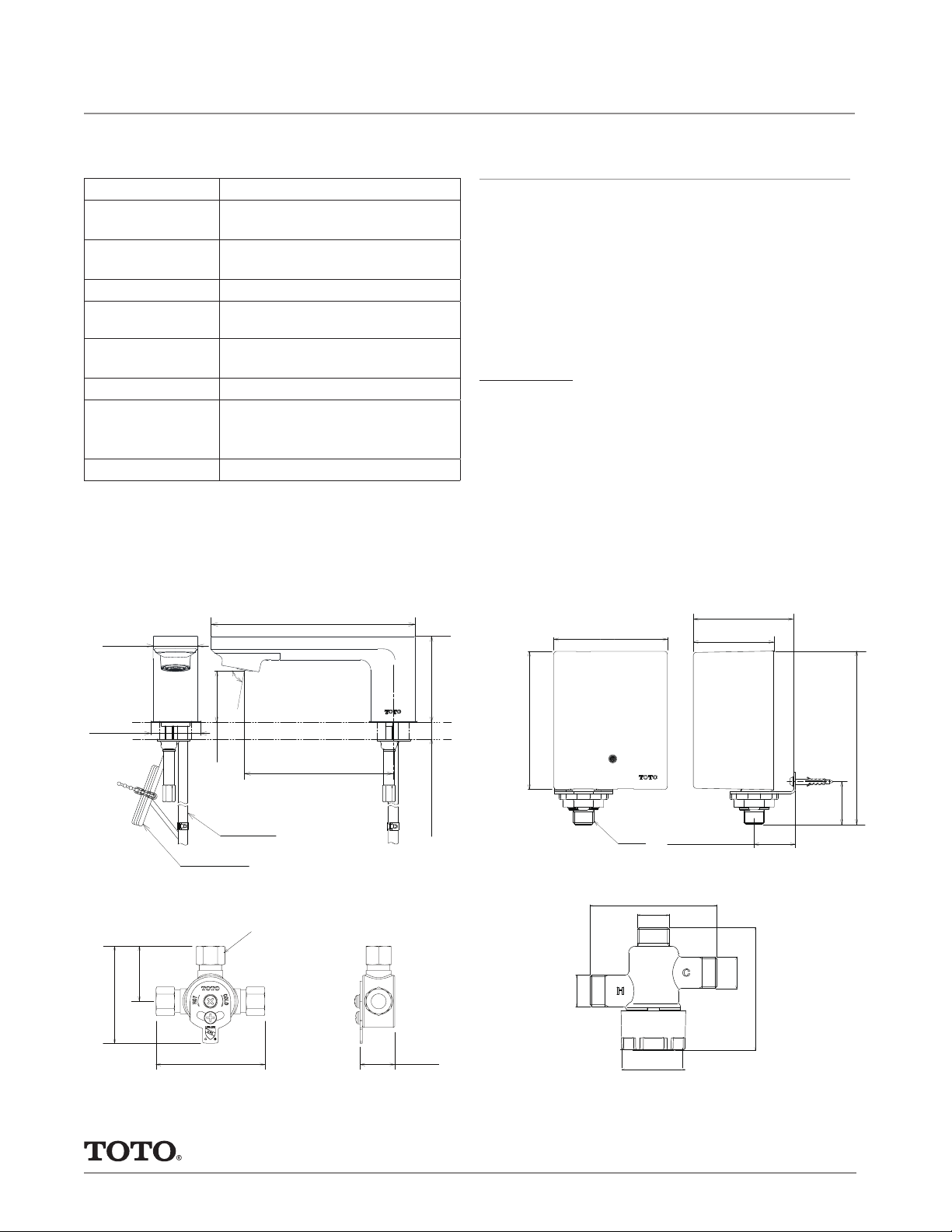

Page 2
TEL1A1 Series
Max deck thickness
5-1/2”
(140mm)
Ø1-5/8”
(Ø42mm)
1-15/16”
(48mm)
3-1/8”
(80mm)
2” (50mm)
Max deck thickness
80°
1-5/8”
(42mm)
7-5/8”
(194mm)
L=33-1/2”
(L=850mm)
L=43-5/16”
(L=1100mm)
2-1/2” (63mm)
Controllers
3-5/8”(94mm)
Libella™ EcoPower® Faucet
SPECIFICATIONS
NOTE
Power Supply EcoPower
Sensor Detection
Range
Water Supply
Pressure
5-1/8" - 7-7/8" (130 - 200mm)
Sensor is self-adjusting
Min (Flowing) Pressure: 15psi (100 kPa)
Max (Static) Pressure: 80 psi (551kPa)
Water Supply G1/2 (1/2 NPSM compatible)
Inlet Temperature
Range
Ambient
Temperature
39-110°F(4-42°C)
32-104°F(0-40°C)
Humidity Max. 90% RH
0.18 gpc* - max 10 second On-Demand**
Flow Rate
(0.18 gpc = 1.0 gpm x 10/60 seconds)
Following the federal mandate for water efficiency
outlined in the Environmental Protection Act of 1992,
faucets can be rated for water consumption based on
two categories: Flow Rate and Water Consumption.
TOTO uses the water consumption standard because
it is the most accurate method of measuring water
use. TOTO faucets also comply with the CALGreen
Guideline of water usage.
Water Saving
On-Demand [10 sec.] faucet (0.18gpc)
30% less than Federal Standard (0.25gpc)
10% less than CAL Green (0.20gpc)
Equipped with 1.0 gpm flow control
Warranty Three year limited
*Gallons per cycle (gpc) is the amount of water per usage cycle .
** On-demand refers to the way in which the water is dispersed (i.e.; water is only dispersed when the sensor is activated by the user as
needed).
Libella Controller
TELC105
TELC101
4-5/8”(117mm)
3-5/16”(83mm)
1-5/8”
(42mm)
7-5/8”
(194mm)
80°
Ø1-5/8”
(Ø42mm)
Available Mixing Valves
1-7/16”
(36mm)
Hot/Cold Mixing Tee (TLM10)
1-15/16”
(48mm)
L=33-1/2”
(L=850mm)
L=43-5/16”
(L=1100mm)
2-13/16” (71mm)
5-1/2”
(140mm)
3/8 COMPRESSION
Faucet hole Ø1-3/8” (Ø35mm)
7/8”
(23mm)
3-1/8”
(80mm)
2” (50mm)
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
5-5/8”(142mm)
G1/2
G1/2
1-11/16” (42mm)
G1/2 compatible with ½ NPSM
3-5/16”(84mm)
G1/2
G1/2
Φ1-5/8” (Φ 42mm)
G1/2 compatible
with ½ NPSM
3-3/16”(82mm)
Thermostatic Mixing Valve (TLT10)
1-3/4”
#SS-01102, v.03
7” (178mm)
(44mm)
