Page 1

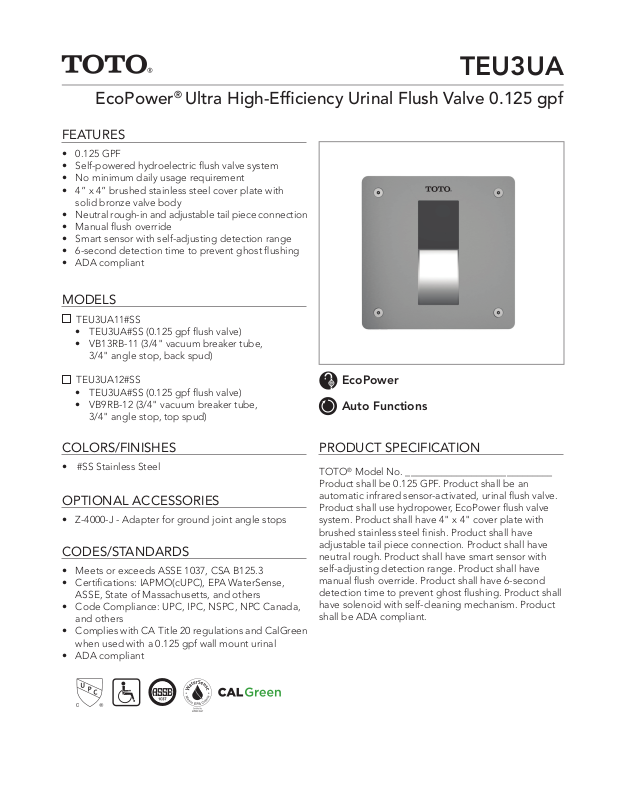

EcoPower® Ultra High-Efficiency Urinal Flush Valve 0.125 gpf
FEATURES
• 0.125 GPF
• Self-powered hydroelectric flush valve system
• No minimum daily usage requirement
• 4” x 4” brushed stainless steel cover plate with
solid bronze valve body
• Neutral rough-in and adjustable tail piece connection
• Manual flush override
• Smart sensor with self-adjusting detection range
• 6-second detection time to prevent ghost flushing
• ADA compliant
MODELS
TEU3UA11#SS
• TEU3UA#SS (0.125 gpf flush valve)
• VB13RB-11 (3/4" vacuum breaker tube,
3/4" angle stop, back spud)
TEU3UA
TEU3UA12#SS
• TEU3UA#SS (0.125 gpf flush valve)
• VB9RB-12 (3/4" vacuum breaker tube,
3/4" angle stop, top spud)
COLORS/FINISHES
• #SS Stainless Steel
OPTIONAL ACCESSORIES
• Z-4000-J - Adapter for ground joint angle stops
CODES/STANDARDS
• Meets or exceeds ASSE 1037, CSA B125.3
• Certifications: IAPMO(cUPC), EPA WaterSense,
ASSE, State of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Complies with CA Title 20 regulations and CalGreen
when used with a 0.125 gpf wall mount urinal
• ADA compliant
EcoPower
Auto Functions
PRODUCT SPECIFICATION
®
TOTO
Product shall be 0.125 GPF. Product shall be an
automatic infrared sensor-activated, urinal flush valve.
Product shall use hydropower, EcoPower flush valve
system. Product shall have 4" x 4" cover plate with
brushed stainless steel finish. Product shall have
adjustable tail piece connection. Product shall have
neutral rough. Product shall have smart sensor with
self-adjusting detection range. Product shall have
manual flush override. Product shall have 6-second
detection time to prevent ghost flushing. Product shall
have solenoid with self-cleaning mechanism. Product
shall be ADA compliant.
Model No. _____________________________
Page 2
TEU3UA
1-1/4”
(31mm)
EcoPower® Ultra High-Efficiency Urinal Flush Valve 0.125 gpf
SPECIFICATIONS
• Material Bronze casting
• Power supply EcoPower
• Sensor detection time Factory setting at six
(6) seconds minimum
• Sensor detection range Self-adjusting to
environment
• Discharge quantity Preset to 0.125 gpf/
0.47 lpf
• Operating temperature 32°-104°F (0°-40°C)
• Water supply pressure 15 psi - 125 psi*
• Water supply connection 3/4" NPT
• Warranty Three year limited
*Water pressures over 80 psi are not recommended for most plumbing
fixtures. Check your local plumbing code for details.

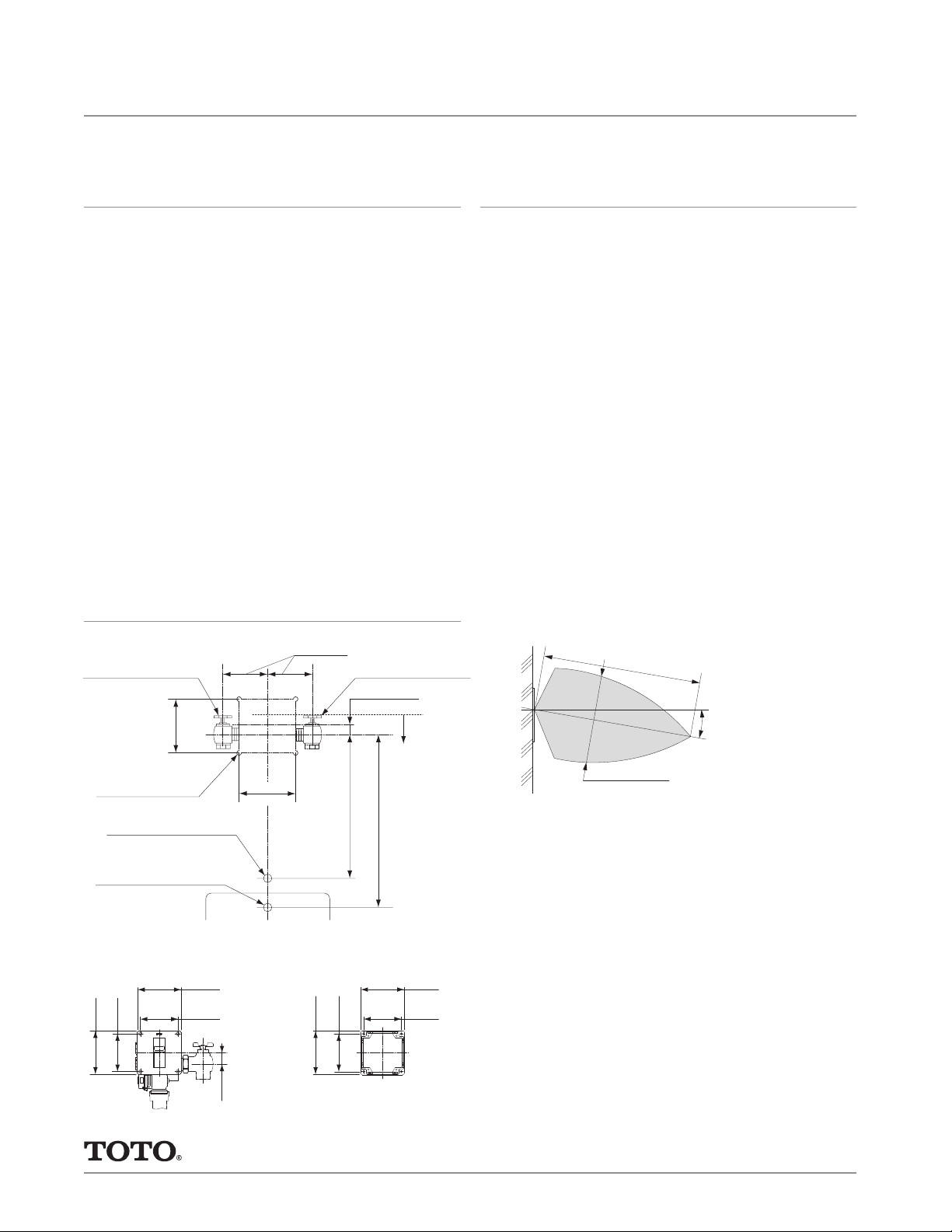

DIAGRAM
Left water supply pipe
1”NPT (toilet), 3/4” (urinal)
** 3-11/16”
(94 mm)
4-3/4” ± 1/2”
(120 ± 13mm)
Right water supply pipe
1”NPT (toilet), 3/4” (urinal)
1-1/4” (31 mm)
CL of sensor
X”
INSTALLATION NOTES
For commercial applications only.
Warning: Failure to properly adjust angle stop to
the appropriate level can potentially cause property
damage.
For detailed installation instructions, please refer to
the installation manual.
Max flow rate to be used with
TEU3UA___________: 0.125 gpf
Confirm with local codes and standards for floor drain
requirement. Adjust control stop for proper flow rate
to the fixture.
The recommended installation for the flush valve is
to have a 7" (178mm) minimum space in wall with a
minimum 12" x 12" access panel or walk-in chase (for
service and maintenance purposes). Do not place grab
bars in front of sensor for ADA stalls.
33-1/2"
(850mm)
15°
4 x Ø5/16" (Ø8mm) hole
Toilet top spud
Ø2-3/16” (Ø56 mm) hole
Urinal top spud
Ø1-5/16” (Ø33mm) hole
Urinal back spud
Ø1-5/16” (Ø33 mm) hole
Toilet back spud
Ø2-3/16” (Ø55 mm) hole
* X”, ‡ = At least 5” clearance from sensor to tip of toilet seat up position or
to top of grab bar is required to avoid false detection.
** Opening in wall
4-3/4”
120mm)
3-11/16”
(94mm)
4-3/4”
(94mm)
3-11/16”
(120mm)
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
** 3-11/16”
(94mm)
4-3/8”
11” (279mm)
3-11/16”
(110mm)
(94mm)
16” (406mm)
(110mm)
3-11/16”
(94mm)
4-3/8”
These dimensions and specifications are subject to change without notice
Max 19-11/16”
(Max 500mm)
#SS-01173, v.01
