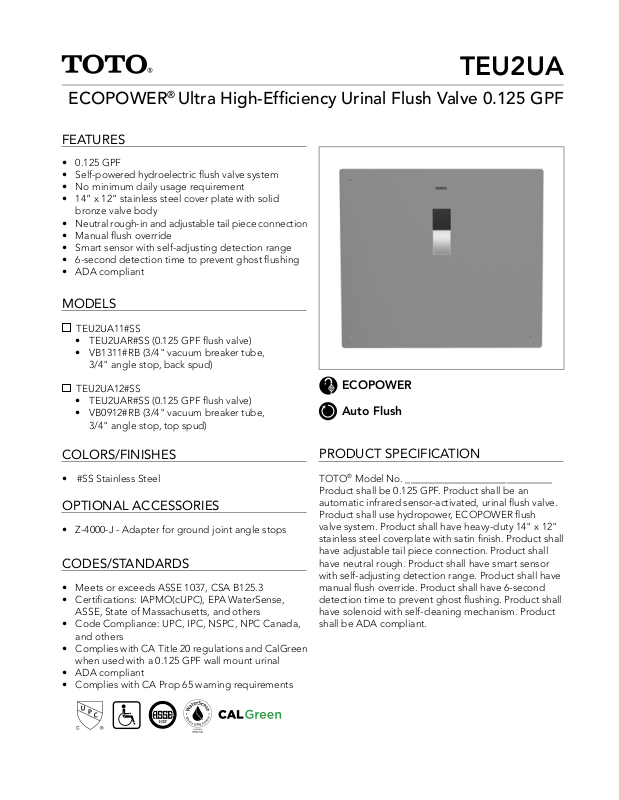

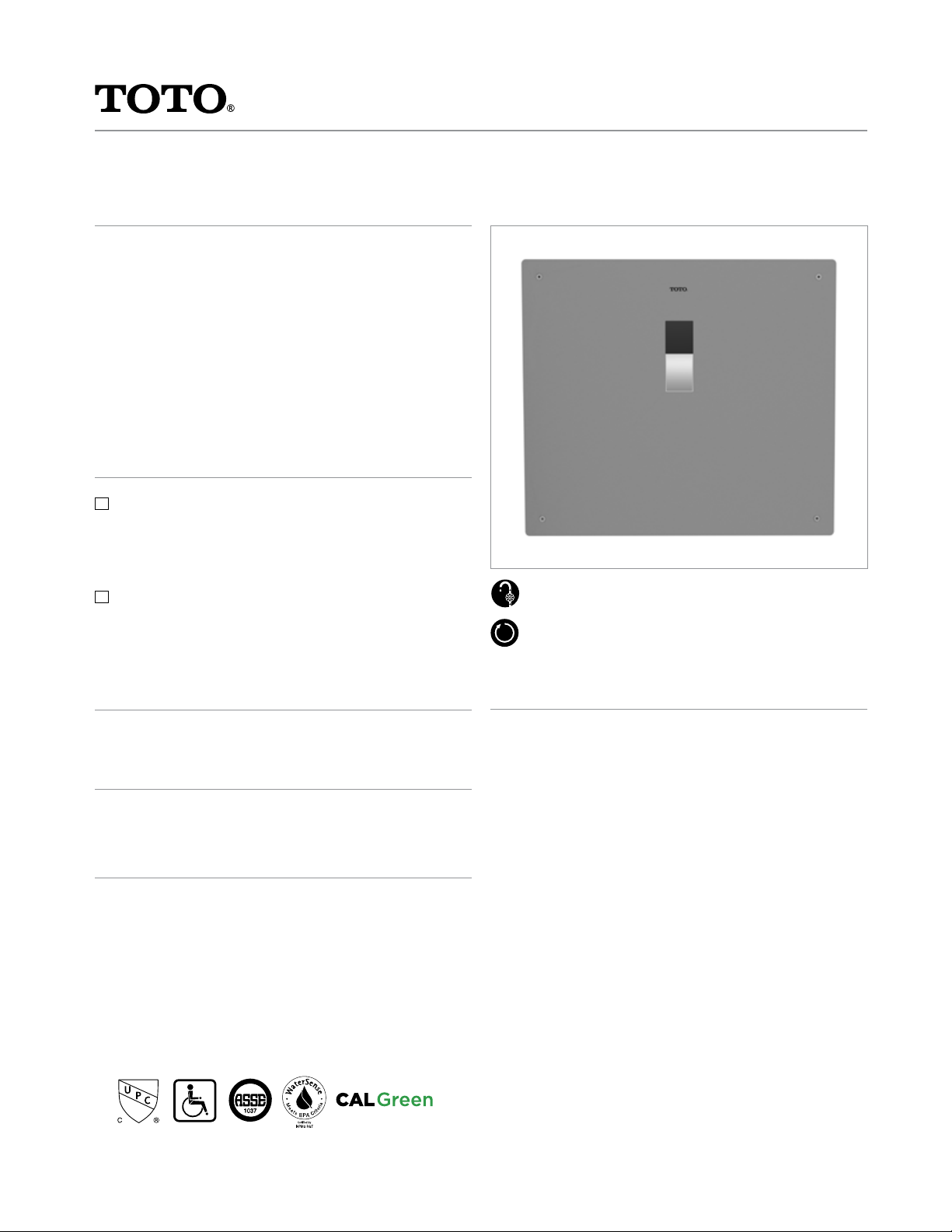

TEU2UA
ECOPOWER® Ultra High-Efficiency Urinal Flush Valve 0.125 GPF
FEATURES
• 0.125 GPF
• Self-powered hydroelectric flush valve system
• No minimum daily usage requirement
• 14” x 12” stainless steel cover plate with solid
bronze valve body
• Neutral rough-in and adjustable tail piece connection
• Manual flush override
• Smart sensor with self-adjusting detection range
• 6-second detection time to prevent ghost flushing
• ADA compliant
MODELS
TEU2UA11#SS
• TEU2UAR#SS (0.125 GPF flush valve)
• VB1311#RB (3/4" vacuum breaker tube,
3/4" angle stop, back spud)
TEU2UA12#SS
• TEU2UAR#SS (0.125 GPF flush valve)
• VB0912#RB (3/4" vacuum breaker tube,
3/4" angle stop, top spud)
COLORS/FINISHES
• #SS Stainless Steel
OPTIONAL ACCESSORIES
• Z-4000-J - Adapter for ground joint angle stops
CODES/STANDARDS
• Meets or exceeds ASSE 1037, CSA B125.3
• Certifications: IAPMO(cUPC), EPA WaterSense,
ASSE, State of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Complies with CA Title 20 regulations and CalGreen
when used with a 0.125 GPF wall mount urinal
• ADA compliant
• Complies with CA Prop 65 warning requirements
ECOPOWER
Auto Flush
PRODUCT SPECIFICATION
®
TOTO
Product shall be 0.125 GPF. Product shall be an
automatic infrared sensor-activated, urinal flush valve.
Product shall use hydropower, ECOPOWER flush
valve system. Product shall have heavy-duty 14" x 12"
stainless steel coverplate with satin finish. Product shall
have adjustable tail piece connection. Product shall
have neutral rough. Product shall have smart sensor
with self-adjusting detection range. Product shall have
manual flush override. Product shall have 6-second
detection time to prevent ghost flushing. Product shall
have solenoid with self-cleaning mechanism. Product
shall be ADA compliant.
Model No. _____________________________
Page 2
TEU2UA
12-5/8” (320mm)
11-7/8” (301mm)
ECOPOWER® Ultra High-Efficiency Urinal Flush Valve 0.125 GPF
SPECIFICATIONS
• Material Bronze casting
• Power supply ECOPOWER
• Sensor detection time Factory setting at six
(6) seconds minimum
• Sensor detection range Self-adjusting to
environment
• Discharge quantity Preset to 0.125 GPF/
0.47 LPF
• Operating temperature 32°-104°F (0°-40°C)
• Water supply pressure 15 psi - 125 psi*
• Water supply connection 3/4" NPT
• Warranty Three year limited
*Water pressures over 80 psi are not recommended for most plumbing
fixtures. Check your local plumbing code for details.

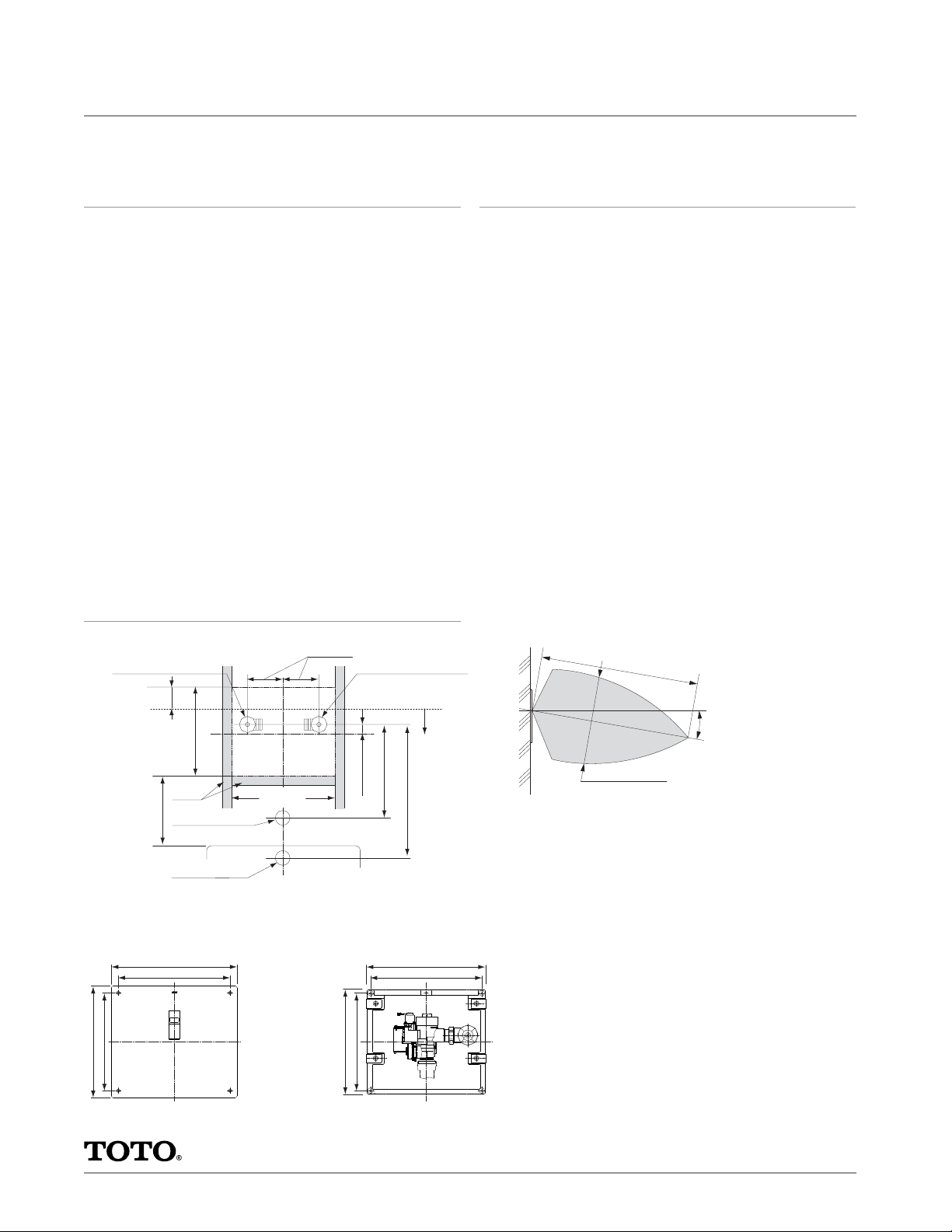

DIAGRAM
Left water supply
1” NPT (toilet), 3/4” (urinal)
Sensor Location
3-7/16” (87mm)
4-3/4” ± 1/2”
(120 ± 13mm)
Right water supply
1” NPT (toilet), 3/4” (urinal)
CL of sensor
* X”
INSTALLATION NOTES
For commercial applications only.
Warning: Failure to properly adjust angle stop to
the appropriate level can potentially cause property
damage.
For detailed installation instructions, please refer to
the installation manual.
Max flow rate to be used with
TEU2UA___________: 0.125 GPF
Confirm with local codes and standards for floor drain
requirement. Adjust control stop for proper flow rate
to the fixture.
The recommended installation for the flush valve is
to have a 7" (178mm) minimum space in wall. Do not
place grab bars in front of sensor for ADA stalls.
33-1/2"
(850mm)
15°
(303mm)
** 11-15/16”
3/4” (19mm)
11” (279mm)
* 14-3/4” ‡
from top of
xture (toilet)
* X”, ‡ = At least 5” clearance from sensor to tip of toilet seat up position or
to top of grab bar is required to avoid false detection.
** Opening in wall
11” (280mm)
Stud
Toilet top spud
Ø2-3/16” (Ø56mm) hole
Urinal top spud
Ø1-1/2” (Ø38mm) hole
Toilet Back spud
Ø2-3/16” (Ø56mm) hole
Urinal Back spud
Ø1-5/16” (Ø33mm) hole
14-3/16” (360mm)
12-5/8” (320mm)
** 13-1/2”
(343mm)
11” (280mm)
16” (406mm)
13-3/8” (340mm)
12-5/8” (320mm)
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
Max 19-11/16”
(Max 500mm)
#SS-01171, v.03
