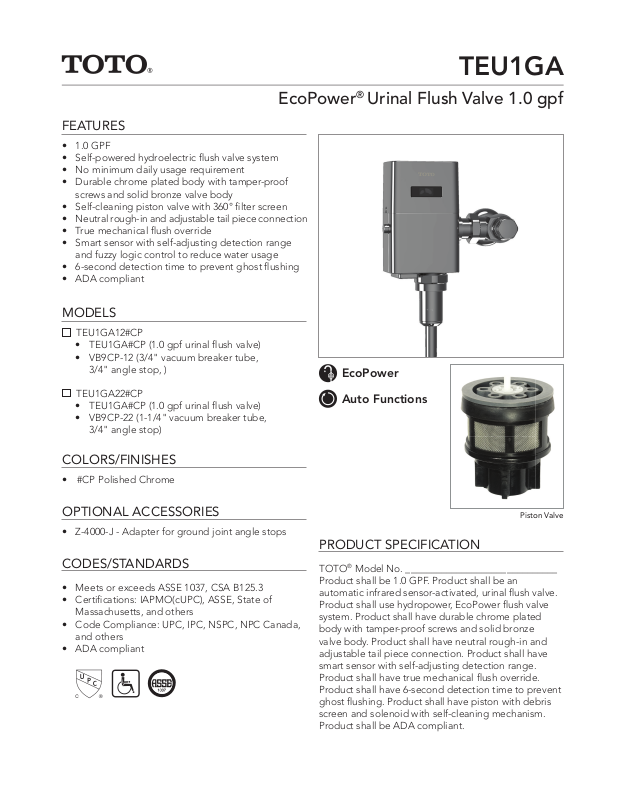

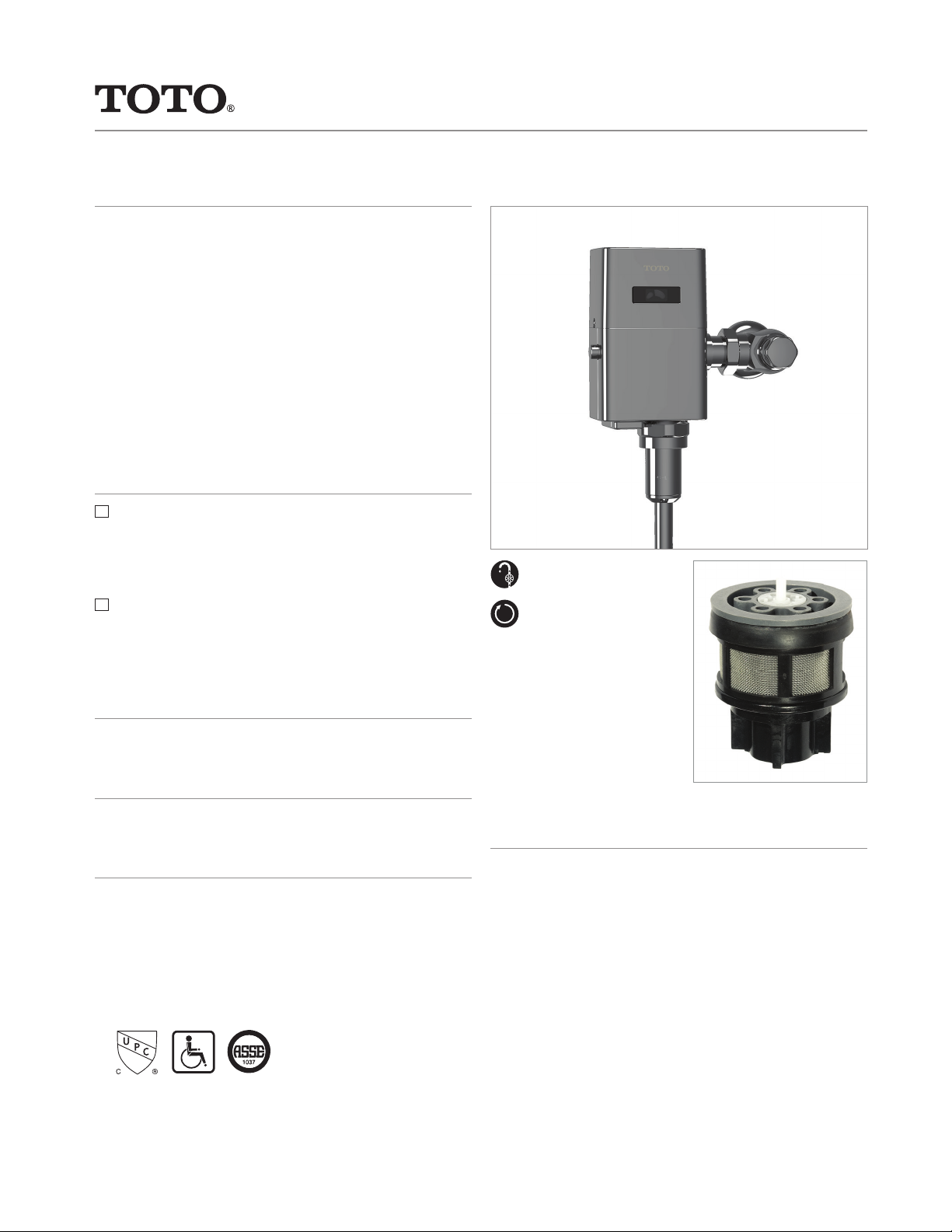

EcoPower® Urinal Flush Valve 1.0 gpf
FEATURES
• 1.0 GPF
• Self-powered hydroelectric fl ush valve system
• No minimum daily usage requirement
• Durable chrome plated body with tamper-proof
screws and solid bronze valve body
• Self-cleaning piston valve with 360° fi lter screen
• Neutral rough-in and adjustable tail piece connection
• True mechanical fl ush override
• Smart sensor with self-adjusting detection range
and fuzzy logic control to reduce water usage
• 6-second detection time to prevent ghost fl ushing
• ADA compliant
MODELS
TEU1GA12#CP
• TEU1GA#CP (1.0 gpf urinal fl ush valve)
• VB9CP-12 (3/4" vacuum breaker tube,
3/4" angle stop, )
TEU1GA
EcoPower
TEU1GA22#CP
• TEU1GA#CP (1.0 gpf urinal fl ush valve)
• VB9CP-22 (1-1/4" vacuum breaker tube,
3/4" angle stop)
COLORS/FINISHES
• #CP Polished Chrome
OPTIONAL ACCESSORIES
• Z-4000-J - Adapter for ground joint angle stops
CODES/STANDARDS
• Meets or exceeds ASSE 1037, CSA B125.3
• Certifi cations: IAPMO(cUPC), ASSE, State of
Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant
Auto Functions
Piston Valve
PRODUCT SPECIFICATION
®
TOTO
Product shall be 1.0 GPF. Product shall be an
automatic infrared sensor-activated, urinal fl ush valve.
Product shall use hydropower, EcoPower fl ush valve
system. Product shall have durable chrome plated
body with tamper-proof screws and solid bronze
valve body. Product shall have neutral rough-in and
adjustable tail piece connection. Product shall have
smart sensor with self-adjusting detection range.
Product shall have true mechanical fl ush override.
Product shall have 6-second detection time to prevent
ghost fl ushing. Product shall have piston with debris
screen and solenoid with self-cleaning mechanism.
Product shall be ADA compliant.
Model No. ______________________________
Page 2
TEU1GA
TET1GA, TET1LA
TEU1GA, TEU1LA
TEU1LA
EcoPower® Urinal Flush Valve, 1.0 gpf
SPECIFICATIONS
• Material Bronze casting
• Power supply EcoPower
• Sensor detection time Factory setting at six
(6) seconds minimum
• Sensor detection range Self-adjusting to
environment
• Discharge quantity Preset to 1.0 gpf/
3.8 lpf
• Operating temperature 32°-104°F (0°-40°C)
• Water supply pressure 15 psi - 125 psi*
• Water supply connection 3/4" NPT
• Warranty Three year limited
*Water pressures over 80 psi are not recommended for most plumbing
fixtures. Check your local plumbing code for details.
INSTALLATION NOTES
For commercial applications only.
Warning: Failure to properly adjust angle stop to
the appropriate level can potentially cause property
damage.
For detailed installation instructions, please refer to
the installation manual.
Max flow rate to be used with
TEU1GA___________: 1.0 gpf
Confirm with local codes and standards for floor drain
requirement. Adjust control stop for proper flow rate
to the fixture.

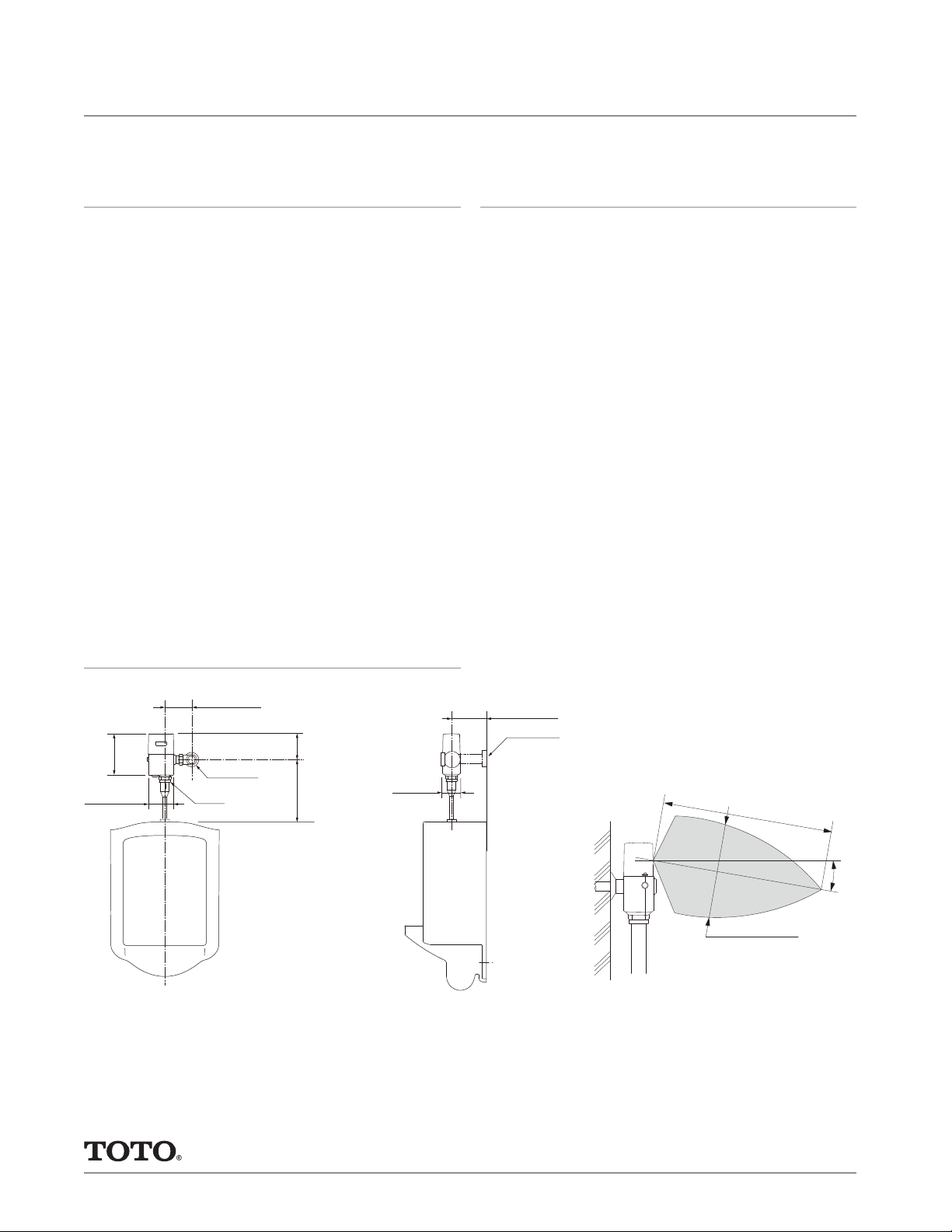

DIAGRAM
7”
(178mm)
4-9/16”
(115mm)
4-3/4”±1/2”
(120±13mm)
Inlet supply
3/4” NPT
1-1/2”
NPSM
4-1/4"
(108mm)
* 11-1/2”
(292mm)
3-3/16”
(81mm)
Min. 2-1/4"
(57mm)
Inlet supply
3/4” NPT
* Check local codes
33-1/2"
(850mm)
15°
Max 19-11/16”
(Max 500mm)
These dimensions and specifications are subject to change without notice
