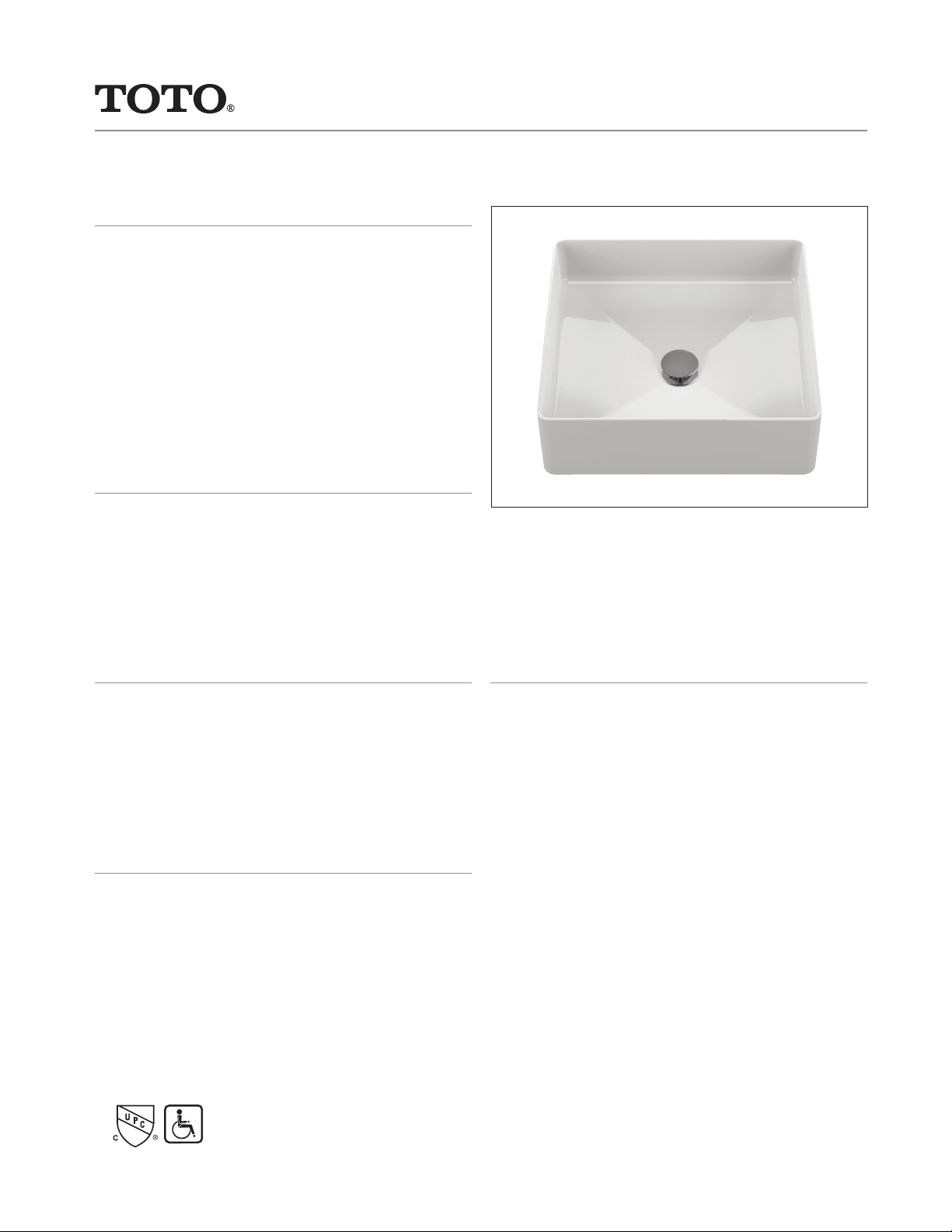

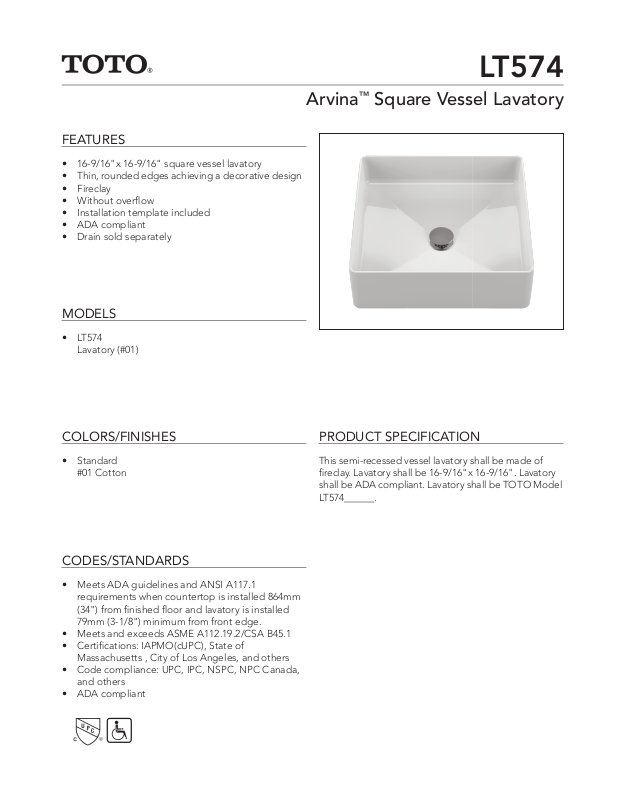

FEATURES
• 16-9/16"x 16-9/16" square vessel lavatory
• Thin, rounded edges achieving a decorative design
• Fireclay
• Without overfl ow
• Installation template included
• ADA compliant
• Drain sold separately
MODELS
• LT574
Lavatory (#01)
LT574
Arvina™ Square Vessel Lavatory
COLORS/FINISHES
• Standard
#01 Cotton
CODES/STANDARDS
• Meets ADA guidelines and ANSI A117.1
requirements when countertop is installed 864mm
(34") from fi nished fl oor and lavatory is installed
79mm (3-1/8") minimum from front edge.
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifi cations: IAPMO(cUPC), State of
Massachusetts , City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant
PRODUCT SPECIFICATION
This semi-recessed vessel lavatory shall be made of
fi reclay. Lavatory shall be 16-9/16"x 16-9/16". Lavatory
shall be ADA compliant. Lavatory shall be TOTO Model
LT574______.
Page 2

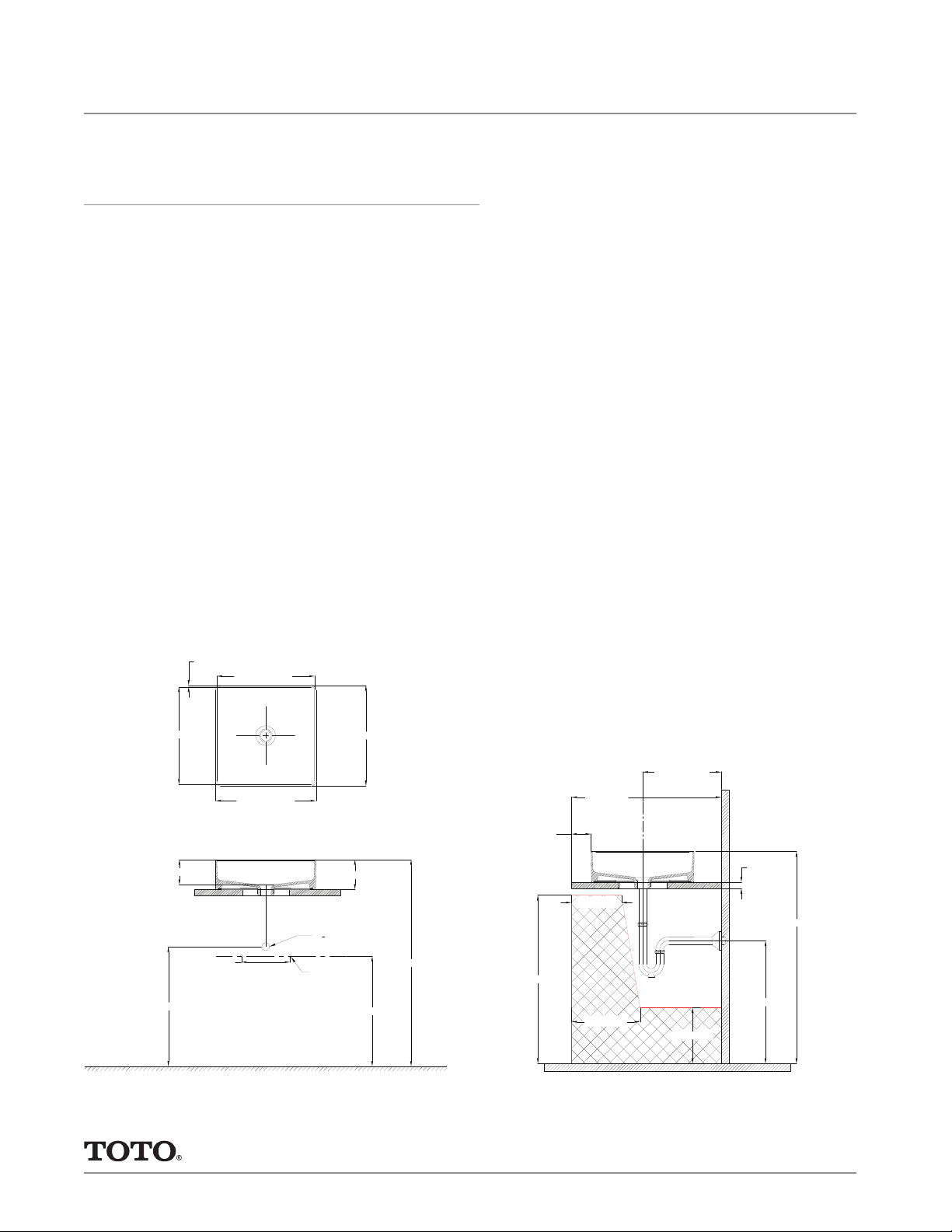

LT574
12 5/8" [320mm]
SPECIFICATIONS
• Waste 1-1/4" (32 mm)
• Size 16-9/16" x 16-9/16" (420 mm)
• Basin 16-1/16" x 16-1/16" (408 mm)
• Basin Depth 4-1/8" (105 mm)
• Warranty One Year Limited Warranty
• Material Fireclay
• Shipping Weight 19.75 lbs.
• Shipping Dimensions 18" x 18" x 8"
Arvina™ Vessel Lavatory
16 1/16" [408mm]
4 1/8" [105mm]
19 11/16" [500mm]
1/4" [6mm] REF.
16 1/16" [408mm]
8" [203mm]
*
16 9/16" [420mm]
* Suggested Dimensions
16 9/16" [420mm]
4 15/16" [125mm]
1
1
" *
4
WASTE
3/8" * SUPPLY
18 1/8" [460mm]
34" [864mm]
*
3 1/8" [79mm]
27" [686mm]
24" [610mm]
8" [203mm]
11" [279mm]
9" [228mm]
1" [25mm]
34" [864mm]
19 5/8" [500mm]
MAX
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
#SS-01214 v.01
