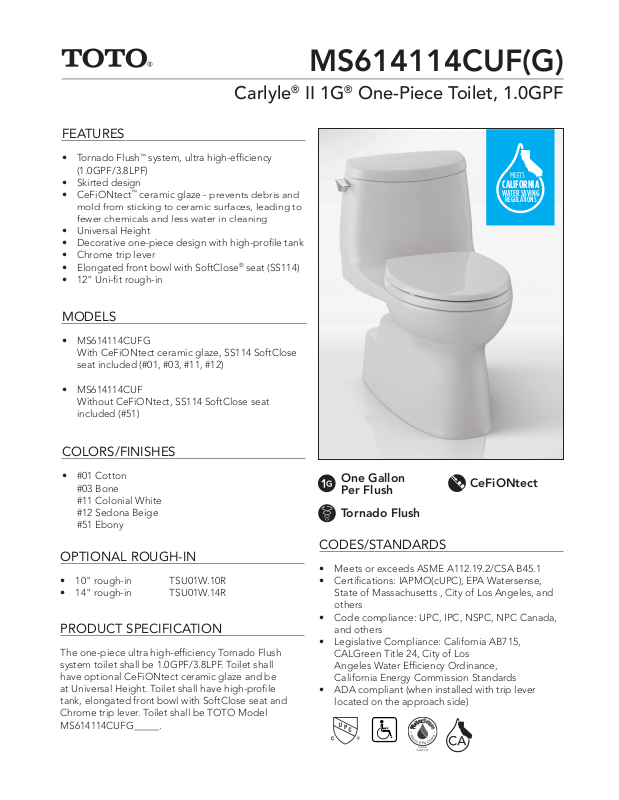

Page 1
Carlyle® II 1G® One-Piece Toilet, 1.0GPF
FEATURES
• Tornado Flush™ system, ultra high-efficiency
(1.0GPF/3.8LPF)
• Skirted design
• CeFiONtect™ ceramic glaze -
mold from sticking to ceramic surfaces, leading to
fewer chemicals and less water in cleaning
• Universal Height
• Decorative one-piece design with high-profile tank
• Chrome trip lever
• Elongated front bowl with SoftClose® seat (SS114)
• 12" Uni-fit rough-in
MODELS
• MS614114CUFG
With CeFiONtect ceramic glaze, SS114 SoftClose
seat included (#01, #03, #11, #12)
prevents debris and
MS614114CUF(G)
MEETS
CALIFORNIA
WATER SAVING
REGULATIONS
• MS614114CUF
Without CeFiONtect, SS114 SoftClose seat
included (#51)
COLORS/FINISHES
• #01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
#51 Ebony
OPTIONAL ROUGH-IN
• 10" rough-in TSU01W.10R
• 14" rough-in TSU01W.14R
PRODUCT SPECIFICATION
The one-piece ultra high-efficiency Tornado Flush
system toilet shall be 1.0GPF/3.8LPF. Toilet shall
have optional CeFiONtect ceramic glaze and be
at Universal Height. Toilet shall have high-profile
tank, elongated front bowl with SoftClose seat and
Chrome trip lever. Toilet shall be TOTO Model
MS614114CUFG_____.
One Gallon
Per Flush
CeFiONtect
Tornado Flush
CODES/STANDARDS
• Meets or exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), EPA Watersense,
State of Massachusetts , City of Los Angeles, and
others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715,
CALGreen Title 24, City of Los
Angeles Water Efficiency Ordinance,
California Energy Commission Standards
• ADA compliant (when installed with trip lever
located on the approach side)
Certified by
Page 2
MS614114CUF(G)
Carlyle® II 1G® One-Piece Toilet, 1.0GPF
SPECIFICATIONS
• Water Use 1.0 GPF/3.8LPF
• Flush System Tornado Flush
• Min. Water Pressure 8 psi (flowing)
• Water Surface 6-7/8" x 9-3/4"
• Trap Diameter 2-1/8"
• Rough-in 12"
• Trap Seal 2-1/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight 110 lbs.
• Shipping Dimensions 32"L x 20"W x 17-3/4" H1 x
28-3/4" H
™
2
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
These dimensions and specications are subject to change without notice
#SS-01100 V.08
