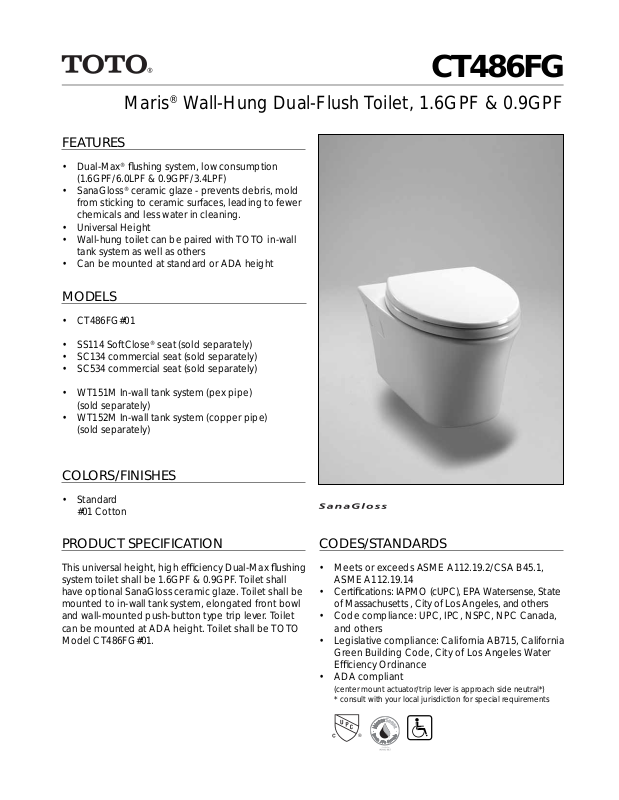

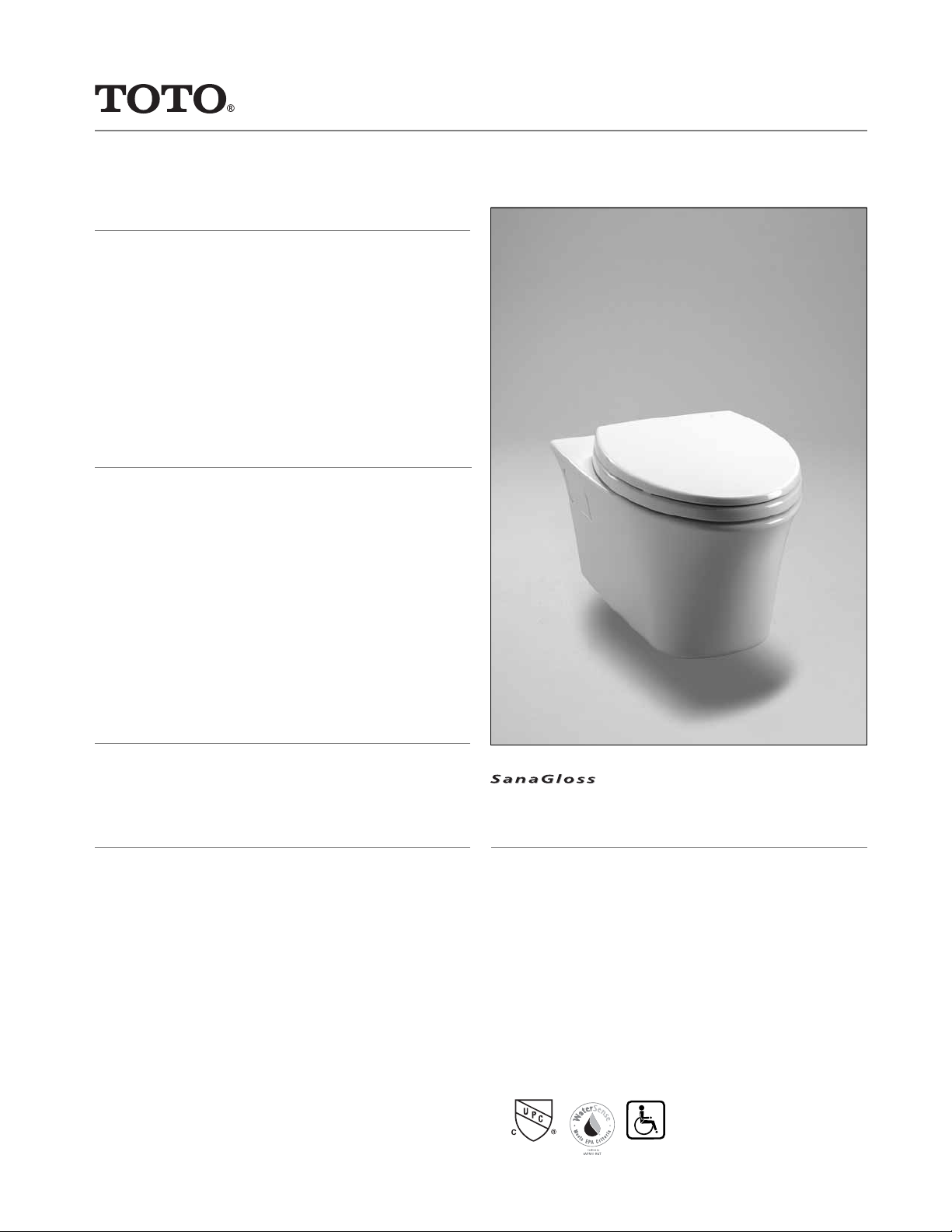

Maris® Wall-Hung Dual-Flush Toilet, 1.6GPF & 0.9GPF
FEATURES
• Dual-Max® fl ushing system, low consumption
(1.6GPF/6.0LPF & 0.9GPF/3.4LPF)
• SanaGloss® ceramic glaze - prevents debris, mold
from sticking to ceramic surfaces, leading to fewer
chemicals and less water in cleaning.
• Universal Height
• Wall-hung toilet can be paired with TOTO in-wall
tank system as well as others
• Can be mounted at standard or ADA height
MODELS
• CT486FG#01
• SS114 SoftClose® seat (sold separately)
• SC134 commercial seat (sold separately)
• SC534 commercial seat (sold separately)
CT486FG
• WT151M In-wall tank system (pex pipe)
(sold separately)
• WT152M In-wall tank system (copper pipe)
(sold separately)
COLORS/FINISHES
• Standard
#01 Cotton
PRODUCT SPECIFICATION
This universal height, high effi ciency Dual-Max fl ushing
system toilet shall be 1.6GPF & 0.9GPF. Toilet shall
have optional SanaGloss ceramic glaze. Toilet shall be
mounted to in-wall tank system, elongated front bowl
and wall-mounted push-button type trip lever. Toilet
can be mounted at ADA height. Toilet shall be TOTO
Model CT486FG#01.
CODES/STANDARDS
• Meets or exceeds ASME A112.19.2/CSA B45.1,
ASME A112.19.14
• Certifi cations: IAPMO (cUPC), EPA W atersense, State
of Massachusetts , City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative compliance: California AB715, California
Green Building Code, City of Los Angeles Water
Effi ciency Ordinance
• ADA compliant
(center mount actuator/trip lever is approach side neutral*)
* consult with your local jurisdiction for special requirements
Page 2

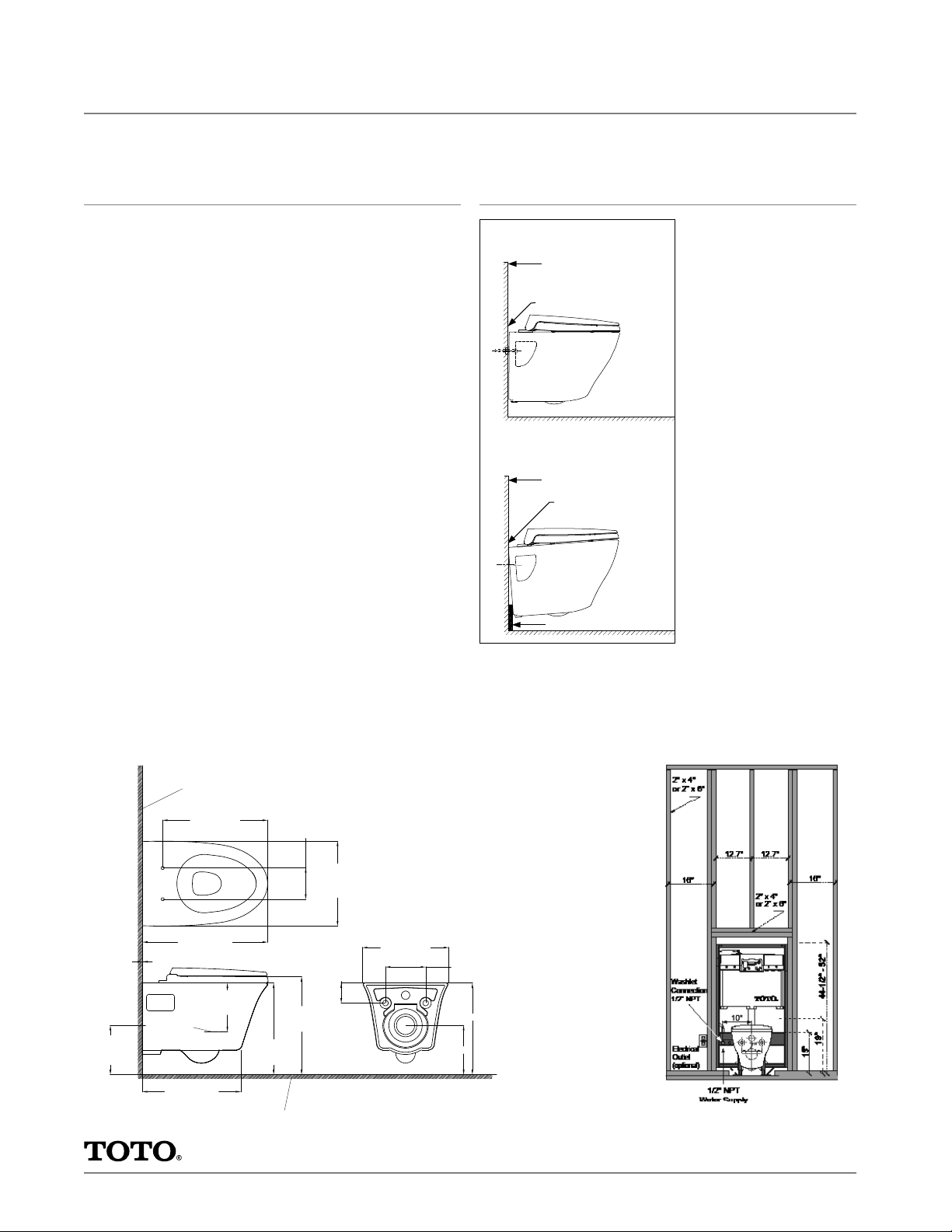

CT486FG
FINISHED WALL
FINISHED FLOOR
16-3/16"
(410mm)
8-11/16"
(220mm)
17-5/16"
(439mm)
8-9/16"
(218mm)
WATER LEVEL
1/16"
(2mm)
15-1/4"
(387mm)
16-3/16" (410mm)
8-11/16" (220mm)
7-1/16"
(180mm)
22-1/16"
(560mm)
18-1/2"
(470mm)
5-9/16"
(142mm)
14-15/16"
(380mm)
17-5/16"
(440mm)
3-9/16"
(90mm)
Maris® Wall-Hung Dual-Flush Toilet, 1.6GPF & 0.9 GPF
SPECIFICATIONS
• Water Use 1.6 GPF & 0.9GPF
(6.0 LPF & 3.4LPF)
• Flush System Dual-fl ush
• Min. Water Pressure 8 psi (static)
• Water Surface 4-1/8" X 5-1/8"
• Trap Diameter 2-1/8"
• Installation Height 15" to 19"
• Trap Seal 2-1/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight CT486FG - 65lbs
• Shipping Dimensions CT486FG
23-5/8" L X 15-3/4"W
X 17.5" H
INSTALLATION NOTES
Proper Installation
finished wall
Back of toilet even with installation surface.
1/16” Wall gap
Improper Installation
finished wall
Ø Uneven Wall Gap
Baseboard
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
Duofi t™ In-wall Tank System is
sold separately
These dimensions and specifi cations are subject to change without notice
# SS-00628 V.01
Printed in U.S.A. | © TOTO USA 05/12 | Printed on recycled paper ♻
