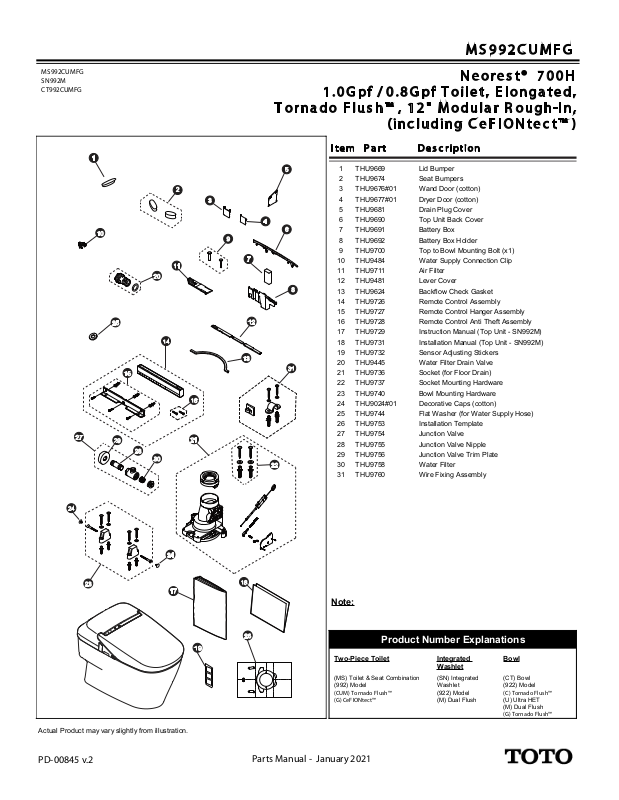

MS992CUMFG
N e or e s t® 7 0 0 H
Note:
I t em
P a rt
De s c ript i o n
Actual Product may vary slightly from illustration.
2822
3840
3841
3842
3843
3844
3845
3846
3847
3848
3849
3850
3851
3852
3853
3854
3855
3856
3857
3858
3859
3860
3861
3862
3863
3864
3865
3866
3867
3868
3869
SN992M
CT992CUMFG
M S 9 92 C U M F G
1 . 0 G pf / 0 .8 G p f T o il e t, E l ong a te d,
T o rn a do F lus h™ , 1 2 " M odul a r R o u gh -I n,
(inc lu di ng C e F I O N t e c t ™ )
1
5
2
3
4
10
11
20
25
14
15
16
27
29
28
30
21
9
7
12
13
6
8
31
22
1 THU9669 Lid Bumper
2 THU9674 Seat Bumpers
3 THU9676#01 Wand Door (cotton)
4 THU9677#01 Dryer Door (cotton)
5 THU9681 Drain Plug Cover
6 THU9690 Top Unit Back Cover
7 THU9691 Battery Box
8 THU9692 Battery Box Holder
9 THU9700 Top to Bowl Mounting Bolt (x1)
10 THU9484 Water Supply Connection Clip
11 THU9711 Air Filter
12 THU9481 Lever Cover
13 THU9624 Backflow Check Gasket
14 THU9726 Remote Control Assembly
15 THU9727 Remote Control Hanger Assembly
16 THU9728 Remote Control Anti Theft Assembly
17 THU9729 Instruction Manual (Top Unit - SN992M)
18 THU9731 Installation Manual (Top Unit - SN992M)
19 THU9732 Sensor Adjusting Stickers
20 THU9445 Water Filter Drain Valve
21 THU9736 Socket (for Floor Drain)
22 THU9737 Socket Mounting Hardware
23 THU9740 Bowl Mounting Hardware
24 THU9024#01 Decorative Caps (cotton)
25 THU9744 Flat Washer (for Water Supply Hose)
26 THU9753 Installation Template
27 THU9754 Junction Valve
28 THU9755 Junction Valve Nipple
29 THU9756 Junction Valve Trim Plate
30 THU9758 Water Filter
31 THU9760 Wire Fixing Assembly
24
23
PD-00845 v.2
24
18
17
26
19
Parts Manual - January 2021
Product Number Explanations
Two-Piece Toilet
(MS) Toilet & Seat Combination
(992) Model
(CUM) Tornado Flush™
(G) CeFIONtect™
Integrated
Washlet
(SN) Integrated
Washlet
(922) Model
(M) Dual Flush
Bowl
(CT) Bowl
(922) Model
(C) Tornado Flush™
(U) Ultra HET
(M) Dual Flush
(G) Tornado Flush™
