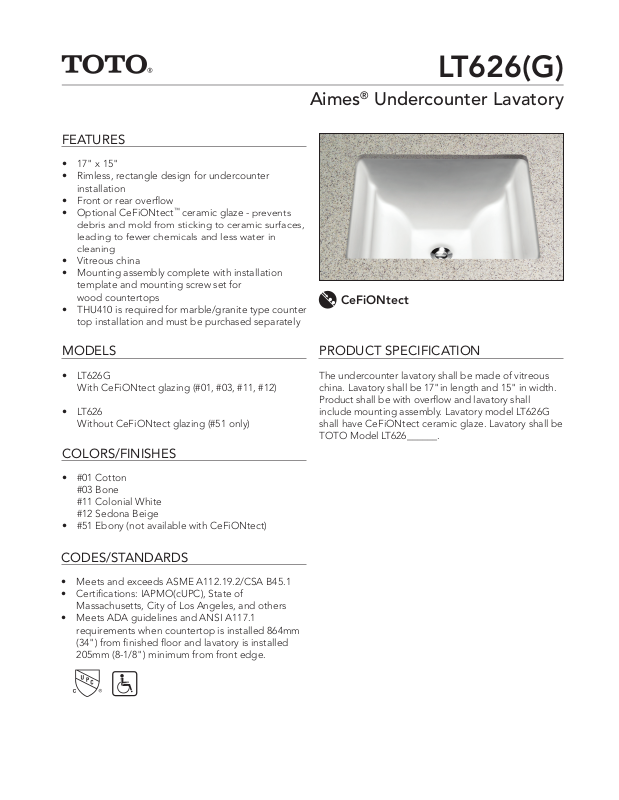

Page 1
FEATURES
• 17" x 15"
• Rimless, rectangle design for undercounter
installation
• Front or rear overflow
• Optional CeFiONtect™ ceramic glaze -
debris and mold from sticking to ceramic surfaces,
leading to fewer chemicals and less water in
cleaning
• Vitreous china
• Mounting assembly complete with installation
template and mounting screw set for
wood countertops
• THU410 is required for marble/granite type counter
top installation and must be purchased separately
prevents
LT626(G)
Aimes® Undercounter Lavatory
CeFiONtect
MODELS
• LT626G
With CeFiONtect glazing (#01, #03, #11, #12)
• LT626
Without CeFiONtect glazing (#51 only)
COLORS/FINISHES
• #01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
• #51 Ebony (not available with CeFiONtect)
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), State of
Massachusetts, City of Los Angeles, and others
• Meets ADA guidelines and ANSI A117.1
requirements when countertop is installed 864mm
(34") from finished floor and lavatory is installed
205mm (8-1/8") minimum from front edge.
PRODUCT SPECIFICATION
The undercounter lavatory shall be made of vitreous
china. Lavatory shall be 17"in length and 15" in width.
Product shall be with overflow and lavatory shall
include mounting assembly. Lavatory model LT626G
shall have CeFiONtect ceramic glaze. Lavatory shall be
TOTO Model LT626______.
Page 2
18”
(457 mm)*
21”
(533 mm)*
SUPPLIES
1-1/4” (32 mm) O.D. WASTE
*Suggested Dimension
34”
(863 mm)*
7-7/8”
(200 mm)
3/4” (19 mm)
17”
(431 mm)
15” (381 mm)
BASIN DEPTH
19” (482 mm)
8.5”
(215 mm)
17” (432 mm)
BASIN WIDTH
Mounting Hardware
LT626(G)
Aimes® Undercounter Lavatory
SPECIFICATIONS INSTALLATION NOTES
• Waste 1-1/4" O.D.
• Size 19"W x 17"D
• Basin 17"W x 15"D
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight 24.5 lbs.
• Shipping Dimensions 22-1/4"W x 18-3/4"D x
9-3/4"H
19” (482 mm)
8.5”
(215 mm)
17” (432 mm)
BASIN WIDTH
15” (381 mm)
BASIN DEPTH
3/4” (19 mm)
(431 mm)
Wood/Composite Wood/Etc.
THU408 or THU409
(Included)
17”
11-1/4”
(286 mm)
4.5”
14 mm)
Marble/Granite/Etc.
THU410
(Sold Separately)
(533 mm)*
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
SUPPLIES
21”
18”
(457 mm)*
7-7/8”
(200 mm)
1-1/4” (32 mm) O.D. WASTE
*Suggested Dimension
8”
(203 mm)
34”
(863 mm)*
27”
(686 mm)
6”
(152 mm)
9”
(229 mm)
17”
(432 mm)
ADA Requirements
These dimensions and specications are subject to change without notice
34”
MAX
(864 mm)
#SS-00437 v.05
