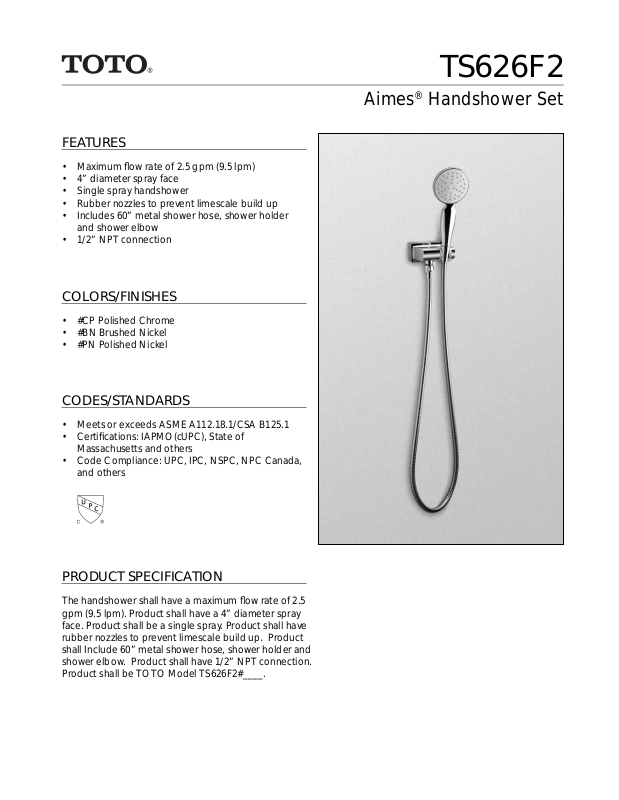

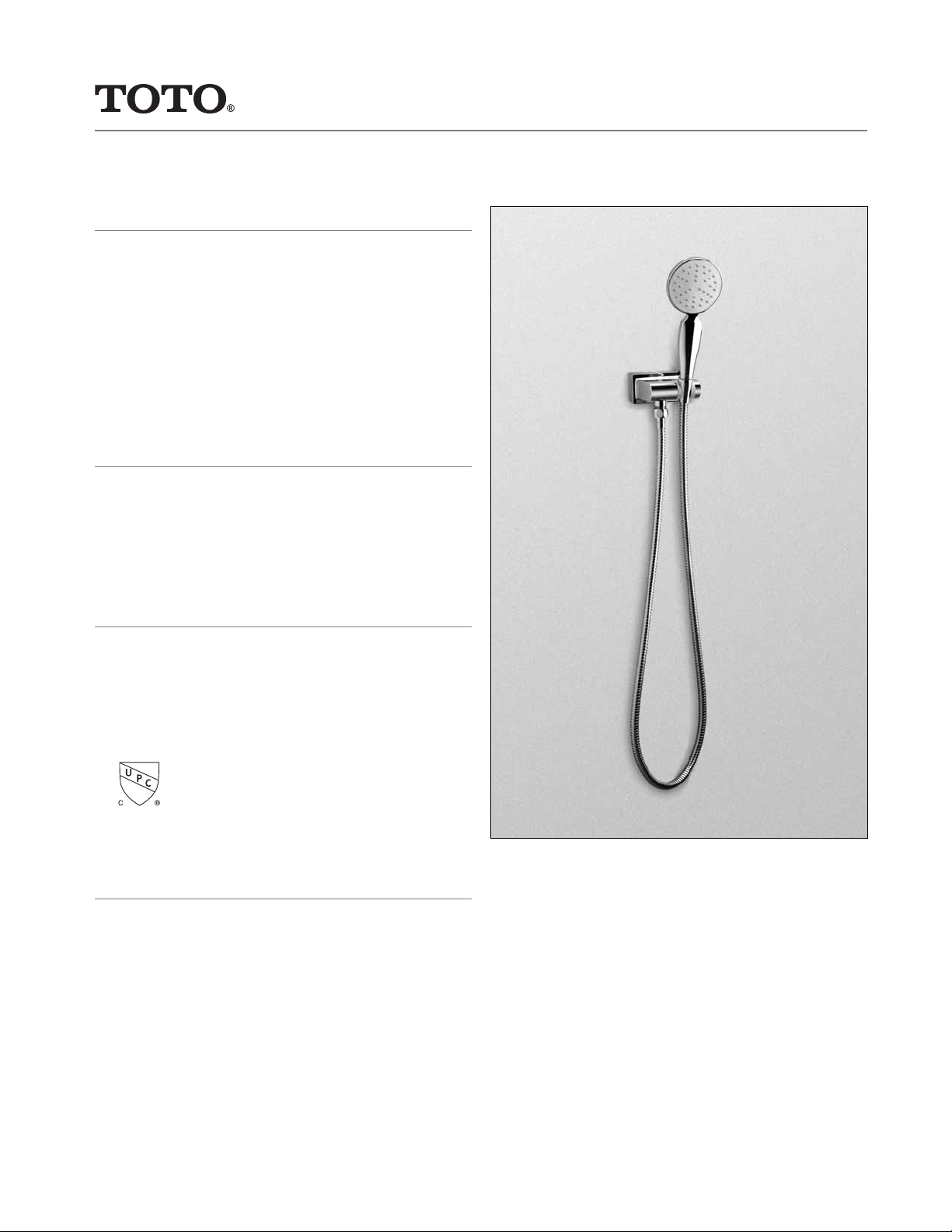

FEATURES
• Maximum fl ow rate of 2.5 gpm (9.5 lpm)
• 4” diameter spray face
• Single spray handshower
• Rubber nozzles to prevent limescale build up
• Includes 60” metal shower hose, shower holder
and shower elbow
• 1/2” NPT connection
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
TS626F2
Aimes® Handshower Set
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifi cations: IAPMO(cUPC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
PRODUCT SPECIFICATION
The handshower shall have a maximum fl ow rate of 2.5
gpm (9.5 lpm). Product shall have a 4” diameter spray
face. Product shall be a single spray. Product shall have
rubber nozzles to prevent limescale build up. Product
shall Include 60” metal shower hose, shower holder and
shower elbow. Product shall have 1/2” NPT connection.
Product shall be TOTO Model TS626F2#____.
Page 2
TS626F2

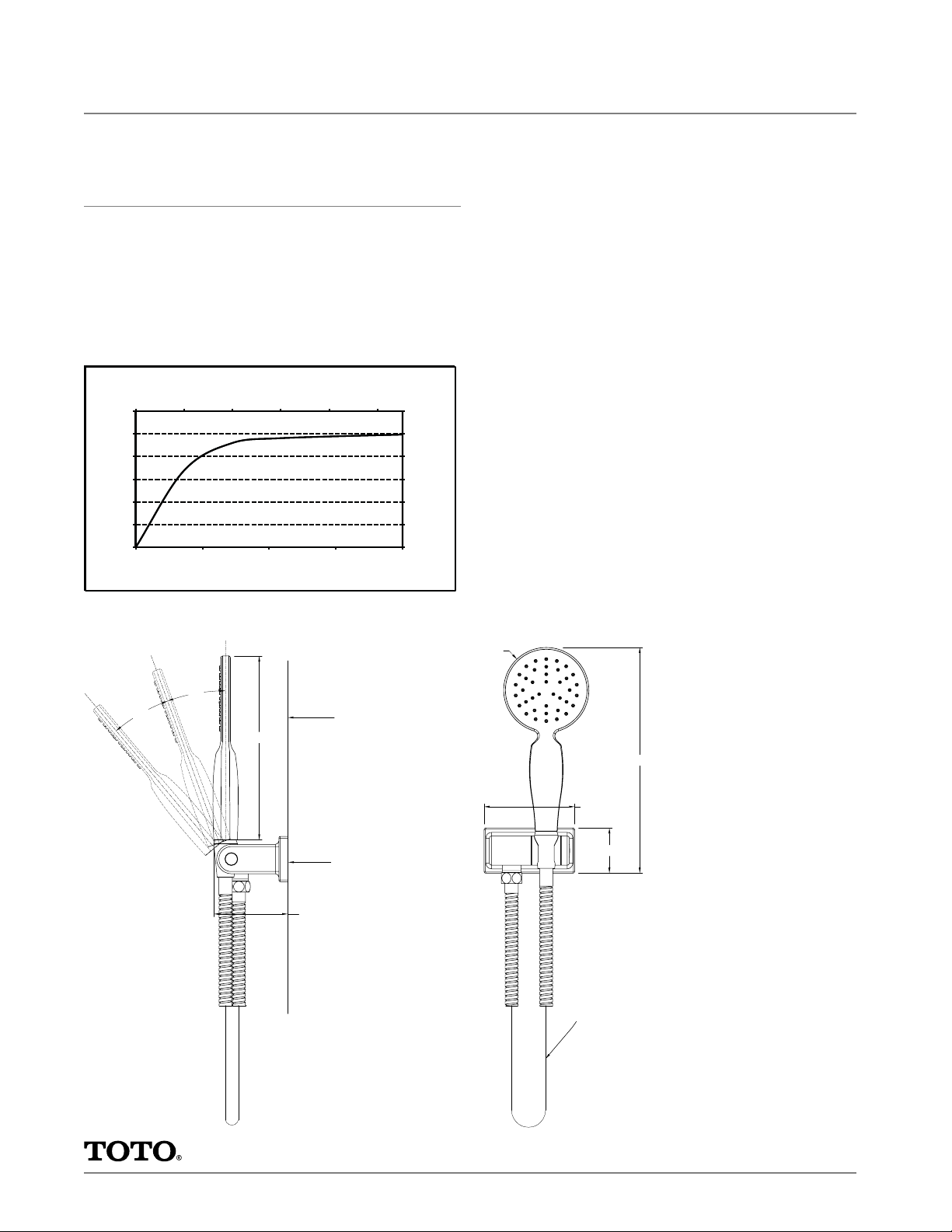

SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Shipping Weight 4.4 lbs.
• Shipping Dimensions 11"L x 12-3/8"W x
3-5/8"H
• Maximum Flow Rate 2.5 gpm (9.51 lpm)
Aimes® Handshower Set
0 100 200 300 400 500
3.0
2.5
2.0
1.5
1.0
Flow rate (gpm)
0.5
0.0
0.0 20.0 40.0 60.0 80.0
20°
20°
Pressure (kPa)
Pressure (psi)
Finished Shower Wall
8 1/8" (207mm)
11. 4
9.5
Flow rate (lpm)
7.6
5.7
3.8
1.9
0.0
ø3-3/4" (ø96mm)
10" (254mm)
4" (102mm)
1/2" NPT
3-1/4" (83mm)
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
2" (51mm)
L= 60" (1500mm)
These dimensions and specifi cations are subject to change without notice
#SS-00588, v.04
Printed in U.S.A. | © TOTO USA 09/10 | Printed on recycled paper ƛ
