Page 1

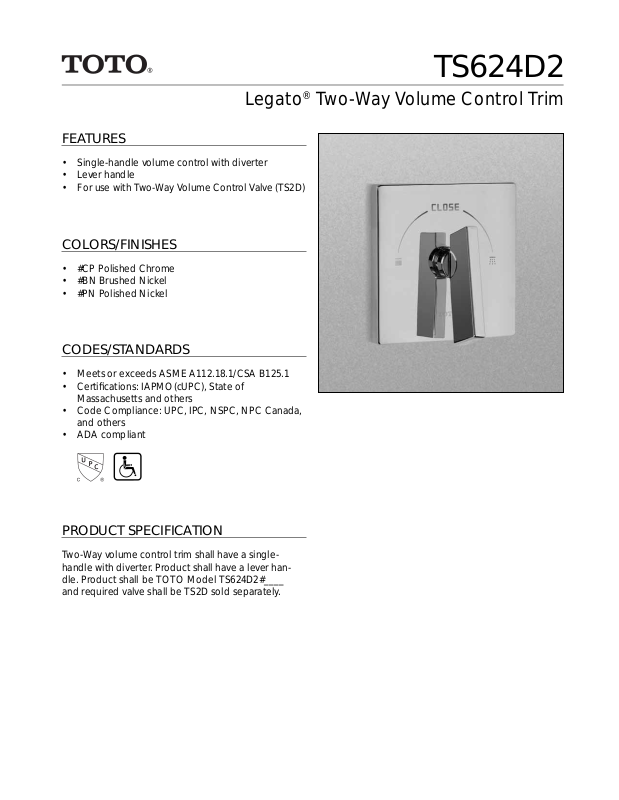

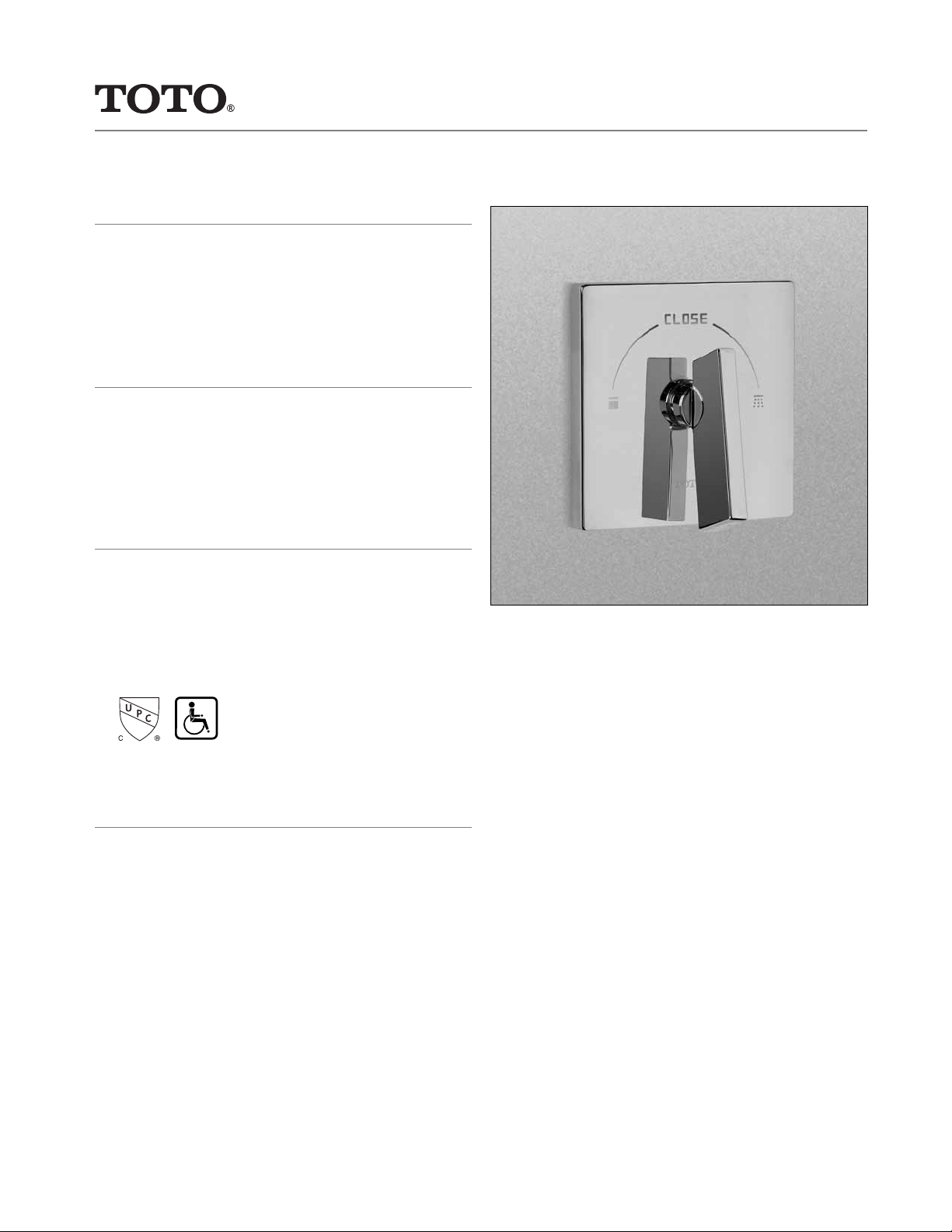

Legato® Two-Way Volume Control Trim
FEATURES
• Single-handle volume control with diverter
• Lever handle
• For use with Two-Way Volume Control Valve (TS2D)
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
CODES/STANDARDS
TS624D2
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifi cations: IAPMO(cUPC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant
PRODUCT SPECIFICATION
Two-Way volume control trim shall have a singlehandle with diverter. Product shall have a lever handle. Product shall be TOTO Model TS624D2#____
and required valve shall be TS2D sold separately.

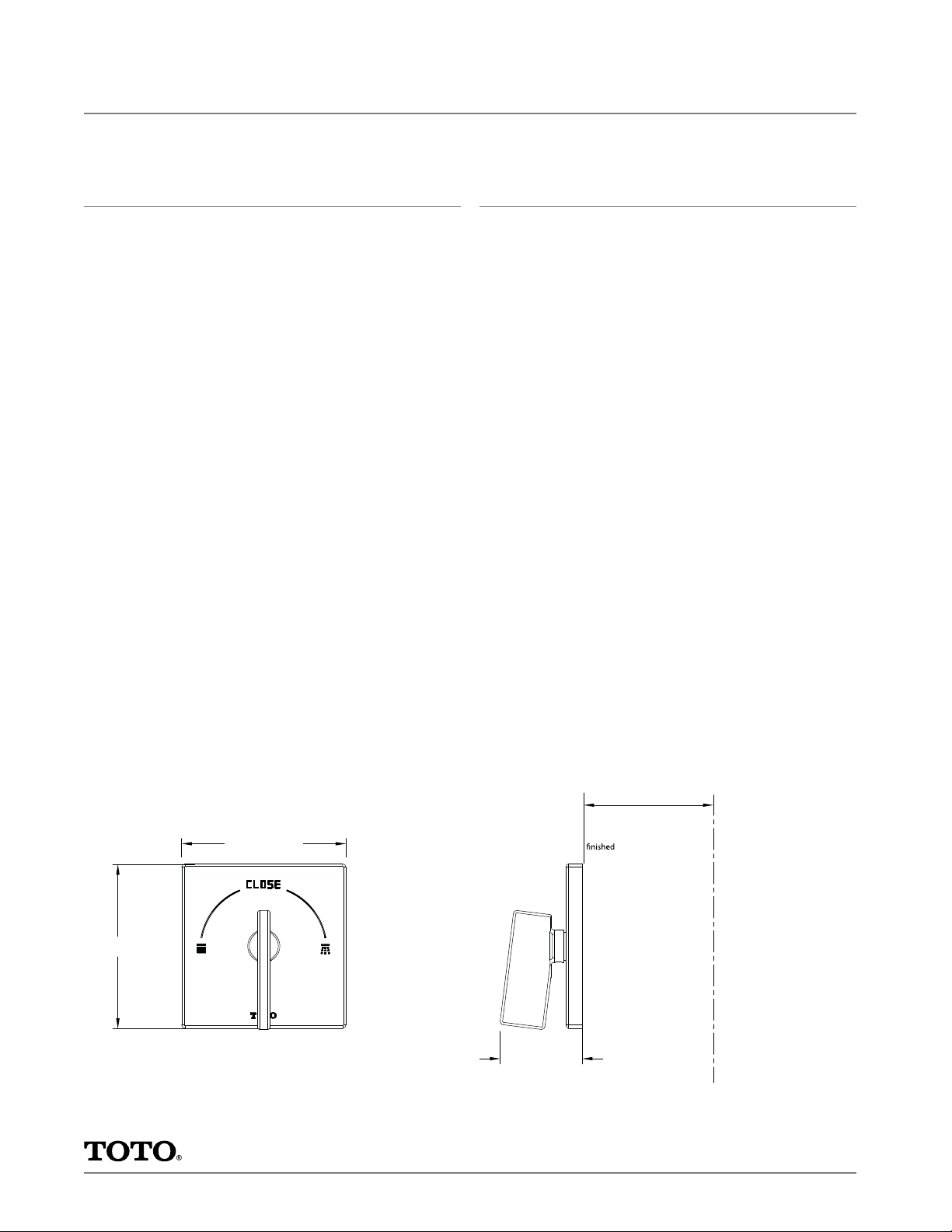

Page 2
TS624D2
Legato® Two-Way Volume Control Trim
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Weight 4.4 lbs.
• Shipping Dimensions 11"L x 12-3/8"W x 3-5/8"H
INSTALLATION NOTES
VALVE REQUIRED:
Two-Way volume control valve model TS2D sold
separately.
4" (102mm)
4" (102mm)
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
Min: 2-1/2" (65mm)
Max: 3-3/4" (95mm)
Surface of
wall
cL of
valve
2" (51mm)
These dimensions and specifi cations are subject to change without notice
Printed in U.S.A. | © TOTO USA 03/11 | Printed on recycled paper ƛ
#SS-00563, v.01
