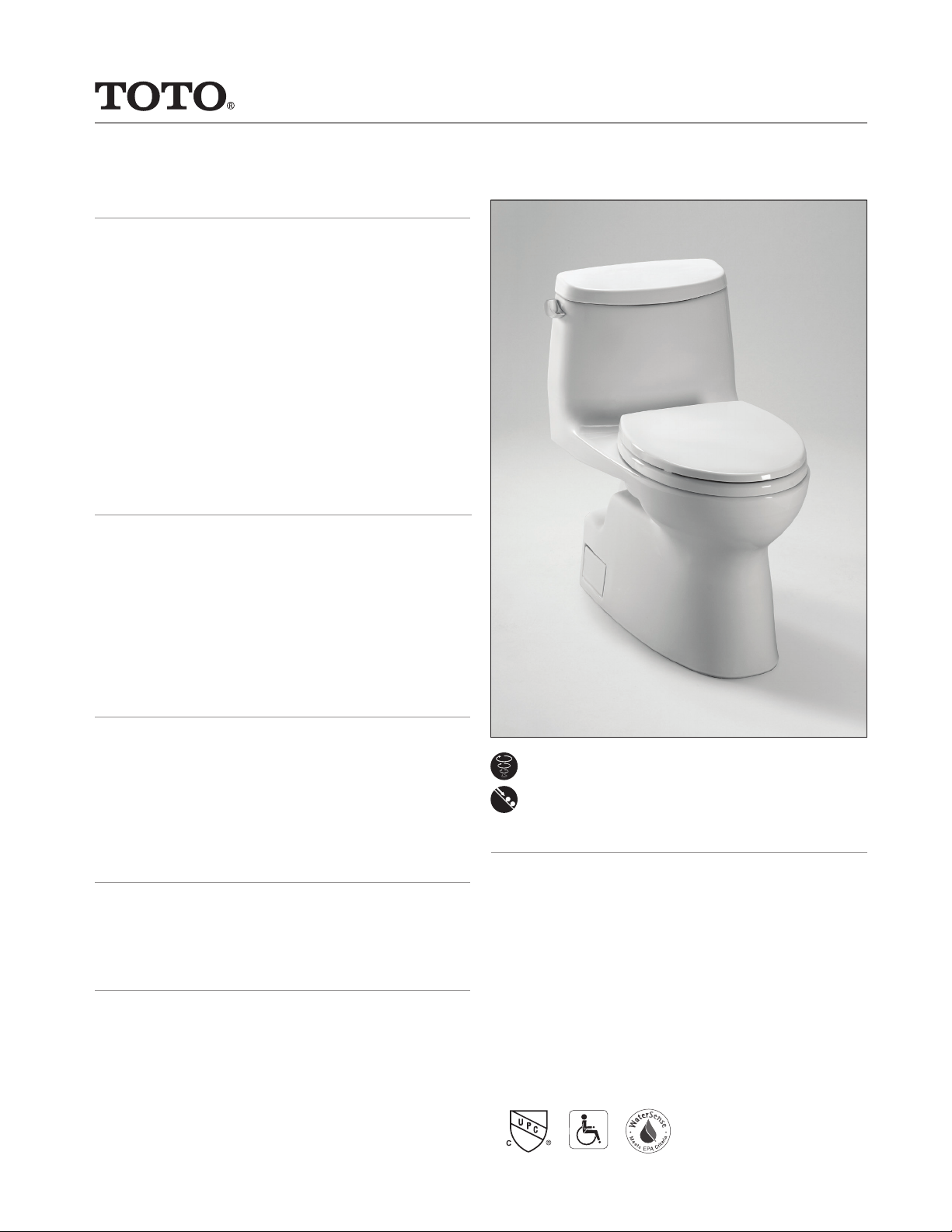

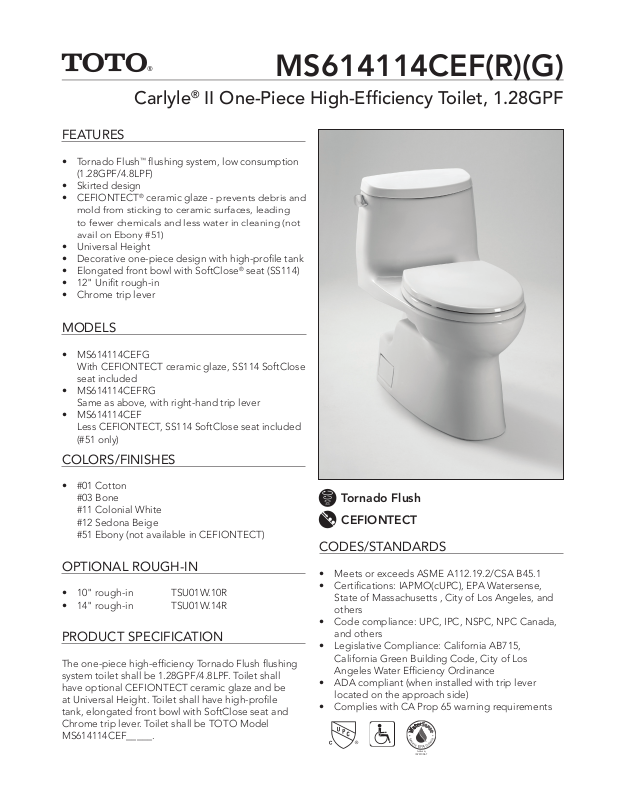

MS614114CEF(R)(G)

Carlyle® II One-Piece High-Efciency Toilet, 1.28GPF

FEATURES

• Tornado Flush™ ushing system, low consumption (1.28GPF/4.8LPF)

• Skirted design

• CEFIONTECT® ceramic glaze -

mold from sticking to ceramic surfaces, leading to fewer chemicals and less water in cleaning (not avail on Ebony #51)

• Universal Height

• Decorative one-piece design with high-prole tank

• Elongated front bowl with SoftClose® seat (SS114)

• 12" Unit rough-in

• Chrome trip lever

MODELS

• MS614114CEFG

With CEFIONTECT ceramic glaze, SS114 SoftClose

seat included

• MS614114CEFRG

Same as above, with right-hand trip lever

• MS614114CEF

Less CEFIONTECT, SS114 SoftClose seat included (#51 only)

prevents debris and

COLORS/FINISHES

• #01 Cotton

#03 Bone #11 Colonial White #12 Sedona Beige #51 Ebony (not available in CEFIONTECT)

OPTIONAL ROUGH-IN

• 10" rough-in TSU01W.10R

• 14" rough-in TSU01W.14R

PRODUCT SPECIFICATION

The one-piece high-efciency Tornado Flush ushing system toilet shall be 1.28GPF/4.8LPF. Toilet shall have optional CEFIONTECT ceramic glaze and be at Universal Height. Toilet shall have high-prole tank, elongated front bowl with SoftClose seat and Chrome trip lever. Toilet shall be TOTO Model

MS614114CEF_____.

Tornado Flush

CEFIONTECT

CODES/STANDARDS

• Meets or exceeds ASME A112.19.2/CSA B45.1

• Certications: IAPMO(cUPC), EPA Watersense, State of Massachusetts , City of Los Angeles, and others

• Code compliance: UPC, IPC, NSPC, NPC Canada, and others

• Legislative Compliance: California AB715, California Green Building Code, City of Los Angeles Water Efciency Ordinance

• ADA compliant (when installed with trip lever located on the approach side)

• Complies with CA Prop 65 warning requirements

Certiﬁed by

Page 2

MS614114CEF(R)(G)

YES NO

Carlyle® II One-Piece high-Efciency Toilet, 1.28GPF

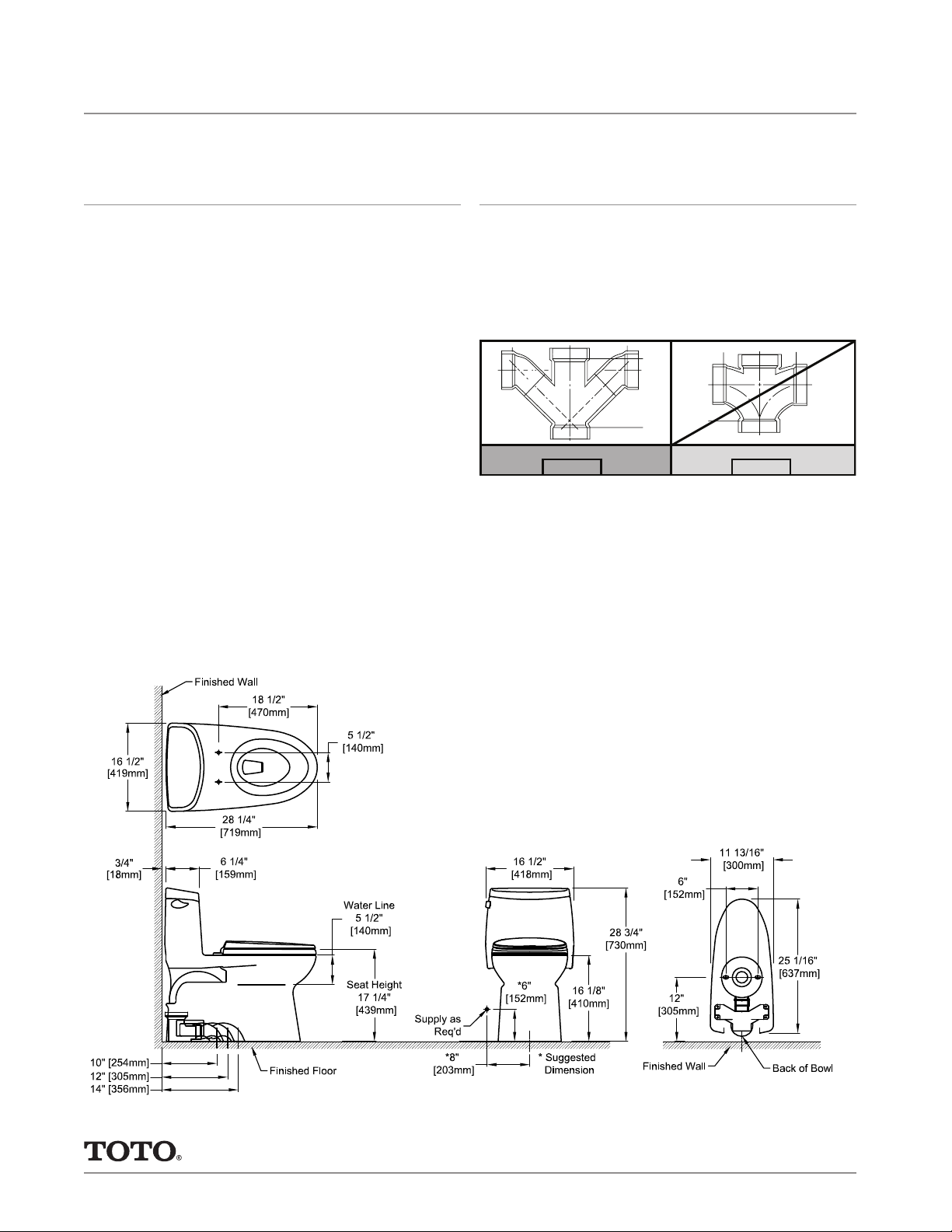

SPECIFICATIONS

• Water Use 1.28 GPF/4.8LPF

• Flush System Tornado Flush

• Min. Water Pressure 8 psi (owing)

• Water Surface 6-7/8" x 9-3/4"

• Trap Diameter 2-1/8"

• Rough-in 12"

• Trap Seal 2-1/8"

• Warranty One Year Limited Warranty

• Material Vitreous china

• Shipping Weight 110 lbs.

• Shipping Dimensions 32"L x 20"W x 17-3/4" H1 x 28-3/4" H

INSTALLATION NOTES

Back-to-Back Toilet Installations: TOTO recommends the use of a nationally listed,

double sanitary tee-wye only, in vertical waste stacks, in accordance with the stipulations noted in the majority of nationally recognized plumbing codes.

Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend

To maintain adequate wall gap between the back of

the tank and wall, mount the ﬂoor ﬂange at a nominal 12” rough-in distance.

These dimensions and specications are subject to change without notice
