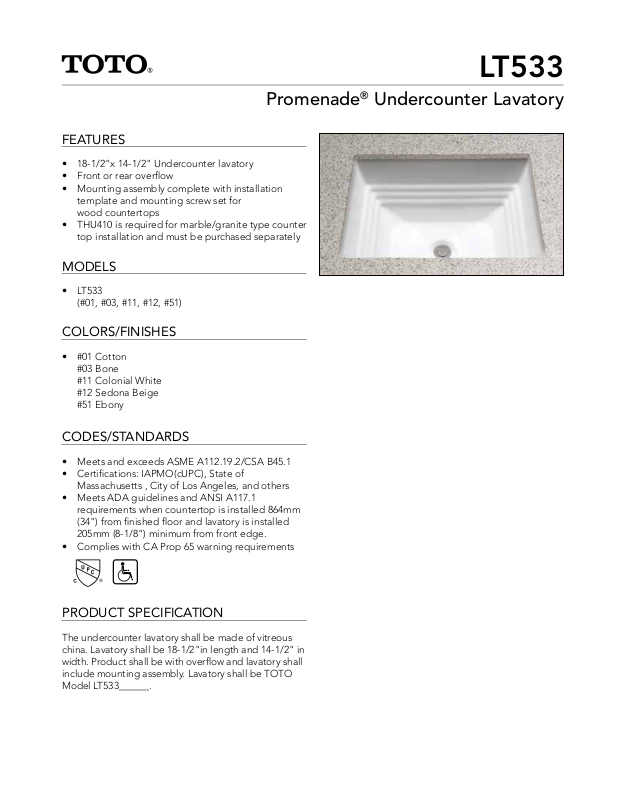

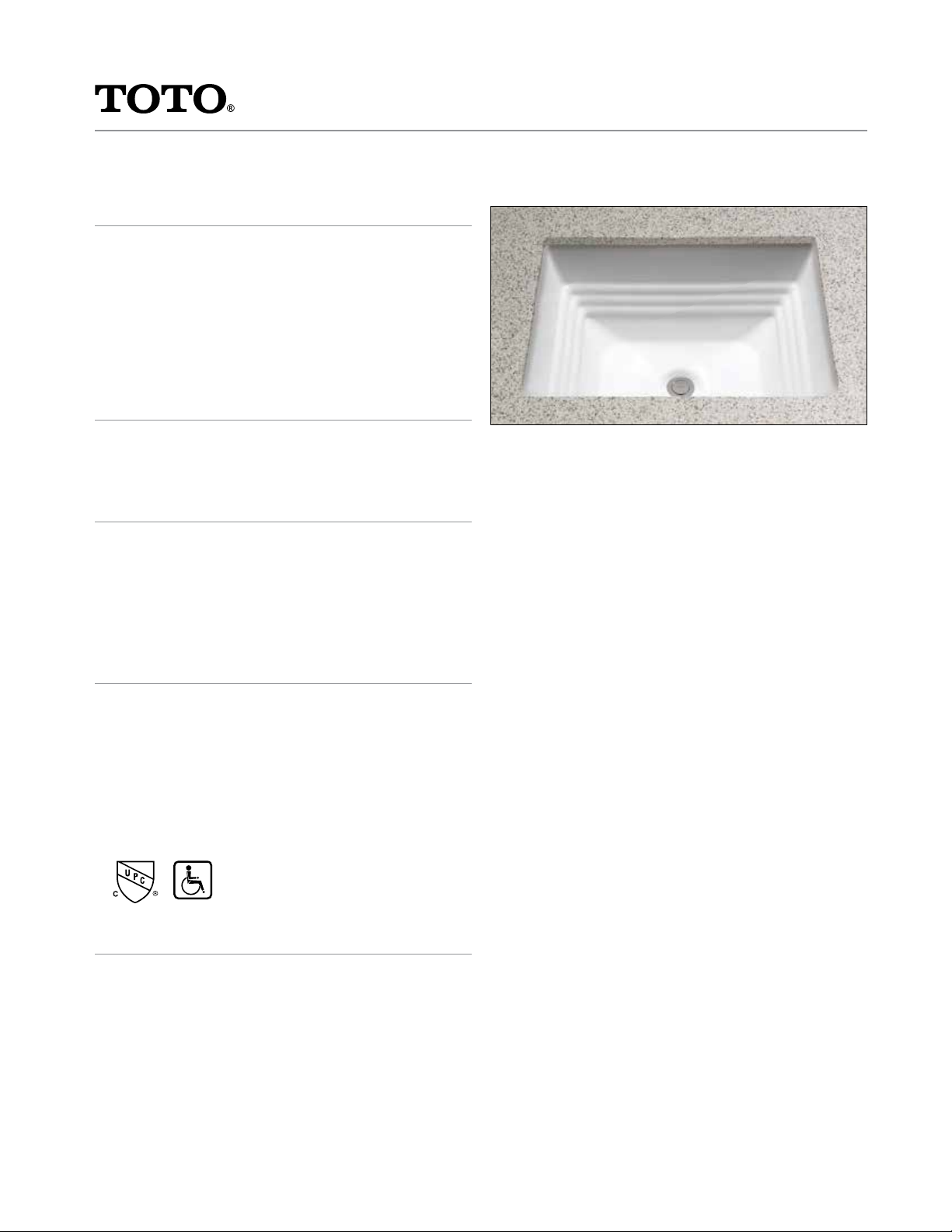

TOTO TOT4820 Specifications

Promenade® Undercounter Lavatory

FEATURES

• 18-1/2"x 14-1/2" Undercounter lavatory

• Front or rear overflow

• Mounting assembly complete with installation
template and mounting screw set for

wood countertops

• THU410 is required for marble/granite type counter
top installation and must be purchased separately

MODELS

• LT533

(#01, #03, #11, #12, #51)

COLORS/FINISHES

• #01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige

#51 Ebony

LT533

CODES/STANDARDS

• Meets and exceeds ASME A112.19.2/CSA B45.1

• Certifications: IAPMO(cUPC), State of
Massachusetts , City of Los Angeles, and others

• Meets ADA guidelines and ANSI A117.1
requirements when countertop is installed 864mm
(34") from finished floor and lavatory is installed
205mm (8-1/8") minimum from front edge.

• Complies with CA Prop 65 warning requirements

PRODUCT SPECIFICATION

The undercounter lavatory shall be made of vitreous
china. Lavatory shall be 18-1/2"in length and 14-1/2" in
width. Product shall be with overflow and lavatory shall
include mounting assembly. Lavatory shall be TOTO
Model LT533______.

LT533

ADA Compliance Check

Mounting Hardware

Promenade® Undercounter Lavatory

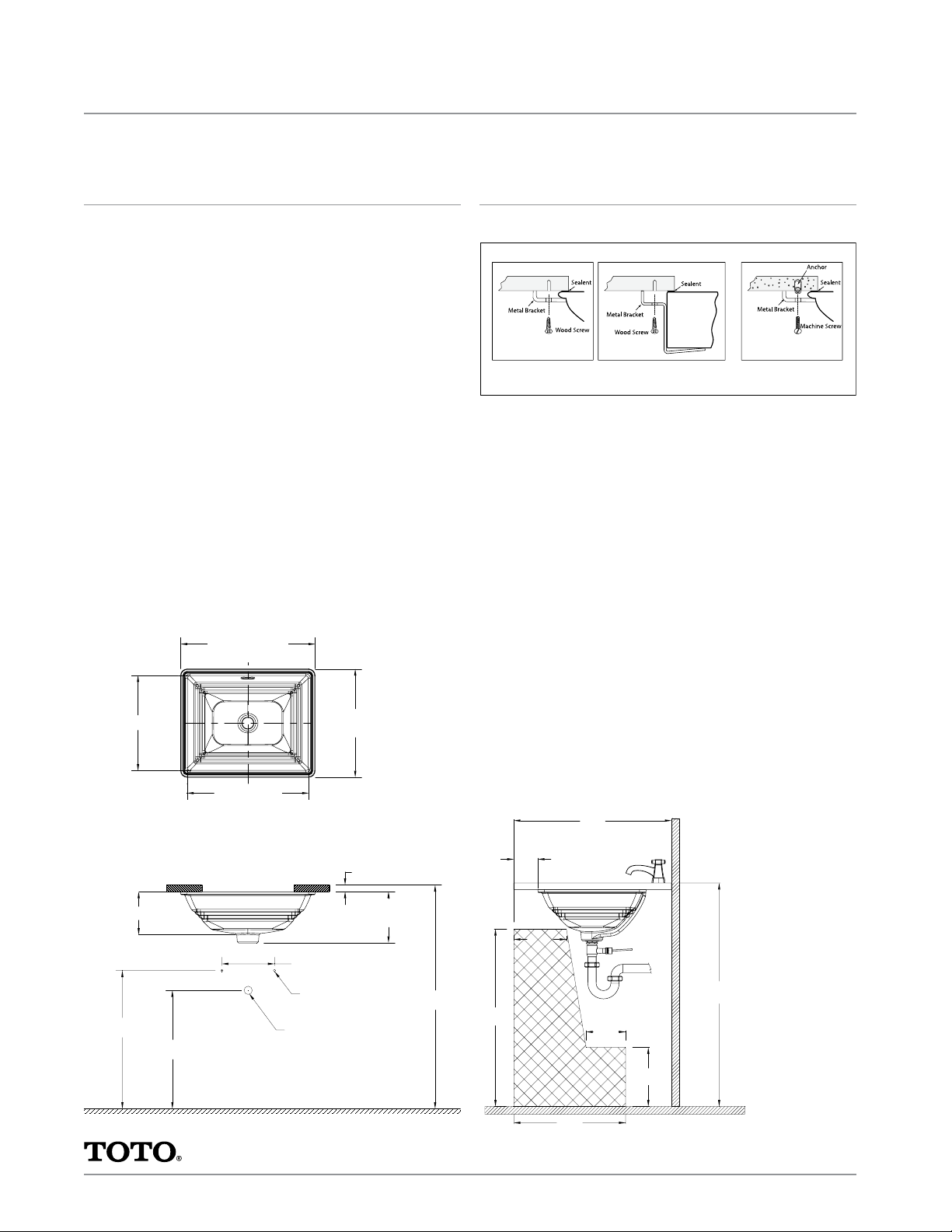

SPECIFICATIONS INSTALLATION NOTES

• Waste 1-1/4" O.D.

• Size 20-1/2"W x 16-1/2"D

• Basin 18-1/2"W x 14-1/2"D

• Warranty One Year Limited Warranty

• Material Vitreous china

• Shipping Weight 25 lbs.

• Shipping Dimensions 22-1/4"W X 18-3/4"D X
9-3/4H"

Wood/Composite Wood/Etc.

THU408 or THU409

(Included)

Marble/Granite/Etc.

THU410

(Sold Separately)

14-1/2" (368 mm)

6-3/8" (162 mm)

21" * (533 mm)

18" * (457 mm)

20-1/2” (520 mm)

18-1/2" (470 mm)

* Suggested Dimensions

16-1/2” (418 mm)

8" * (203 mm)

3/8" * SUPPLY

1-1/4” * WASTE

1" (25mm)

7-13/16" (198 mm)

34" (864 mm)

ADA Compliance Check
Note: Overflow must be at rear

24”

(610mm)

3-5/8”

(93mm)

MINIMUM

8”

(203mm)

27”

(686mm)

6”

(152mm)

9”

(229mm)

34”

(864mm)

17”

(432mm)

These dimensions and specifications are subject to change without notice

# SS-00449 v.04Ph: [phone] | Fax: [phone] | www.totousa.com | © TOTO USA
