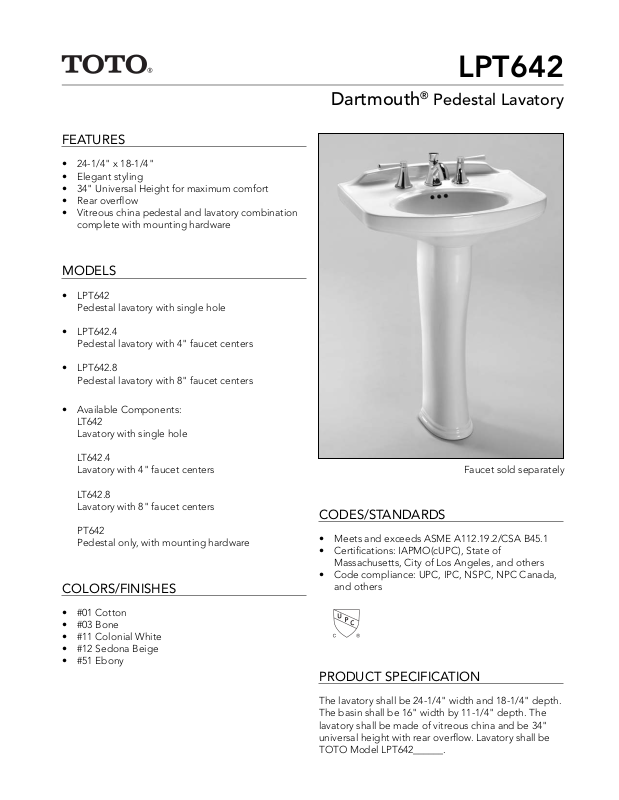

Page 1
LPT642
FEATURES
• 24-1/4" x 18-1/4"
• Elegant styling
• 34" Universal Height for maximum comfort
• Rear overfl ow
• Vitreous china pedestal and lavatory combination
complete with mounting hardware
MODELS
• LPT642
Pedestal lavatory with single hole
• LPT642.4
Pedestal lavatory with 4" faucet centers
• LPT642.8
Pedestal lavatory with 8" faucet centers
Dartmouth
®
Pedestal Lavatory
• Available Components:
• LT642
Lavatory with single hole
• LT642.4
Lavatory with 4" faucet centers
• LT642.8
Lavatory with 8" faucet centers
• PT642
Pedestal only, with mounting hardware
COLORS/FINISHES
• #01 Cotton
• #03 Bone
• #11 Colonial White
• #12 Sedona Beige
• #51 Ebony
Faucet sold separately
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifi cations: IAPMO(cUPC), State of
Massachusetts, City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
PRODUCT SPECIFICATION
The lavatory shall be 24-1/4" width and 18-1/4" depth.
The basin shall be 16" width by 11-1/4" depth. The
lavatory shall be made of vitreous china and be 34"
universal height with rear overfl ow. Lavatory shall be
TOTO Model LPT642______.
Page 2
(
LPT642
Dartmouth® Pedestal Lavatory
SPECIFICATIONS
• Waste 1-1/4" O.D.
• Size 24-1/4"W x 18-1/4"D
• Basin 16"W x 11-1/4"D
• Height: Floor to Rim 34"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight LT642/LT642.4/LT642.8
44 lbs.
PT642
24.5 lbs.
• Shipping Dimensions LT642/LT642.4/LT642.8
25"W X 19-1/4"D X
10-1/2"H
PT642
30-1/2"L x 8-3/4"W x
9-3/4"H
INSTALLATION NOTES
Requires PT642 pedestal for support. Use proper back
support to mount product.
3-3/8”
(85mm)
10 - 7/8”
275mm)
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
8" (203mm)
24-1/4" (615mm)
18-1/4"
(464mm)
Supplies
32-1/2"
(826mm)
1-3/8"* O.D. Waste
These dimensions and specifi cations are subject to change without notice
8" (208mm)
3-3/4"
(96mm)
5-7/8"*
(150mm)
*Suggested Dimension
Printed in U.S.A. | © TOTO USA 01/13 | Printed on recycled paper ♻
(533mm)
18"*
(457mm)
21"*
#SS-00399, v.02
