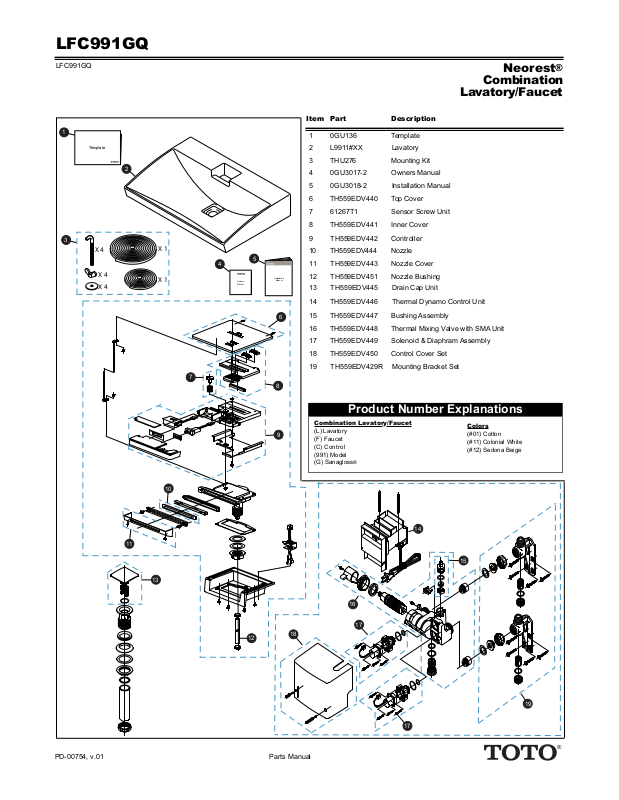

LFC991GQ
LFC991GQ
1
3
Template
X 4
X 4
X 4
Neorest
®
Combination
Lavatory/Faucet
Ite m P a r t Description
8
2
X 1
4
X 1
5
Installation
Owners
Manual
Manual
1
7
8
1 0GU136 Template
2 L9911#XX Lavatory
3 THU276 Mounting Kit
4 0GU3017-2 Owners Manual
5 0GU3018-2 Installation Manual
6 TH559EDV440 Top Cover
7 61267T1 Sensor Screw Unit
8 TH559EDV441 Inner Cover
9 TH559EDV442 Controller
10 TH559EDV444 Nozzle
11 TH559EDV443 Nozzle Cover
12 TH559EDV451 Nozzle Bushing
13 TH559EDV445 Drain Cap Unit
14 TH559EDV446 Thermal Dynamo Control Unit
15 TH559EDV447 Bushing Assembly
6
16 TH559EDV448 Thermal Mixing Valve with SMA Unit
17 TH559EDV449 Solenoid & Diaphram Assembly
18 TH559EDV450 Control Cover Set
19 TH559EDV429R Mounting Bracket Set
Product Number Explanations
Combination Lavatory/Faucet
18
(L) Lavatory
(F) Faucet
(C) Control
(991) Model
(G) Sanagloss ®
16
14
17
9
10
11
8
13
12
Color
s
(#01) Cotton
(# 1 1) Colonial White
(#12) Sedona Beige
15
PD-00754, v.0118
19
17
Par t s Manual
