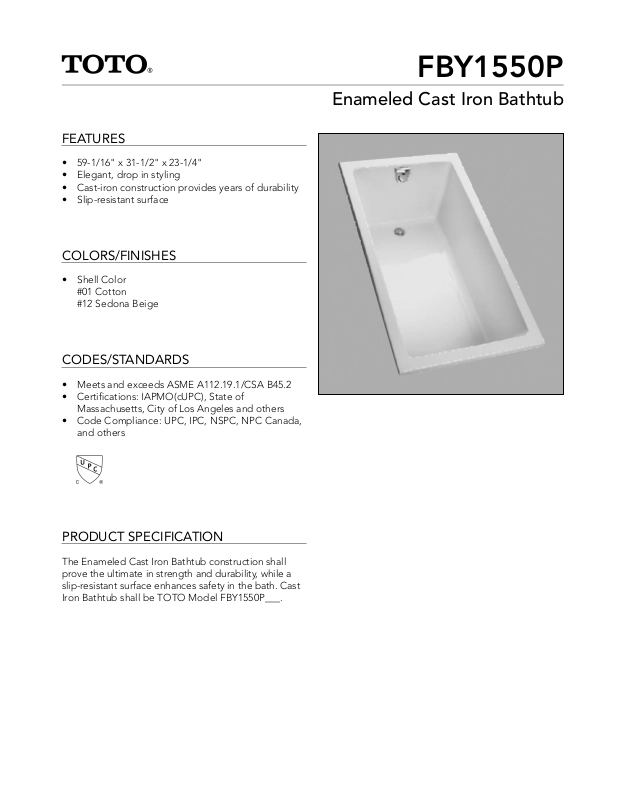

Page 1
FEATURES
• 59-1/16" x 31-1/2" x 23-1/4"
• Elegant, drop in styling
• Cast-iron construction provides years of durability
• Slip-resistant surface
COLORS/FINISHES
• Shell Color
#01 Cotton
#12 Sedona Beige
CODES/STANDARDS
FBY1550P
Enameled Cast Iron Bathtub
• Meets and exceeds ASME A112.19.1/CSA B45.2
• Certifications: IAPMO(cUPC), State of
Massachusetts, City of Los Angeles and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
PRODUCT SPECIFICATION
The Enameled Cast Iron Bathtub construction shall
prove the ultimate in strength and durability, while a
slip-resistant surface enhances safety in the bath. Cast
Iron Bathtub shall be TOTO Model FBY1550P___.
Page 2
FBY1550P
Enameled Cast Iron Bathtub
SPECIFICATIONS
• Size 59-1/16"L x 31-1/2"W
• Depth 19-11/16"
• Water Depth 15-3/4" (400mm)
• Warranty Lifetime Limited Warranty
• Material Enameled Cast Iron
• Shipping Weight 346 lbs.
• Shipping Dimensions 63-3/8"L x 35-13/16"W x
28-5/16"H
INSTALLATION NOTES
A frame cutout guide is available for drop-in
installation. A template is available for under mount
installation.
Floor support under bath must provide a minimum of
80 lbs/square foot (391 kg/square meter) loading.
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
#SS-00410, v.04
