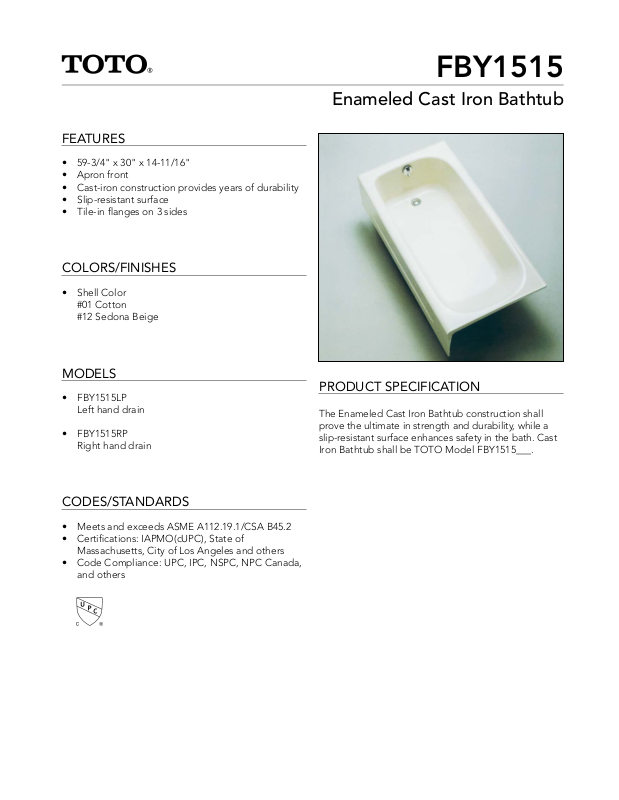

Page 1
FEATURES
• 59-3/4" x 30" x 14-11/16"
• Apron front
• Cast-iron construction provides years of durability
• Slip-resistant surface
• Tile-in flanges on 3 sides
COLORS/FINISHES
• Shell Color
#01 Cotton
#12 Sedona Beige
FBY1515
Enameled Cast Iron Bathtub
MODELS
• FBY1515LP
Left hand drain
• FBY1515RP
Right hand drain
CODES/STANDARDS
• Meets and exceeds ASME A112.19.1/CSA B45.2
• Certifications: IAPMO(cUPC), State of
Massachusetts, City of Los Angeles and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
PRODUCT SPECIFICATION
The Enameled Cast Iron Bathtub construction shall
prove the ultimate in strength and durability, while a
slip-resistant surface enhances safety in the bath. Cast
Iron Bathtub shall be TOTO Model FBY1515___.
Page 2
FBY1515
Enameled Cast Iron Bathtub
SPECIFICATIONS
• Size 59-3/4"L x 30"W
• Depth 14-11/16"
• Water Depth 9-5/16" (237mm)
• Warranty Lifetime Limited Warranty
• Material Enameled Cast Iron
• Shipping Weight 353 lbs.
• Shipping Dimensions 62-5/8"L x 32-7/8"W x
18-1/2"H
INSTALLATION NOTES
Floor support under bath must provide a minimum of
80 lbs/square foot (391 kg/square meter) loading.
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
#SS-00423, v.05
