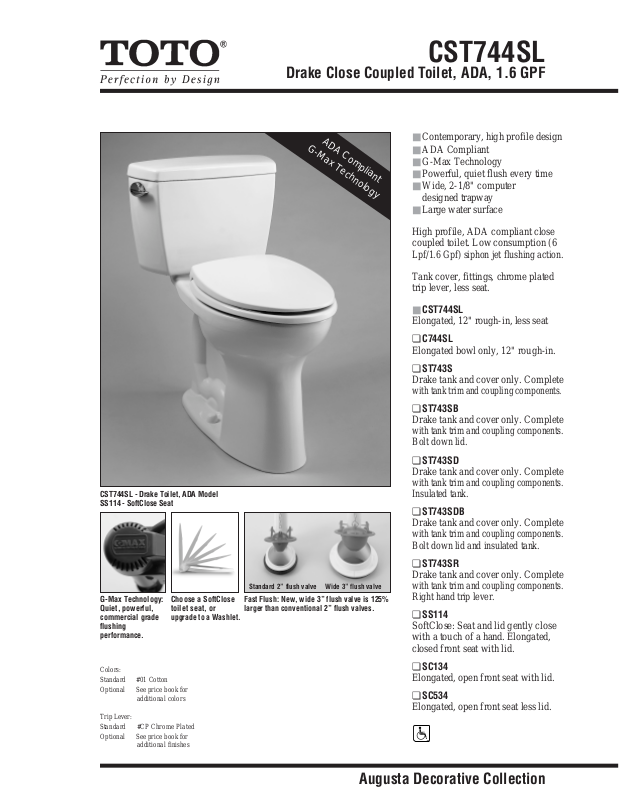

Page 1
CST744SL - Drake Toilet, ADA Model
SS114 - SoftClose Seat
■ Contemporary, high profile design
■ ADA Compliant
■ G-Max Technology
■ Powerful, quiet flush every time
■ Wide, 2-1/8" computer
designed trapway
■ Large water surface
High profile, ADA compliant close
coupled toilet. Low consumption (6
Lpf/1.6 Gpf) siphon jet flushing action.
Tank cover, fittings, chrome plated
trip lever, less seat.
■ CST744SL
Elongated, 12" rough-in, less seat
❏ C744SL
Elongated bowl only, 12" rough-in.
❏ ST743S
Drake tank and cover only. Complete
with tank trim and coupling components.
❏ ST743SB
Drake tank and cover only. Complete
with tank trim and coupling components.
Bolt down lid.
❏ ST743SD
Drake tank and cover only. Complete
with tank trim and coupling components.
Insulated tank.
❏ ST743SDB
Drake tank and cover only. Complete
with tank trim and coupling components.
Bolt down lid and insulated tank.
❏ ST743SR
Drake tank and cover only. Complete
with tank trim and coupling components.
Right hand trip lever.
❏ SS114
SoftClose: Seat and lid gently close
with a touch of a hand. Elongated,
closed front seat with lid.
❏ SC134
Elongated, open front seat with lid.
❏ SC534
Elongated, open front seat less lid.
CST744SL
Drake Close Coupled Toilet, ADA, 1.6 GPF
Augusta Decorative Collection
Colors:
Standard #01 Cotton
Optional See price book for
additional colors
Trip Lever:
Standard #CP Chrome Plated
Optional See price book for
additional finishes
ADA Compliant
G-Max Technology
G-Max Technology:
Quiet, powerful,
commercial grade
flushing
performance.
Fast Flush: New, wide 3” flush valve is 125%
larger than conventional 2” flush valves.
Standard 2” flush valve Wide 3” flush valve
Choose a SoftClose
toilet seat, or
upgrade to a Washlet.
Page 2
19-1/2" (494mm)
16-1/2"
(420mm)
12" (305mm)
28" (710mm)
18-1/2" (470mm)
9-7/8"
(250mm)
30-1/2"
(775mm)
1-1/8"
(30mm)
8"* (202mm)
1/2" Supply
5-1/2" (140mm)
6"
*
(153mm)
14"
(355mm)
CST744SL - Drake Toilet, ADA Model
■ PERFORMANCE
The TOTO G-Max low consumption toilets
received high ratings during ANSI/ASME and CSA
testing at independent laboratories. Designed with a
powerful siphon jet flushing action, the toilet offers
a large water surface and a glazed trapway.
■ SPECIFICATIONS
Water Use: 1.6 Gpf / 6.0 Lpf
Flush System:
Gravity Feed (G-Max System)
Min. Water Pressure: 8 psi
Water Surface: 10-3/8" x 8-1/4"
Trap Diameter: 2-1/8"
Rough-in: 12" rough-in
Trapseal: 2-3/8"
Warranty: Five Year Limited Warranty
Material:
Vitreous china
Shipping Weight: C744SL 56.5 lbs.
ST743S 35 lbs.
Shipping Dimensions:
C744SL
29-1/2"L
x 16"W
1
x 10-1/4"W2 x 18-1/2"H
ST743S
20-1/8"L x 8-1/4"W
x 15-1/2"H
Fixture dimensions and hydraulic performance
meet or exceed ANSI/ASME standard A112.19.2M and
CAN/CSA B 45 requirements.
Listing and approval: IAPMO/UPC, CSA, City of Los
Angeles, State of MA, and others
Meets the American Disabilities Act Guidelines
and ANSI A117.1 requirements where installed so top of
seat is 17”-19” from the finished floor.
Recommended seat: SS114
These dimensions and specifications are subject to
change without notice.
U.S. Patent: D406.329 5.918.325
5.983.413 and pending
CST744SL
Drake Close Coupled Toilet, ADA, 1.6 GPF
*Suggested Dimension
TOTO U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (770) 282-8686 • Fax. (770) 282-8701 • www.totousa.com
Printed in U.S.A. © TOTO LTD. 10/02 #A10120
Printed on recycled paper
REV 10/02
