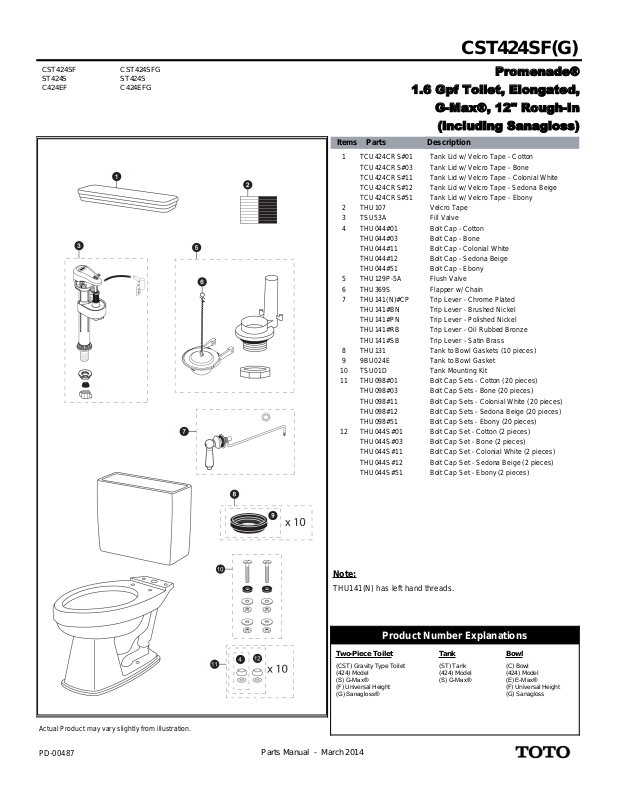

CST424SF(G)
CST424SF
CST424SFG
ST424S
ST424S
C424EF
C424EFG
Promenade®
1.6 Gpf Toilet, Elongated,
G-Max®, 12" Rough-In
(including Sanagloss)
Two-Piece Toilet
(CST) Gravity Type Toilet
(424) Model
(S) G-Max®
(F) Universal Height
(G) Sanagloss®
(ST) Tank
(424) Model
(S) G-Max®
Bowl
(C) Bowl
(424) Model
(E) E-Max®
(F) Universal Height
(G) Sanagloss
THU141(N) has left hand threads.
Tank
Product Number Explanations
Note:

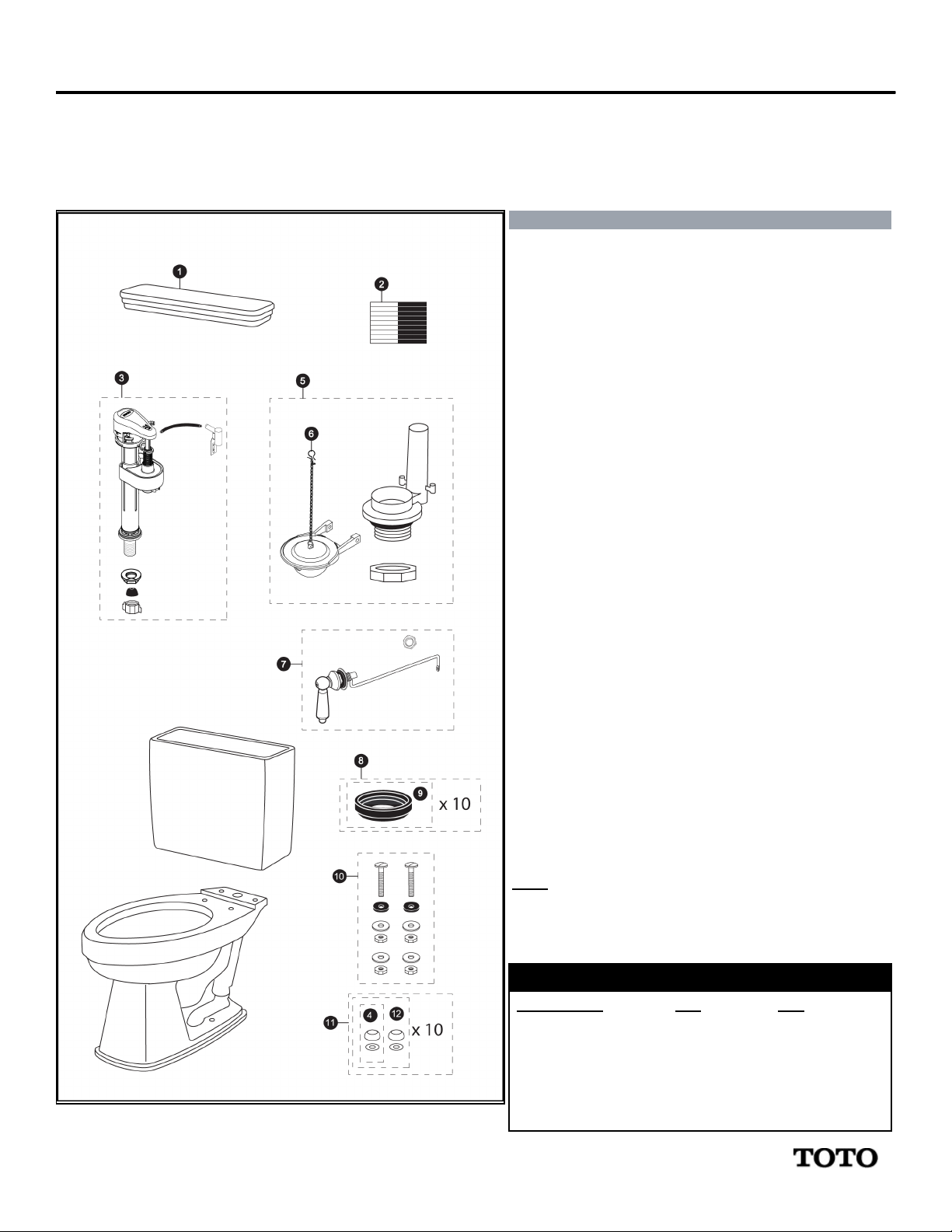

Actual Product may vary slightly from illustration.
Items
Parts
Description
1
TCU424CRS#01
Tank Lid w/ Velcro Tape - Cotton
TCU424CRS#03
Tank Lid w/ Velcro Tape - Bone
TCU424CRS#11
Tank Lid w/ Velcro Tape - Colonial White
TCU424CRS#12
Tank Lid w/ Velcro Tape - Sedona Beige
TCU424CRS#51
Tank Lid w/ Velcro Tape - Ebony
2
THU107
Velcro Tape
3
TSU53A
Fill Valve
4
THU044#01
Bolt Cap - Cotton
THU044#03
Bolt Cap - Bone
THU044#11
Bolt Cap - Colonial White
THU044#12
Bolt Cap - Sedona Beige
THU044#51
Bolt Cap - Ebony
5
THU129P-5A
Flush Valve
6
THU369S
Flapper w/ Chain
7
THU141(N)#CP
Trip Lever - Chrome Plated
THU141#BN
Trip Lever - Brushed Nickel
THU141#PN
Trip Lever - Polished Nickel
THU141#RB
Trip Lever - Oil Rubbed Bronze
THU141#SB
Trip Lever - Satin Brass
8
THU131
Tank to Bowl Gaskets (10 pieces)
9
9BU024E
Tank to Bowl Gasket
10
TSU01D
Tank Mounting Kit
11
THU098#01
Bolt Cap Sets - Cotton (20 pieces)
THU098#03
Bolt Cap Sets - Bone (20 pieces)
THU098#11
Bolt Cap Sets - Colonial White (20 pieces)
THU098#12
Bolt Cap Sets - Sedona Beige (20 pieces)
THU098#51
Bolt Cap Sets - Ebony (20 pieces)
12
THU044S#01
Bolt Cap Set - Cotton (2 pieces)
THU044S#03
Bolt Cap Set - Bone (2 pieces)
THU044S#11
Bolt Cap Set - Colonial White (2 pieces)
THU044S#12
Bolt Cap Set - Sedona Beige (2 pieces)
THU044S#51
Bolt Cap Set - Ebony (2 pieces)
PD-00487
Parts Manual - March 2014
