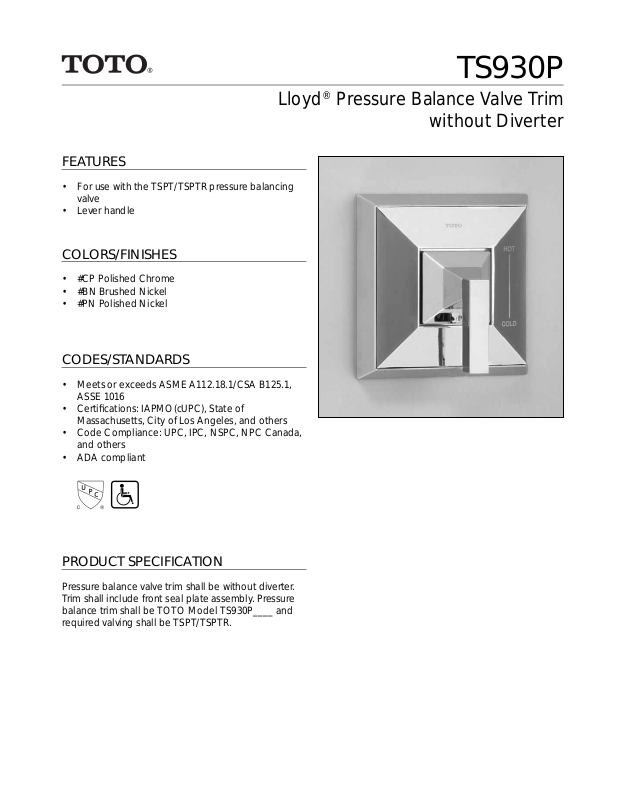

Page 1
Lloyd® Pressure Balance Valve Trim
FEATURES
• For use with the TSPT/TSPTR pressure balancing
valve
• Lever handle
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
CODES/STANDARDS
TS930P
without Diverter
• Meets or exceeds ASME A112.18.1/CSA B125.1,
ASSE 1016
• Certifi cations: IAPMO(cUPC), State of
Massachusetts, City of Los Angeles, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant
PRODUCT SPECIFICATION
Pressure balance valve trim shall be without diverter.
Trim shall include front seal plate assembly. Pressure
balance trim shall be TOTO Model TS930P____ and
required valving shall be TSPT/TSPTR.
Page 2
TS930P
Lloyd® Pressure Balance Valve Trim
without Diverter
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Weight 6.8 lbs.
• Shipping Dimensions 13-3/4"L x 9"W x 4"H
7.5
5
2.5
Flowrate (gpm)
0
0 20406080
E-Wall Bath A-Shower head
Pressure (psi)
INSTALLATION NOTES
VALVE REQUIRED:
Pressure balancing valve, model TSPT or TSPTR sold
separately.
7-1/16” (180mm)
7-1/16” (180mm)
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
3-7/8” (98mm)
3-1/8” (80mm)
These dimensions and specifi cations are subject to change without notice
# SS-00137, v.01
Printed in U.S.A. | © TOTO USA 10/09 | Printed on recycled paper ♻
