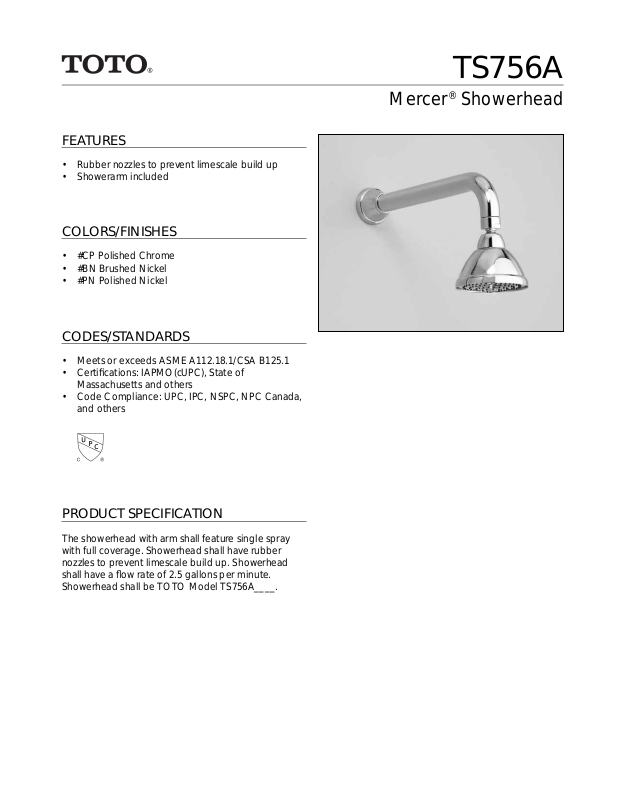

Page 1
FEATURES
• Rubber nozzles to prevent limescale build up
• Showerarm included
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifi cations: IAPMO(cUPC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
TS756A
Mercer® Showerhead
PRODUCT SPECIFICATION
The showerhead with arm shall feature single spray
with full coverage. Showerhead shall have rubber
nozzles to prevent limescale build up. Showerhead
shall have a fl ow rate of 2.5 gallons per minute.
Showerhead shall be TOTO Model TS756A____.
Page 2
TS756A
(
)
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Weight 3.3 lbs.
• Shipping Dimensions 17"L x 10"W x 5"H
• Maximum Flow Rate 2.5 gpm (9.5 lpm)
Mercer® Showerhead
0 100 200 300 400 500
3.0
2.5
2.0
1.5
1.0
Flow rate (gpm)
0.5
0.0
0.0 20.0 40.0 60.0 80.0
Pressure (kPa)
Pressure (psi)
11. 4
9.5
Flow rate (lpm)
7.6
5.7
3.8
1.9
0.0
13-3/8” (339mm)
6-1/4” (159mm)
102mm
ø4”
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
1/2” NPT
ø2-5/16” (58mm)
These dimensions and specifi cations are subject to change without notice
# SS-00118, v.01
Printed in U.S.A. | © TOTO USA 10/09 | Printed on recycled paper ♻
