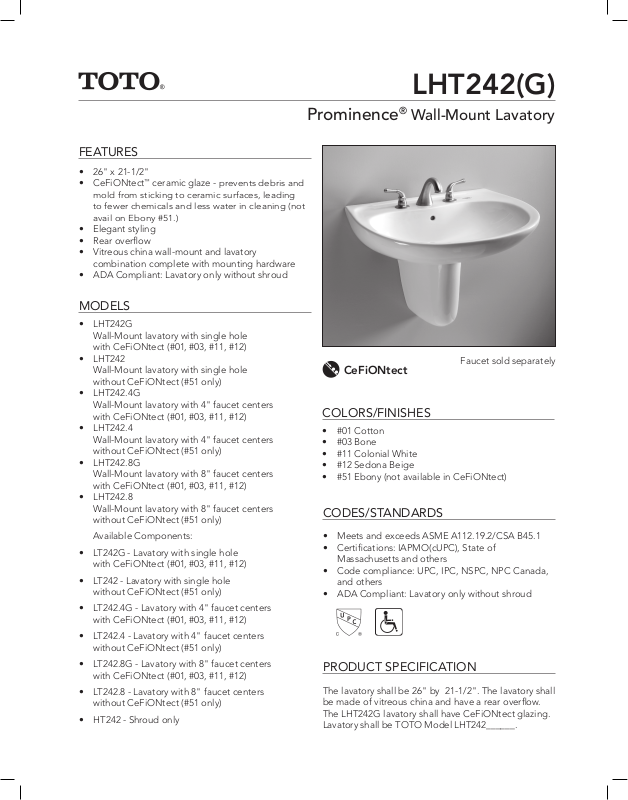

Page 1
LHT242(G)
FEATURES
• 26" x 21-1/2"
• CeFiONtect™ ceramic glaze -
mold from sticking to ceramic surfaces, leading
to fewer chemicals and less water in cleaning (not
avail on Ebony #51.)
• Elegant styling
• Rear overflow
• Vitreous china wall-mount and lavatory
combination complete with mounting hardware
• ADA Compliant: Lavatory only without shroud
prevents debris and
MODELS
• LHT242G
Wall-Mount lavatory with single hole
with CeFiONtect (#01, #03, #11, #12)
• LHT242
Wall-Mount lavatory with single hole
without CeFiONtect (#51 only)
• LHT242.4G
Wall-Mount lavatory with 4" faucet centers
with CeFiONtect (#01, #03, #11, #12)
• LHT242.4
Wall-Mount lavatory with 4" faucet centers
without CeFiONtect (#51 only)
• LHT242.8G
Wall-Mount lavatory with 8" faucet centers
with CeFiONtect (#01, #03, #11, #12)
• LHT242.8
Wall-Mount lavatory with 8" faucet centers
without CeFiONtect (#51 only)
Available Components:
•• LT242G - Lavatory with single hole
with CeFiONtect (#01, #03, #11, #12)
•• LT242 - Lavatory with single hole
without CeFiONtect (#51 only)
•• LT242.4G - Lavatory with 4" faucet centers
with CeFiONtect (#01, #03, #11, #12)
•• LT242.4 - Lavatory with 4" faucet centers
without CeFiONtect (#51 only)
•• LT242.8G - Lavatory with 8" faucet centers
with CeFiONtect (#01, #03, #11, #12)
•• LT242.8 - Lavatory with 8" faucet centers
without CeFiONtect (#51 only)•
•• HT242 - Shroud only
Prominence
®
Wall-Mount Lavatory
Faucet sold separately
CeFiONtect
COLORS/FINISHES
• #01 Cotton
• #03 Bone
• #11 Colonial White
• #12 Sedona Beige
• #51 Ebony (not available in CeFiONtect)
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), State of
Massachusetts and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA Compliant: Lavatory only without shroud
PRODUCT SPECIFICATION
The lavatory shall be 26" by 21-1/2". The lavatory shall
be made of vitreous china and have a rear overflow.
The LHT242G lavatory shall have CeFiONtect glazing.
Lavatory shall be TOTO Model LHT242______.
Page 2
34-1/2" (875mm)
LHT242(G)
SPECIFICATIONS
• Waste 1-1/4" O.D.
• Size 26" x 21-1/2"
• Basin 23-1/8" x 14-3/4"
• Warranty One Year Limited Warranty
• Material Vitreous china lavatory and
shroud
• Shipping Weight LT242(G)/LT242.4(G)/LT242.8(G)
46 lbs.
HT242
15 lbs.
• Shipping Dimensions LT242(G)/LT242.4(G)/LT242.8(G)
26"L x 21-7/8"W x 8-1/2"H
HT242
11-3/4"L x 10-1/4"W x
14-1/8"H
Prominence® Wall-Mount Lavatory
ADA Compliance Check
Without Shroud
23-5/8" (600mm)
7-7/8" (200mm)
21-1/2"
(545mm)
23-1/8" (588mm)
26" (660mm)
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
3-1/8" 80mm)
3/4" 18mm)
14-3/4" 374mm)
11" (280mm)
2-3/8"
(60mm)
(32mm) Dia.
4" (102mm)
23-3/4"
(603mm)*
21-1/8"
(538mm)*
These dimensions and specications are subject to change without notice
8-3/4"
(221mm)
3/4" (20mm)
1-1/4"
13-3/4" (350mm)
*Suggested Dimensions
#SS-00174, v.05
