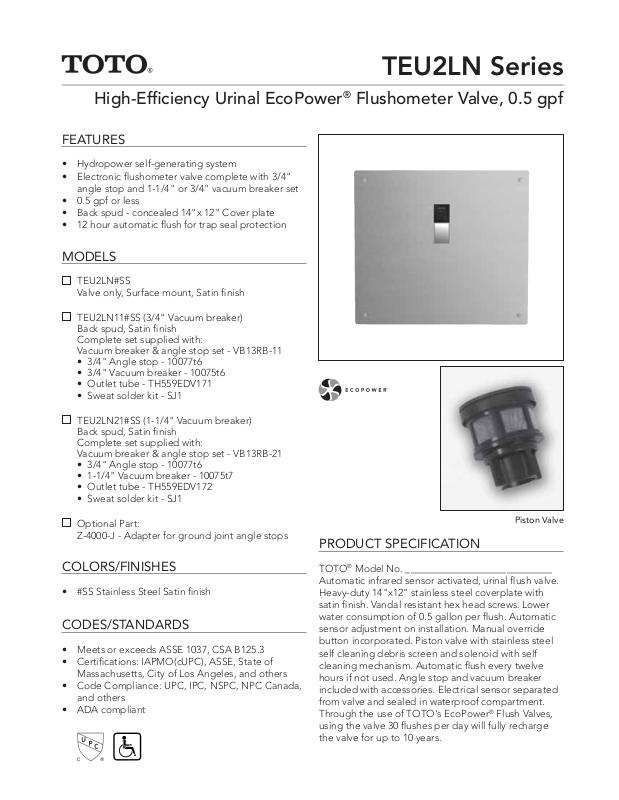

Page 1
High-Effi ciency Urinal EcoPower® Flushometer Valve, 0.5 gpf
FEATURES
• Hydropower self-generating system
• Electronic fl ushometer valve complete with 3/4"
angle stop and 1-1/4" or 3/4" vacuum breaker set
• 0.5 gpf or less
• Back spud - concealed 14"x 12" Cover plate
• 12 hour automatic fl ush for trap seal protection
MODELS
TEU2LN#SS
Valve only, Surface mount, Satin fi nish
TEU2LN11#SS (3/4" Vacuum breaker)
Back spud, Satin fi nish
• Complete set supplied with:
Vacuum breaker & angle stop set - VB13RB-11
• 3/4" Angle stop - 10077t6
• 3/4" Vacuum breaker - 10075t6
• Outlet tube - TH559EDV171
• Sweat solder kit - SJ1
TEU2LN Series
TEU2LN21#SS (1-1/4" Vacuum breaker)
Back spud, Satin fi nish
• Complete set supplied with:
Vacuum breaker & angle stop set - VB13RB-21
• 3/4" Angle stop - 10077t6
• 1-1/4" Vacuum breaker - 10075t7
• Outlet tube - TH559EDV172
• Sweat solder kit - SJ1
Optional Part:
Z-4000-J - Adapter for ground joint angle stops
COLORS/FINISHES
• #SS Stainless Steel Satin fi nish
CODES/STANDARDS
• Meets or exceeds ASSE 1037, CSA B125.3
• Certifi cations: IAPMO(cUPC), ASSE, State of
Massachusetts, City of Los Angeles, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant

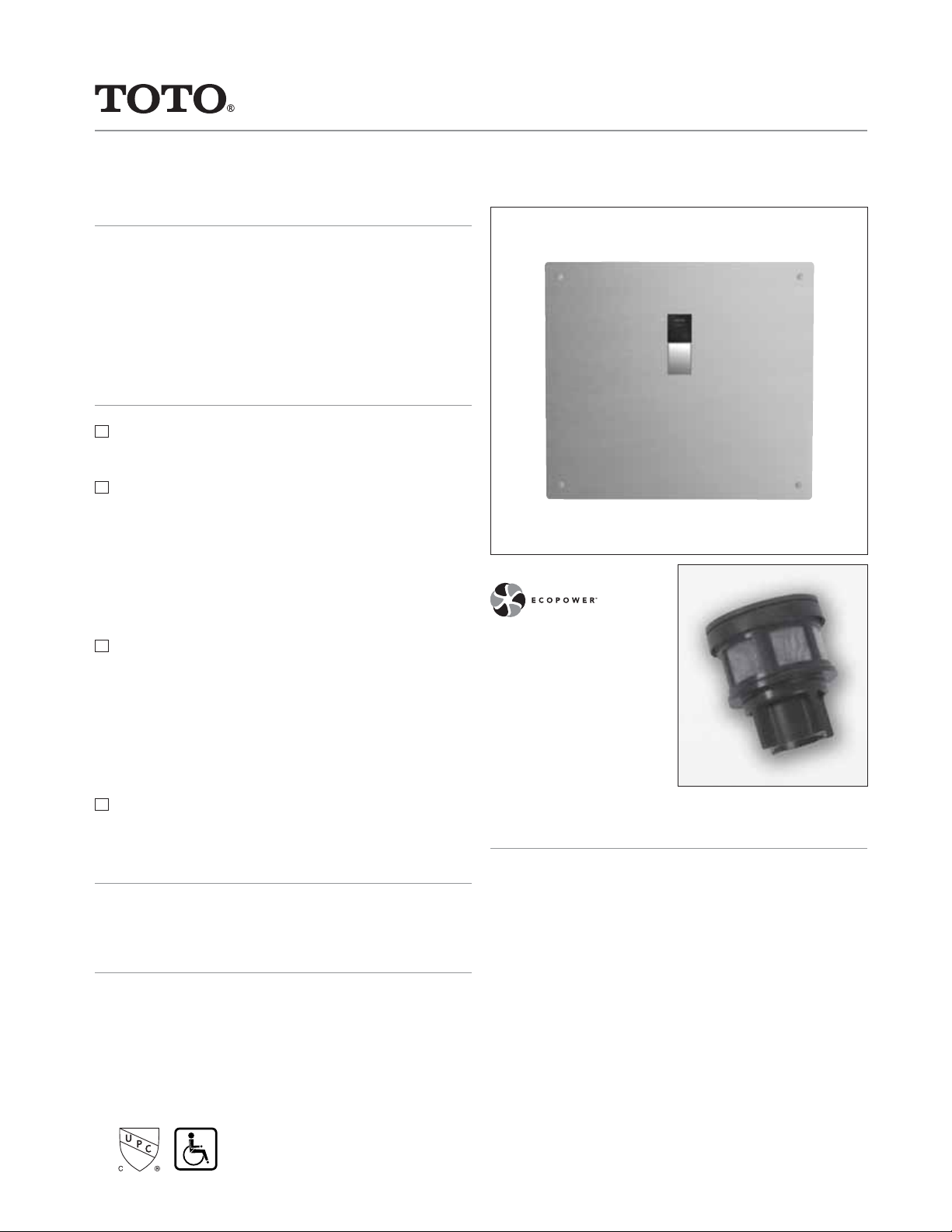

Piston Valve
PRODUCT SPECIFICATION
®
TOTO
Automatic infrared sensor activated, urinal fl ush valve.
Heavy-duty 14"x12" stainless steel coverplate with
satin fi nish. Vandal resistant hex head screws. Lower
water consumption of 0.5 gallon per fl ush. Automatic
sensor adjustment on installation. Manual override
button incorporated. Piston valve with stainless steel
self cleaning debris screen and solenoid with self
cleaning mechanism. Automatic fl ush every twelve
hours if not used. Angle stop and vacuum breaker
included with accessories. Electrical sensor separated
from valve and sealed in waterproof compartment.
Through the use of TOTO's EcoPower® Flush Valves,
using the valve 30 fl ushes per day will fully recharge
the valve for up to 10 years.
Model No. _____________________________
Page 2
TEU2LN Series
High-Effi ciency Urinal EcoPower® Flushometer Valve, 0.5 gpf
SPECIFICATIONS
• Warranty Three Year Warranty
• Material Bronze casting with
stainless steel fi nish
INSTALLATION NOTES
The recommended installation for the urinal
fl ushometer valve is to have a 7" (178mm) minimum
space in wall.
• Power Supply Hydropower self-generating
system
• Water Supply 3/4" NPT
• Detection time Factory setting at six (6)
seconds minimum
• Detection range Self-adjusting to environment
• Discharge quantity Preset to 0.5 gpf / 2.4 lpf
• Urinal type Low consumption wash down
and jetted fl ush design urinals
• Operating temperature 32°-104°F (0°-40°C)
• Supply water pressure 15 psi - 125 psi*
• Trap seal protection Automatically fl ushes once
after twelve (12) hours of
non-use
These specifi cations are subject to change without notice.
*Water pressures over 80 psi are not recommended for most plumbing fi xtures.
Check your local plumbing code for details.

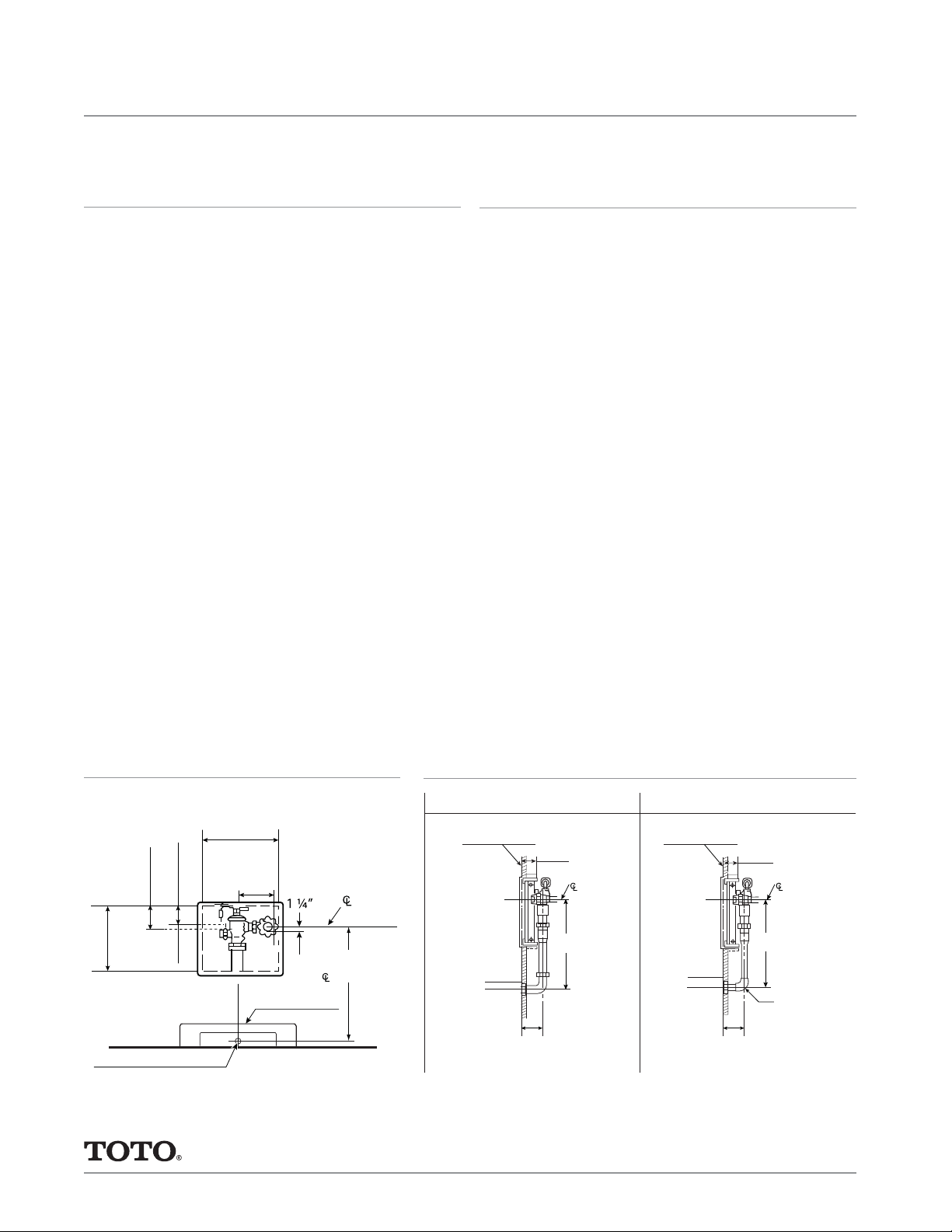

DIAGRAM RECOMMENDED INSTALLATION
Dimensions: Inch
13-1/2”
Opening in wall
4-3/4”*
OVERRIDE
BUTTON
LOCATION
SENSOR
LOCATION
5-1/8”
11-15/16”
Opening in wall
Back spud (ø1-5/16”)
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
3-13/16”
(distance from Spud Hole to both
Top of the Urinal
of Supply
and sensor
16”
of Supply and Sensor)
*+/- 1/2”
Back Spud 1-1/4” Back Spud 3/4”
Finished wall
2-3/8” 2-3/8”
Supply Supply
16”
Urinal Urinal
These dimensions and specifi cations are subject to change without notice
Printed in U.S.A. | © TOTO USA 10/09 | Printed on recycled paper ♻
Finished wall
16”
Solder joint
3-3/4”3-3/4”
#SS-00094, v.06
