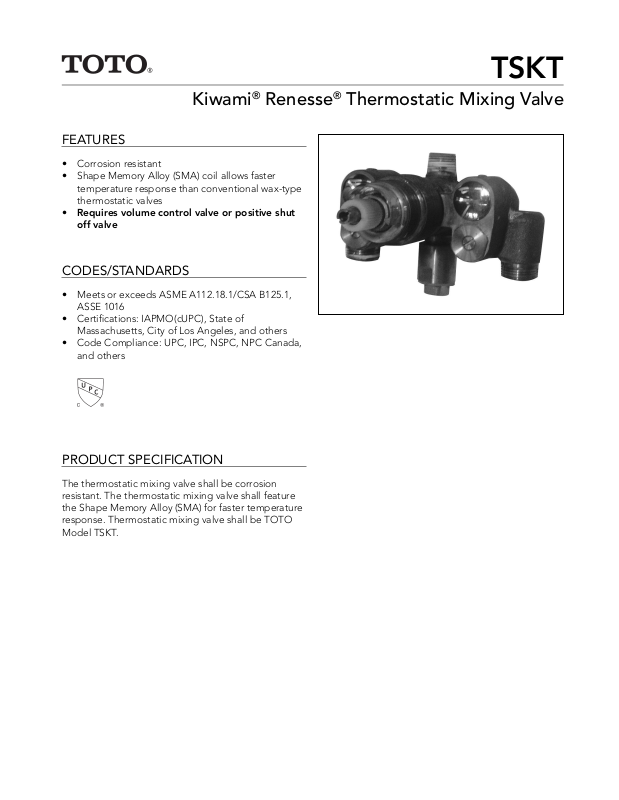

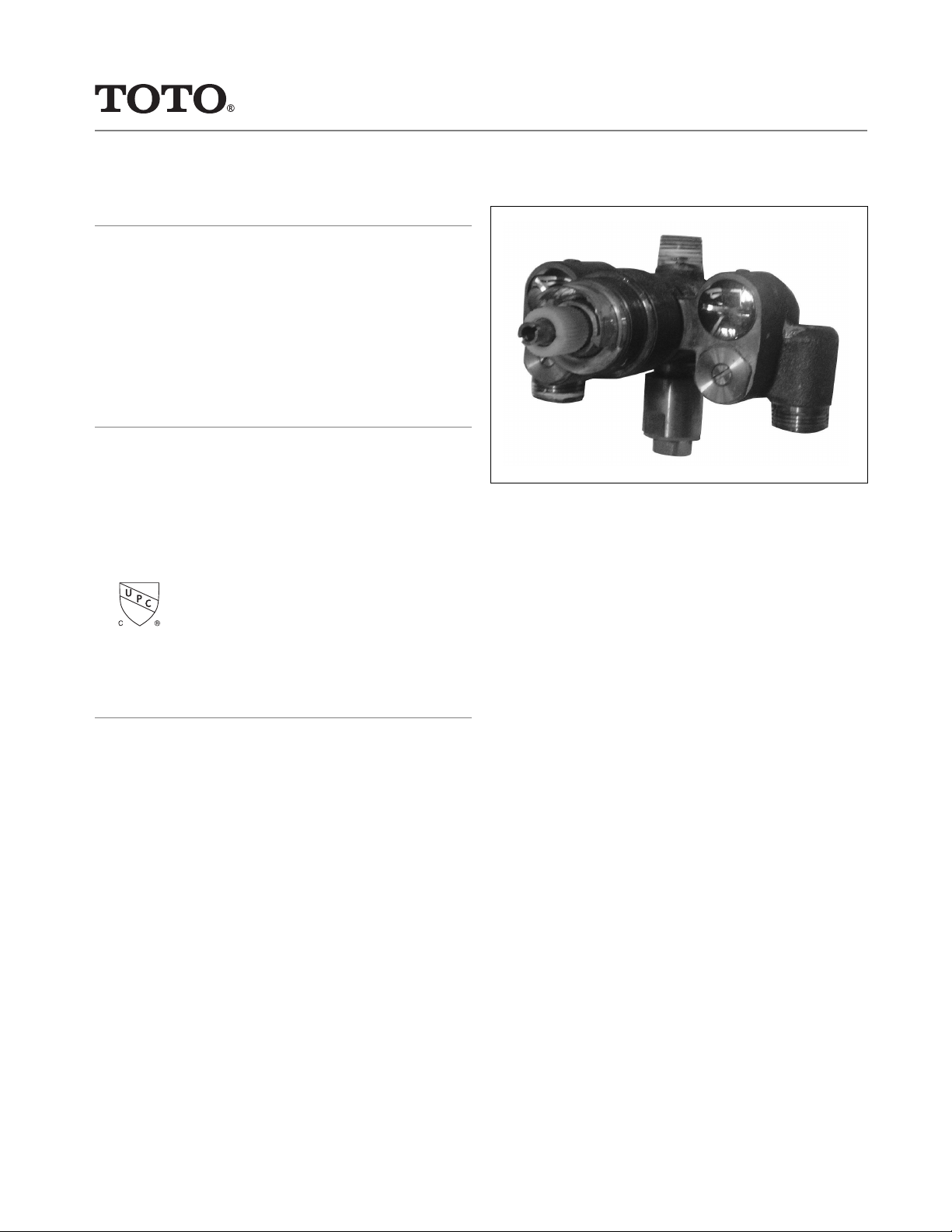

Page 1
Kiwami® Renesse® Thermostatic Mixing Valve
FEATURES
• Corrosion resistant
• Shape Memory Alloy (SMA) coil allows faster
temperature response than conventional wax-type
thermostatic valves
• Requires volume control valve or positive shut
off valve
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1,
ASSE 1016
• Certifi cations: IAPMO(cUPC), State of
Massachusetts, City of Los Angeles, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
TSKT
PRODUCT SPECIFICATION
The thermostatic mixing valve shall be corrosion
resistant. The thermostatic mixing valve shall feature
the Shape Memory Alloy (SMA) for faster temperature
response. Thermostatic mixing valve shall be TOTO
Model TSKT.

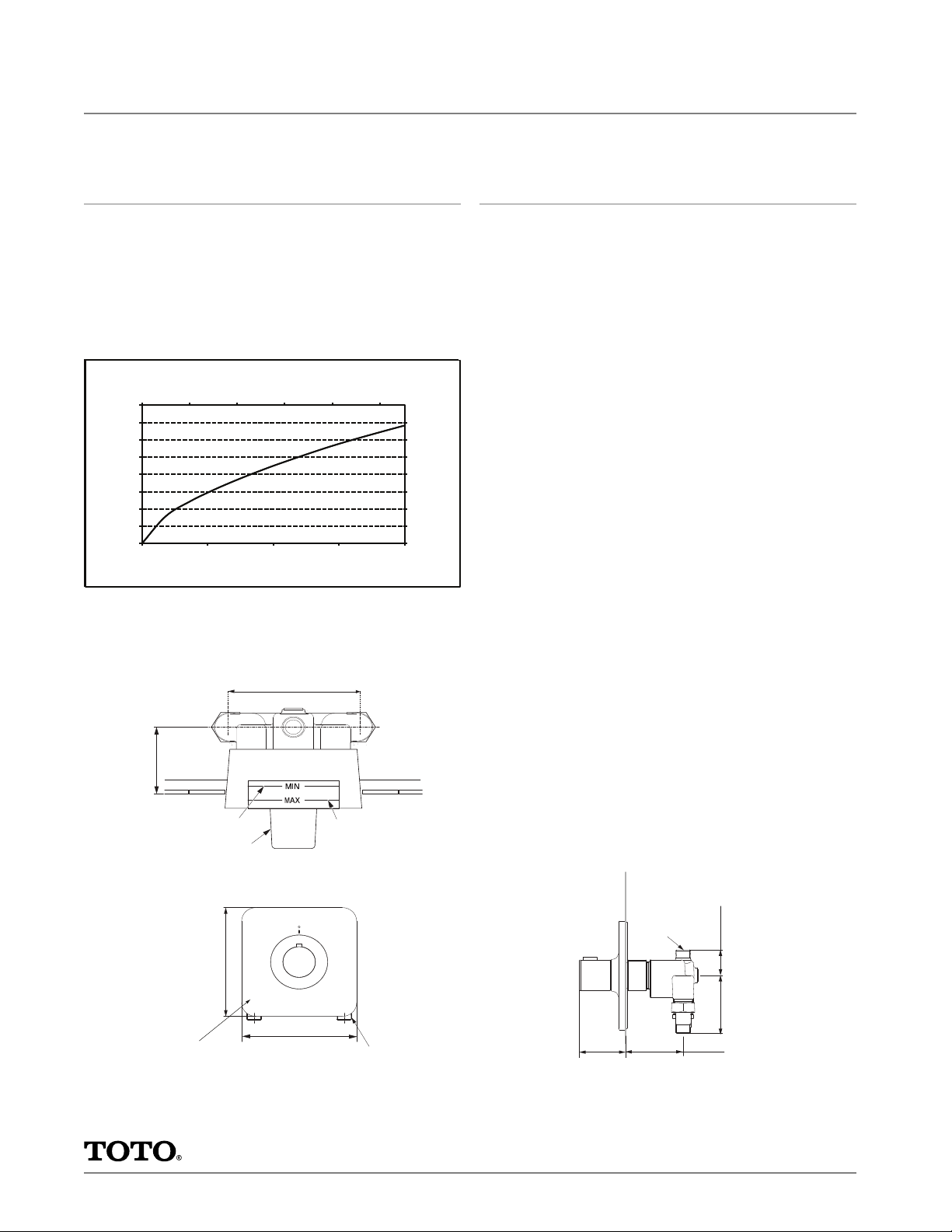

Page 2
TSKT
Kiwami® Renesse® Thermostatic Mixing Valve
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Weight 5.0 lbs.
• Shipping Dimensions 8-1/2"L x 8-1/2"W x 6"H
0 100 200 300 400 500
16.0
14.0
12.0
10.0
8.0
6.0
Flow rate (gpm)
4.0
2.0
0.0
0 20 40 60 80
Pressure (kPa)
Pressure (psi)
53.0
45.4
Flow rate (lpm)
37.9
30.3
22.7
15.1
7.6
0.0
INSTALLATION NOTES
VALVE TRIM REQUIRED:
Kiwami® Renesse® thermostatic mixing valve trim,
model TS170T#CP sold separately.
2-15/16” (75mm) MIN
3-9/16” (90mm) MAX
Guard Cover
Thermostatic
Mixing Valve Trim
(TS170T#CP)
(SOLD SEPARATELY)
4-15/16” (125 mm)
HOT to COLD supply
Lower limit
6-5/16” (160 mm)
6-5/16” (160 mm)
Upper limit
1/2” NPT
FINISHED
WALL
FINISHED
2-9/16”
65 mm
2-15/16” (75mm) MIN
3-9/16” (90mm) MAX
WALL
1/2” NPT
1-1/2”
(38 mm)
(85 mm)
3-3/8”
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
These dimensions and specifi cations are subject to change without notice
#SS-00012, v.04
Printed in U.S.A. | © TOTO USA 10/09 | Printed on recycled paper ♻
