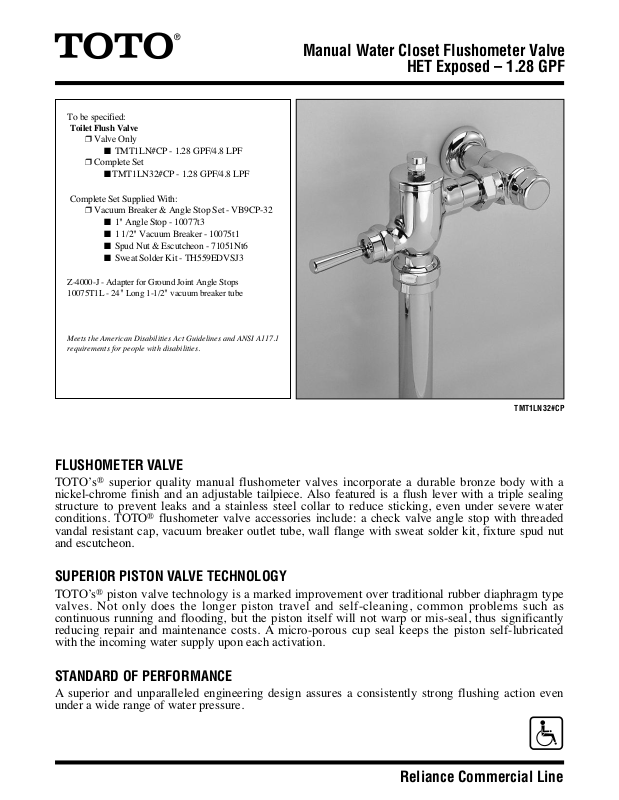

Page 1
To be specified:
Toilet Flush Valve
❒
Valve Only
■ TMT1LN#CP - 1.28 GPF/4.8 LPF
❒ Complete Set
■ TMT1LN32#CP - 1.28 GPF/4.8 LPF
Complete Set Supplied With:
❒ Vacuum Breaker & Angle Stop Set - VB9CP-32
■ 1" Angle Stop - 10077t3
■ 1 1/2" Vacuum Breaker - 10075t1
■ Spud Nut & Escutcheon - 71051Nt6
■ Sweat Solder Kit - TH559EDVSJ3
Z-4000-J - Adapter for Ground Joint Angle Stops
10075T1L - 24
Meets the American Disabilities Act Guidelines and ANSI A117.1
requirements for people with disabilities.
" Long 1-1/2" vacuum breaker tube
Manual Water Closet Flushometer Valve
HET Exposed – 1.28 GPF
TMT1LN32#CP
FLUSHOMETER VALVE
TOTO’s®superior quality manual flushometer valves incorporate a durable bronze body with a
nickel-chrome finish and an adjustable tailpiece. Also featured is a flush lever with a triple sealing
structure to prevent leaks and a stainless steel collar to reduce sticking, even under severe water
conditions. TOTO®flushometer valve accessories include: a check valve angle stop with threaded
vandal resistant cap, vacuum breaker outlet tube, wall flange with sweat solder kit, fixture spud nut
and escutcheon.
SUPERIOR PISTON VALVE TECHNOLOGY
TOTO’s®piston valve technology is a marked improvement over traditional rubber diaphragm type
valves. Not only does the longer piston travel and self-cleaning, common problems such as
continuous running and flooding, but the piston itself will not warp or mis-seal, thus significantly
reducing repair and maintenance costs. A micro-porous cup seal keeps the piston self-lubricated
with the incoming water supply upon each activation.
STANDARD OF PERFORMANCE
A superior and unparalleled engineering design assures a consistently strong flushing action even
under a wide range of water pressure.
Reliance Commercial Line
Page 2
Manual Water Closet Flushometer Valve
1-1/2” NPSM
1” inlet supply
HET Exposed – 1.28 GPF
SPECIFICATIONS
Product T
Fixture Type Flushometer valve bowl 1.28 GPF/4.8 LPF
Water supply pipe
Water supply pressure
Listings
Warranty Limitedthree (3) yearwarranty onall component parts. Details available upon request.
These dimensions and specifications are subject to change without notice.
*Water pressures over80 psi are not recommended for most plumbing fixtures.
SUGGESTED ENGINEERING SPECIFICATION:
TOTO®Model No.
Manual toilet brass flushometer valve, non-hold-open piston
type with self-cleaning debris screen and precise flushing
capability. Low consumption 1.28 GPF/4.8 LPF
MT1LN#CP – Valve Only, 1.28 GPF/4.8 LPF, right/left hand rough
TMT1LN32#CP – Complete Set (1-1/2” V.B.), 1.28 GPF/4.8 LPF, right/left hand rough
1" NPT
30 psi (flowing) - 100 psi * (minimum 23 gpm flow rate)
.S.S.E. 1037
A
Polished Chrome exterior, angle stop with back-check and
vacuum breaker included.
DIAGRAM:
TMT1LN32#CP
FLUSHOMETER VALVES -
Brass construction, polished chrome exterior,
piston valve, non-hold-open feature, angle
stop with check valve, outlet tube with
vacuum breaker, spud nut, escutcheon &
wall flange.
TMT1LN32#CP 1.28 gpf toilet F.V.
■■
1 in. NPT inlet and 1-1/2 inch outlet
TOTO®U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (888) 295-8134 • Fax. (770) 282-8701 • www.totousa.com
Printed in U.S.A. © TOTO®LTD. 08/08 #H80062
Printed on recycled paper
REV 08/08
