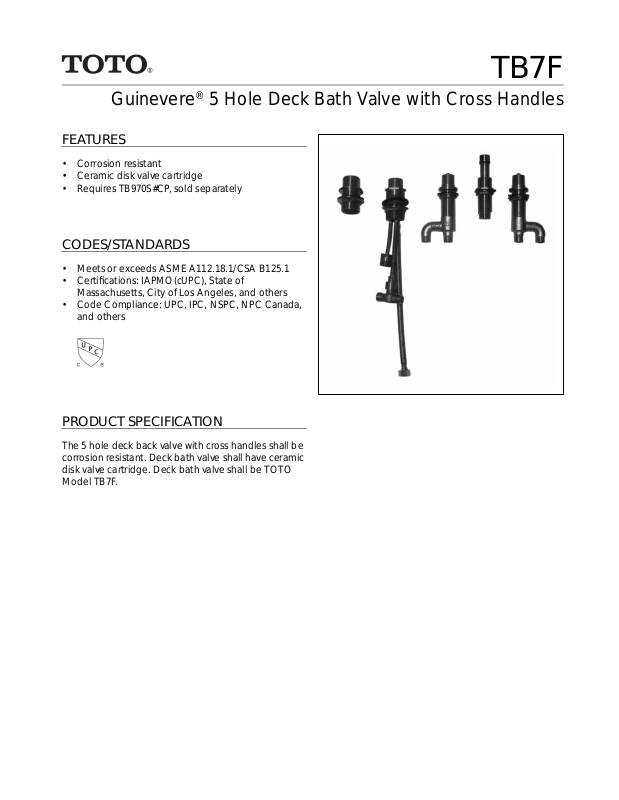

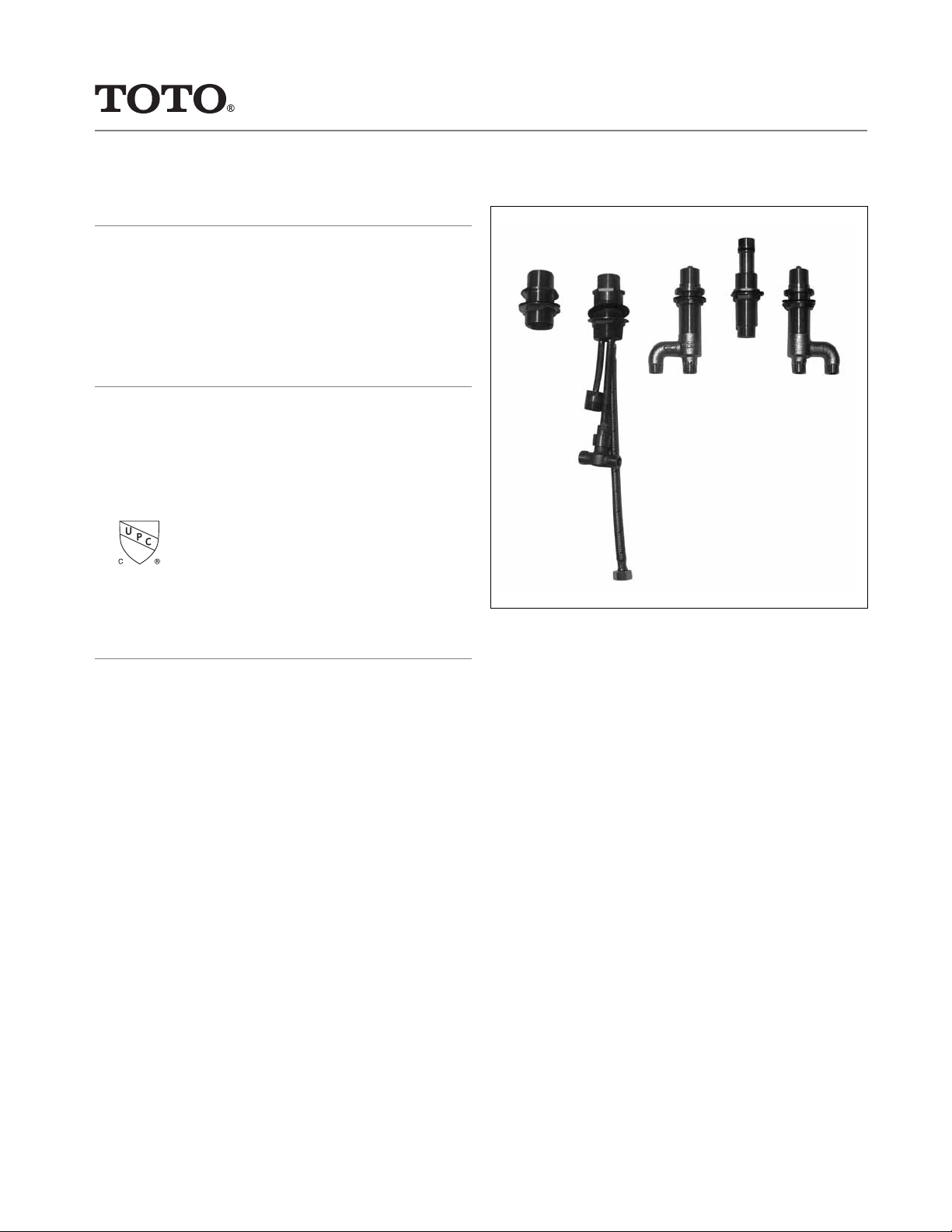

Guinevere® 5 Hole Deck Bath Valve with Cross Handles
FEATURES
• Corrosion resistant
• Ceramic disk valve cartridge
• Requires TB970S#CP, sold separately
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifi cations: IAPMO(cUPC), State of
Massachusetts, City of Los Angeles, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
TB7F
PRODUCT SPECIFICATION
The 5 hole deck back valve with cross handles shall be
corrosion resistant. Deck bath valve shall have ceramic
disk valve cartridge. Deck bath valve shall be TOTO
Model TB7F.
Page 2
TB7F
Guinevere® 5 Hole Deck Bath Valve with Cross Handles
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Weight 11.3 lbs.
• Shipping Dimensions 20-3/4"L x 9-3/4"W x
3-3/4"H

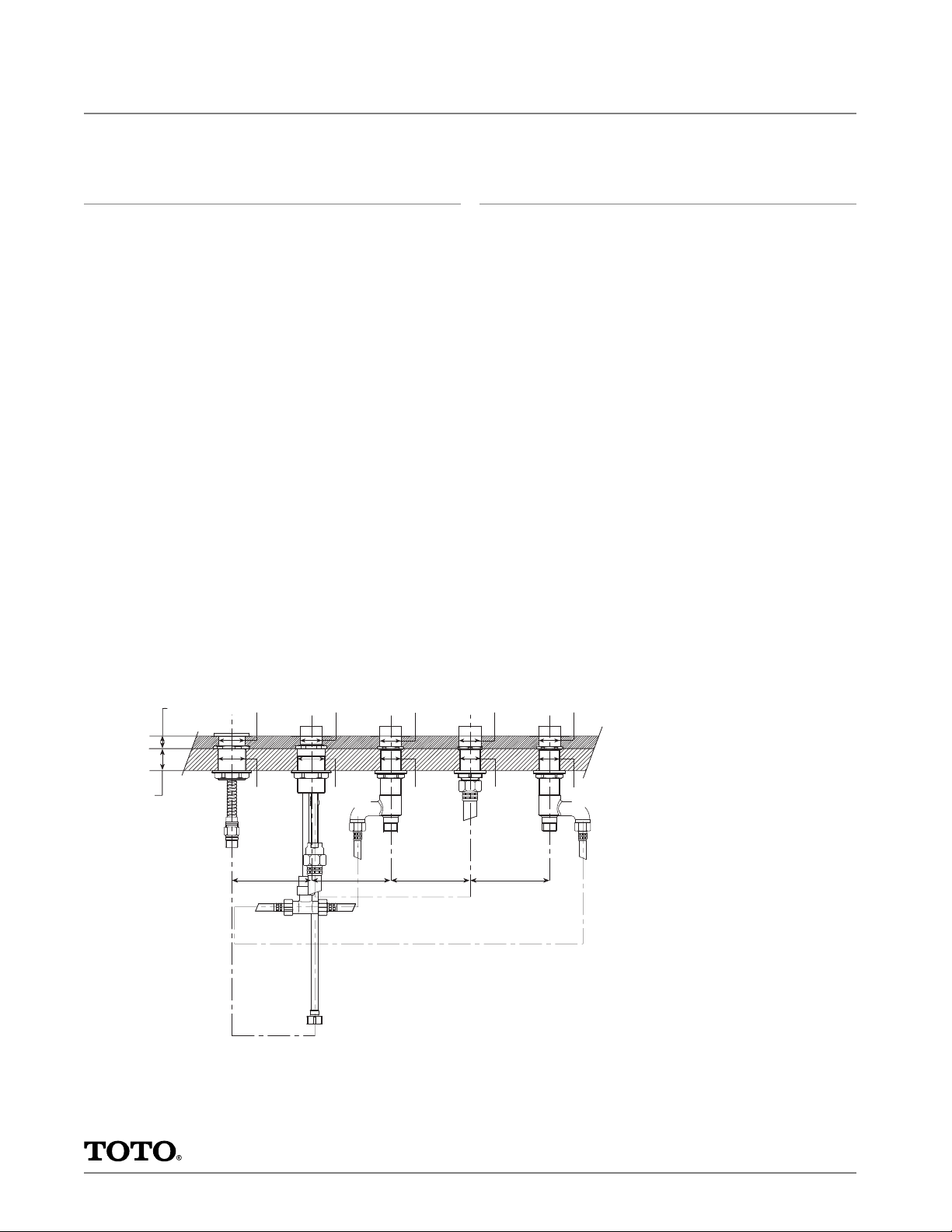

INSTALLATION NOTES
FAUCET TRIM REQUIRED:
Guinevere® 5 hole deck bath trim with cross handles,
model TB970S#CP sold separately.
1/2”~7/8”
(13mm~22mm)
3/4”~1-1/4”
(19mm~32mm)
IMPORTANT NOTE: This valve/trim can only be installed in a built-up deck. It cannot be installed on pre-fi nished deck or on tub rim.
1-5/8”
(42mm)
1-3/4”
(45mm)
4-1/2”min*
(114mm)
1-3/8”
(35mm)
1-3/4”
(45mm)
4-1/2”min*
(114mm)
1-3/8”
(35mm)
1-3/8”
(35mm)
4-1/2”min*
(114mm)
1-3/8”
(35mm)
1-3/8”
(35mm)
4-1/2”min*
(114mm)
1-3/8”
(35mm)
1-3/8”
(35mm)
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
These dimensions and specifi cations are subject to change without notice
#SS-00064, v.02
Printed in U.S.A. | © TOTO USA 10/09 | Printed on recycled paper ♻
