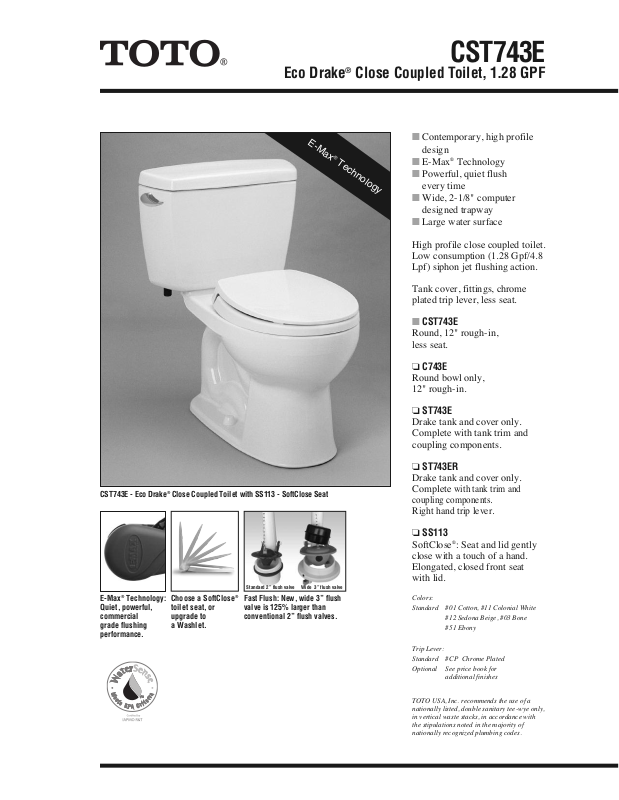

Page 1
CST743E
Eco Drake®Close Coupled Toilet, 1.28 GPF
E-
M
■ Contemporary, high profile
a
®
x
Te
ch
n
o
l
o
g
y
design
■ E-Max®Technology
■ Powerful, quiet flush
every time
■ Wide, 2-1/8" computer
designed trapway
■ Large water surface
High profile close coupled toilet.
Low consumption (1.28 Gpf/4.8
Lpf) siphon jet flushing action.
Tank cover, fittings, chrome
plated trip lever, less seat.
■ CST743E
Round, 12" rough-in,
less seat.
❏ C743E
Round bowl only,
12" rough-in.
❏ ST743E
Drake tank and cover only.
Complete with tank trim and
coupling components.
CST743E - Eco Drake®Close Coupled Toilet with SS113 - SoftClose Seat
Wide 3” flush valveStandard 2” flush valve
E-Max®Technology:
Quiet, powerful,
commercial
grade flushing
performance.
Choose a SoftClose
toilet seat, or
upgrade to
a Washlet.
®
Fast Flush: New, wide 3” flush
valve is 125% larger than
conventional 2” flush valves.
❏ ST743ER
Drake tank and cover only.
Complete
with tank trim and
coupling components.
Right hand trip lever.
❏ SS113
SoftClose®: Seat and lid gently
close with a touch of a hand.
Elongated, closed front seat
with lid.
Colors:
Standard #01 Cotton, #11 Colonial White
Trip Lever:
Standard #CP Chrome Plated
Optional See price book for
TOTO USA, Inc. recommends the use of a
nationally listed, double sanitary tee-wye only,
in vertical waste stacks, in accordance with
the stipulations noted in the majority of
nationally recognized plumbing codes.
#12 Sedona Beige, #03 Bone
#51 Ebony
additional finishes
Page 2
19-1/2" (494 mm)
28-1/2" (724 mm)
8" (203mm)
1/2" Supply
6" (152mm)*
12" (305 mm)
14-5/8" (370 mm)
14" (355 mm)
16-1/2" (420 mm)
3/4" (20 mm)
5-1/2" (140 mm)
26-3/8" (670 mm)
Double Sanitary Tee/ Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Important Note:
Back-to-Back Toilet Installations:
TOTO USA, Inc. recommends the use
of a nationally listed, double sanitary
tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted
in the majority of nationally recognized
plumbing codes.
!
CST743E
Eco Drake®Close Coupled Toilet, 1.28 GPF
■ PERFORMANCE
The TOTO®E-Max®low consumption toilets
received high ratings during ANSI/ASME and
CSA testing at independent laboratories. Designed
with a powerful siphon jet flushing action, the
toilet offers a large water surface and a glazed
trapway.
■ SPECIFICATIONS
Water Use: 1.28 Gpf / 4.8 Lpf
Flush System:
Gravity Feed (E-Max
Technology)
Min. Water Pressure: 8 psi
Water Surface: 10-1/4" x 8-1/2"
Trap Diameter: 2-1/8"
Rough-in: 12" rough-in
Trap Seal: 2-3/8"
Warranty: One Year Limited Warranty
Material:
Vitreous china
Shipping Weight: C743E 53 lbs.
ST743E 35 lbs.
®
Shipping Dimensions:
C743E
27-3/4"L
x 15"W
1
x 10-1/4"W2x 15-3/4"H
ST743E
20-1/8"L x 8-1/4"W
x 15-1/2"H
Fixture dimensions and hydraulic performance meet
or exceed ANSI/ASME standard A112.19.2 and
CAN/CSA B 45 requirements.
Listing and approval: IAPMO/c-UPC, CSA, City of Los
Angeles, State of MA, and others
These dimensions and specifications are subject to
change without notice.
*Suggested Dimension
TOTO U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (888) 295-8134 • Fax. (800) 699-4889 • www.totousa.com
Printed in U.S.A. © TOTO LTD. 03/07 #A10340
CST743E - Eco Drake®Close Coupled Toilet
Printed on recycled paper
REV 03/09
