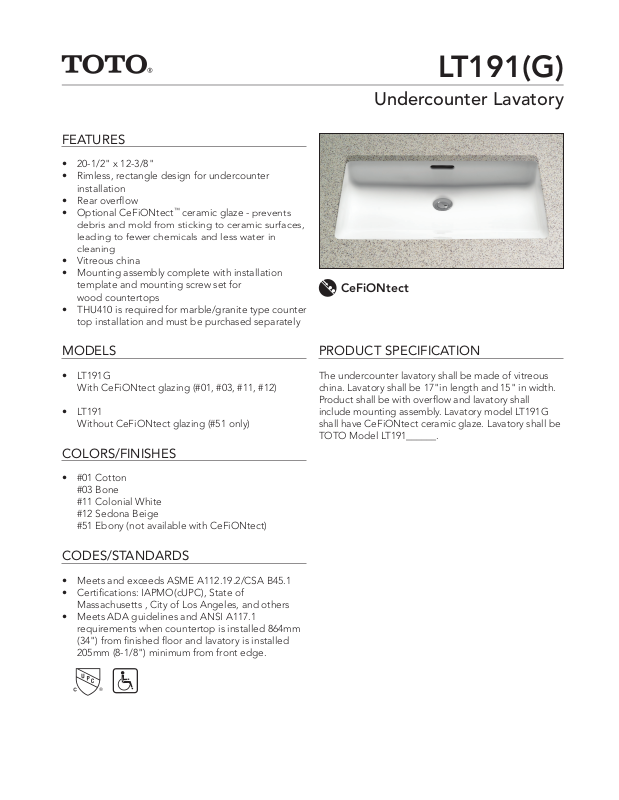

TOTO TOT3499 Specifications

FEATURES

• 20-1/2" x 12-3/8"

• Rimless, rectangle design for undercounter
installation

• Rear overflow

• Optional CeFiONtect™ ceramic glaze -

debris and mold from sticking to ceramic surfaces,
leading to fewer chemicals and less water in
cleaning

• Vitreous china

• Mounting assembly complete with installation
template and mounting screw set for

wood countertops

• THU410 is required for marble/granite type counter
top installation and must be purchased separately

prevents

LT191(G)

Undercounter Lavatory

CeFiONtect

MODELS

• LT191G

With CeFiONtect glazing (#01, #03, #11, #12)

• LT191

Without CeFiONtect glazing (#51 only)

COLORS/FINISHES

• #01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
#51 Ebony (not available with CeFiONtect)

CODES/STANDARDS

• Meets and exceeds ASME A112.19.2/CSA B45.1

• Certifications: IAPMO(cUPC), State of
Massachusetts , City of Los Angeles, and others

• Meets ADA guidelines and ANSI A117.1
requirements when countertop is installed 864mm
(34") from finished floor and lavatory is installed
205mm (8-1/8") minimum from front edge.

PRODUCT SPECIFICATION

The undercounter lavatory shall be made of vitreous
china. Lavatory shall be 17"in length and 15" in width.
Product shall be with overflow and lavatory shall
include mounting assembly. Lavatory model LT191G
shall have CeFiONtect ceramic glaze. Lavatory shall be
TOTO Model LT191______.

LT191(G)

Mounting Hardware

Undercounter Lavatory

SPECIFICATIONS INSTALLATION NOTES

• Waste 1-1/4" O.D.

• Size 23-3/4"W x 14-3/8"D

• Basin 20-1/2"W x 12-3/8"D

• Warranty One Year Limited Warranty

• Material Vitreous china

• Shipping Weight 24.8 lbs.

• Shipping Dimensions 24-5/8"W x 15-3/8"D
x 7-1/2"H

Wood/Composite Wood/Etc.

THU408 or THU473

(Included)

Marble/Granite/Etc.

THU410

(Sold Separately)

*21"

(533mm)

*18"

(457mm)

23-3/4"

(604mm)

20-1/2"

(520mm)

*8"

(203mm)

*3/8" SUPPLY

*1-1/4" WASTE

* Suggested Dimensions

12-3/8"

(315mm)

14-3/8"

(365mm)

1"

(25mm)

5-5/16"

(135mm)

34"

(864mm)

ADA Compliance Check

24"

(610mm)

2"

(51mm)

MINIMUM

8"

(203mm)

27"

(686mm)

11"

(279mm)

6"

(203mm)

9"

(229mm)

MAX

34"

(864mm)

Ph: [phone] | Fax: [phone] | www.totousa.com | © TOTO USA

17"

(432mm)

These dimensions and specications are subject to change without notice

#SS-00433 v.05
