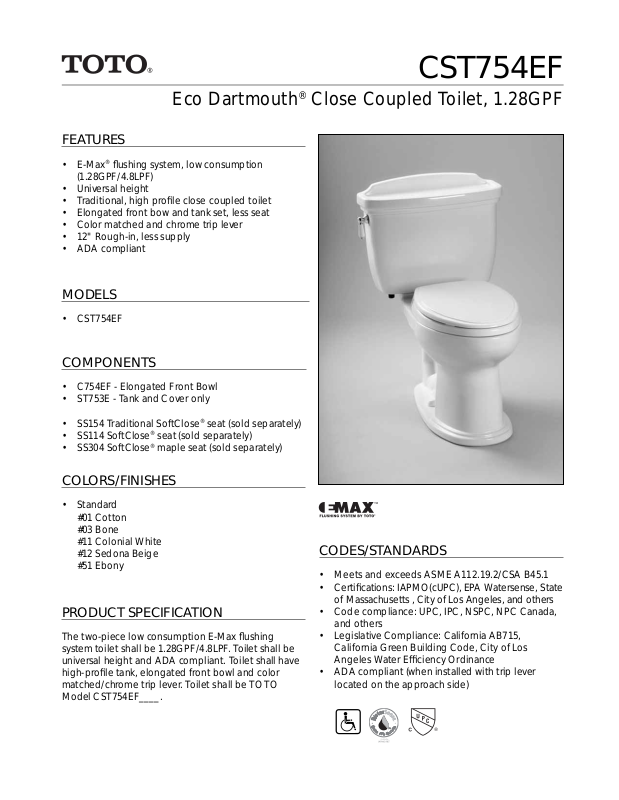

Page 1
Eco Dartmouth® Close Coupled Toilet, 1.28GPF
FEATURES
• E-Max® fl ushing system, low consumption
(1.28GPF/4.8LPF)
• Universal height
• Traditional, high profi le close coupled toilet
• Elongated front bow and tank set, less seat
• Color matched and chrome trip lever
• 12" Rough-in, less supply
• ADA compliant
MODELS
• CST754EF
COMPONENTS
CST754EF
• C754EF - Elongated Front Bowl
• ST753E - Tank and Cover only
• SS154 Traditional SoftClose® seat (sold separately)
• SS114 SoftClose® seat (sold separately)
• SS304 SoftClose® maple seat (sold separately)
COLORS/FINISHES
• Standard
#01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
#51 Ebony
PRODUCT SPECIFICATION
The two-piece low consumption E-Max fl ushing
system toilet shall be 1.28GPF/4.8LPF. Toilet shall be
universal height and ADA compliant. Toilet shall have
high-profi le tank, elongated front bowl and color
matched/chrome trip lever. Toilet shall be TOTO
Model CST754EF____.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifi cations: IAPMO(cUPC), EPA Watersense, State
of Massachusetts , City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715,
California Green Building Code, City of Los
Angeles Water Effi ciency Ordinance
• ADA compliant (when installed with trip lever
located on the approach side)
Page 2
CST754EF
Eco Dartmouth® Close Coupled Toilet, 1.28GPF/4.8 GPF
SPECIFICATIONS
• Water Use 1.28 GPF/4.8LPF
• Flush System E-Max
• Min. Water Pressure 8 psi (static)
• Water Surface 10-3/8" x 8-1/4"
• Trap Diameter 2-1/8"
• Rough-in 12"
• Trap Seal 2-3/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight C754EF - 56.5lbs
ST753E - 39.5lbs
• Shipping Dimensions C754EF
29-1/8"L x 11-1/8"W1
x 15" W2 x 17-3/8"H
ST753E
23-1/4"L x 9-5/8"W
x 20-7/8"H
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
5-1/2"
(140mm)
18-1/2" (470mm)
1-1/8"
(25mm)
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
8-1/8"
(205mm)
12"
(305mm)
28-1/2" (725mm)
14"
(355mm)
16-1/8"
(410mm)
20-5/8" (524mm)
1/2" Supply
*8"
(203mm)
*6"
(152mm)
These dimensions and specifi cations are subject to change without notice
Printed in U.S.A. | © TOTO USA 06/09 | Printed on recycled paper ƛ
*Suggested Dimension
30-3/4"
(781mm)
1-3/4" (43mm)
#SS-00356 v.o4
