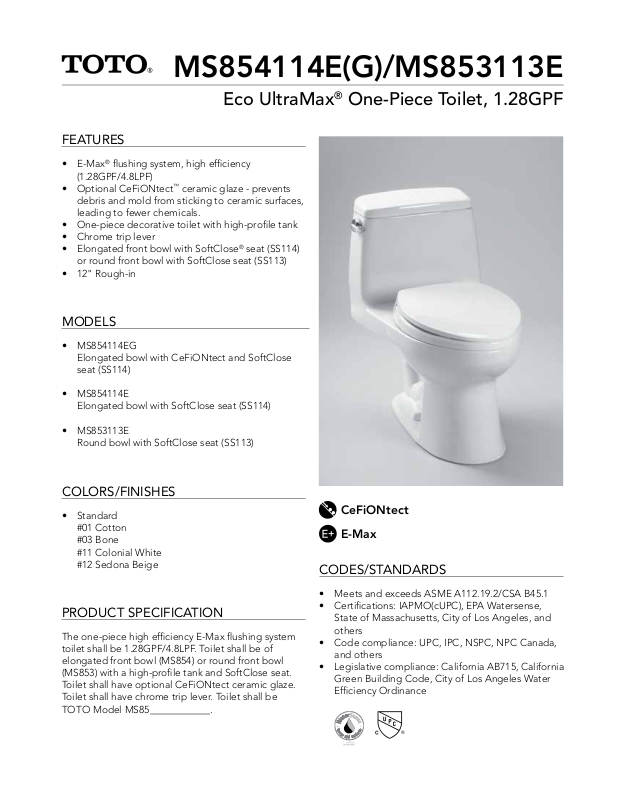

TOTO TOT3194 Specifications

MS854114E(G)/MS853113E

Eco UltraMax® One-Piece Toilet, 1.28GPF

FEATURES

• E-Max® flushing system, high efficiency
(1.28GPF/4.8LPF)

• Optional CeFiONtect™ ceramic glaze - prevents
debris and mold from sticking to ceramic surfaces,
leading to fewer chemicals.

• One-piece decorative toilet with high-profile tank

• Chrome trip lever

• Elongated front bowl with SoftClose® seat (SS114)
or round front bowl with SoftClose seat (SS113)

• 12" Rough-in

MODELS

• MS854114EG
Elongated bowl with CeFiONtect and SoftClose
seat (SS114)

• MS854114E
Elongated bowl with SoftClose seat (SS114)

• MS853113E
Round bowl with SoftClose seat (SS113)

COLORS/FINISHES

• Standard

#01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige

PRODUCT SPECIFICATION

The one-piece high efficiency E-Max flushing system
toilet shall be 1.28GPF/4.8LPF. Toilet shall be of
elongated front bowl (MS854) or round front bowl
(MS853) with a high-profile tank and SoftClose seat.
Toilet shall have optional CeFiONtect ceramic glaze.
Toilet shall have chrome trip lever. Toilet shall be
TOTO Model MS85____________.

CeFiONtect

E-Max

CODES/STANDARDS

• Meets and exceeds ASME A112.19.2/CSA B45.1

• Certifications: IAPMO(cUPC), EPA Watersense,
State of Massachusetts, City of Los Angeles, and
others

• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others

• Legislative compliance: California AB715, California
Green Building Code, City of Los Angeles Water
Efficiency Ordinance

MS854114E(G)/MS853113E

Eco UltraMax® One-Piece Toilet, 1.28GPF

SPECIFICATIONS

• Water Use 1.28 GPF/4.8 LPF

• Flush System E-Max

• Min. Water Pressure 8 psi (static)

• Water Surface 10-1/4" x 8-1/4"

• Trap Diameter 2-1/8"

• Rough-in 12"

• Trap Seal 2-3/8"

• Warranty One Year Limited Warranty

• Material Vitreous china

• Shipping Weight MS854114E(G) 93 lbs.

• Shipping Dimensions 30-3/4" L x 18-1/8"W

®

MS853113E 91 lbs.

x 27-1/8" H

INSTALLATION NOTES

Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,

double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.

Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend

YES NO

To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.

These dimensions and specications are subject to change without notice
