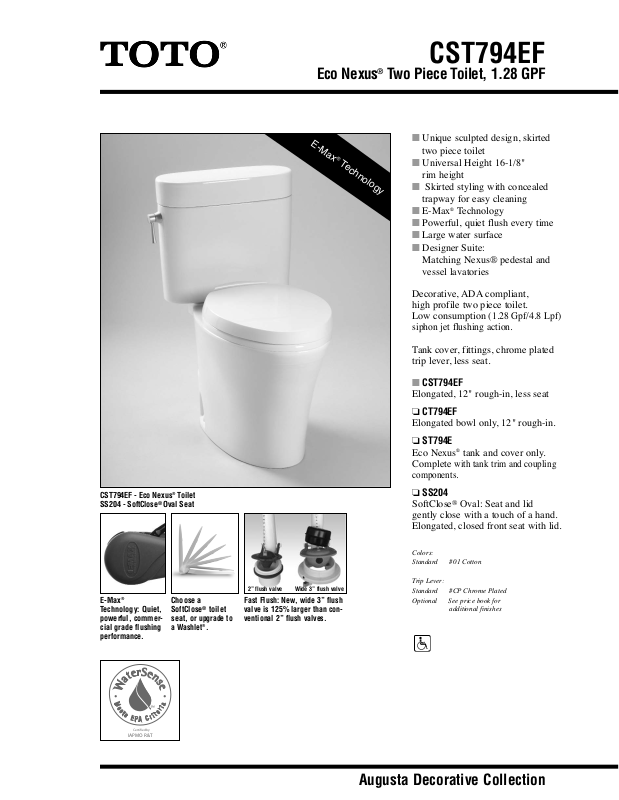

Page 1
CST794EF - Eco Nexus®Toilet
SS204 - SoftClose® Oval Seat
■ Unique sculpted design, skirted
two piece toilet
■ Universal Height 16-1/8"
rim height
■ Skirted styling with concealed
trapway for easy cleaning
■ E-Max®Technology
■ Powerful, quiet flush every time
■ Large water surface
■ Designer Suite:
Matching Nexus® pedestal and
vessel lavatories
Decorative, ADA compliant,
high profile two piece toilet.
Low consumption (
1.28 Gpf/
4.8
Lpf)
siphon jet flushing action.
Tank cover, fittings, chrome plated
trip lever, less seat.
■ CST794EF
Elongated, 12" rough-in, less seat
❏ CT794EF
Elongated bowl only, 12" rough-in.
❏ ST794E
Eco Nexus®tank and cover only.
Complete
with tank trim and coupling
components.
❏ SS204
SoftClose®Oval: Seat and lid
gently close with a touch of a hand.
Elongated, closed front seat with lid.
Colors:
Standard #01 Cotton
Trip Lever:
Standard #CP Chrome Plated
Optional See price book for
additional finishes
CST794EF
Eco Nexus®Two Piece Toilet, 1.28 GPF
Augusta Decorative Collection
E-Max
®
Technology
E-Max
®
Technology: Quiet,
powerful,
commercial grade flushing
performance.
Fast Flush: New, wide 3” flush
valve is 125% larger than conventional 2” flush valves.
2” flush valve Wide 3” flush valve
Choose a
SoftClose®toilet
seat, or
upgrade to
a Washlet®.
Certied by
IAPMO R&T
Page 2
CST794EF - Eco Nexus®Toilet
■ PERFORMANCE
The TOTO®E-Max®low consumption toilets
received high ratings during ANSI/ASME and
CSA testing at independent laboratories. Designed
with a powerful siphon jet flushing action, the toilet offers a large water surface and a glazed trapway.
■ SPECIFICATIONS
Water Use: 1.28 Gpf / 4.8 Lpf
Flush System:
Gravity Feed (E-Max
®
Technology)
Min. Water Pressure: 8 psi
Water Surface: 10-1/4" x 8-1/4"
Trap Diameter: 2-1/16"
Rough-in: 12" rough-in
Trapseal: 2-1/4"
Warranty: Five Year Limited Warranty
Material:
Vitreous china
Shipping Weight: CT794EF 81.5 lbs.
ST794E 33.5 lbs.
Shipping Dimensions:
CT794EF
29-3/4"L
x 16-
1/2"W
x 24-3/4"H
ST794E
20-3/8"L x 8-3/8"W
x 19-5/8"H
Fixture dimensions and hydraulic performance
meet or exceed ANSI/ASME standard A112.19.2 and
CAN/CSA B 45 and EPA WaterSense requirements.
Listing and approval: IAPMO/c-UPC, CSA, City of Los
Angeles, State of MA
Meets the American Disabilities Act Guidelines and
ANSI A117.1 requirements where installed so top of seat
is 17”-19” from the finished floor.
Recommended seat: SS204
These dimensions and specifications are subject to
change without notice.
CST794EF
Eco Nexus®Two Piece Toilet, 1.28 GPF
*Suggested Dimension
TOTO U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (888) 295-8134 • Fax. (770) 282-8701 • www.totousa.com
Printed in U.S.A. © TOTO LTD. 03/07 #A10330
Printed on recycled paper
5-1/2"
(140mm)
3/4"
(20mm)
28" (710mm)
18-1/2" (470mm)
14-1/2"
(368mm)
7-1/4" (185mm)
16-1/8"
(410mm)
12" (306mm)
17-7/8" (454mm)
1/2" Supply
12" (305mm)*
32"
(814mm)
5" (127mm)*
