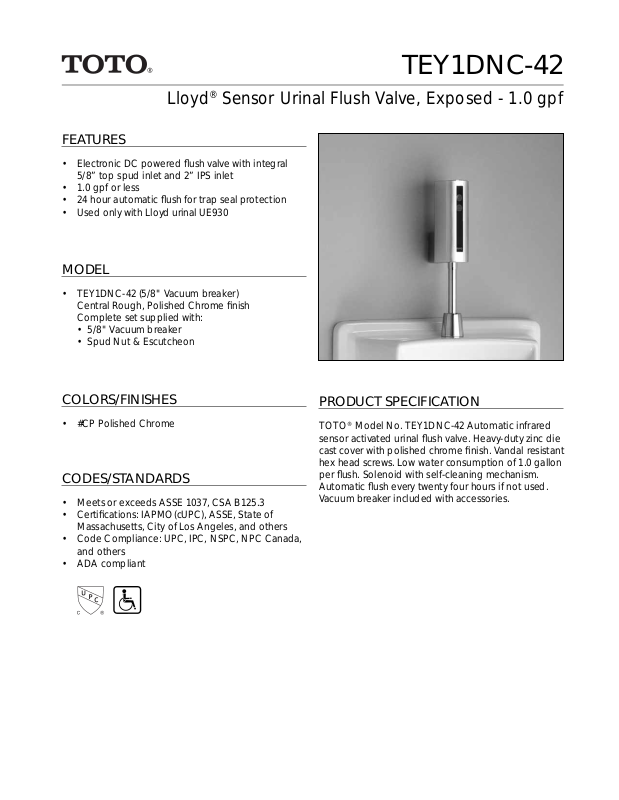

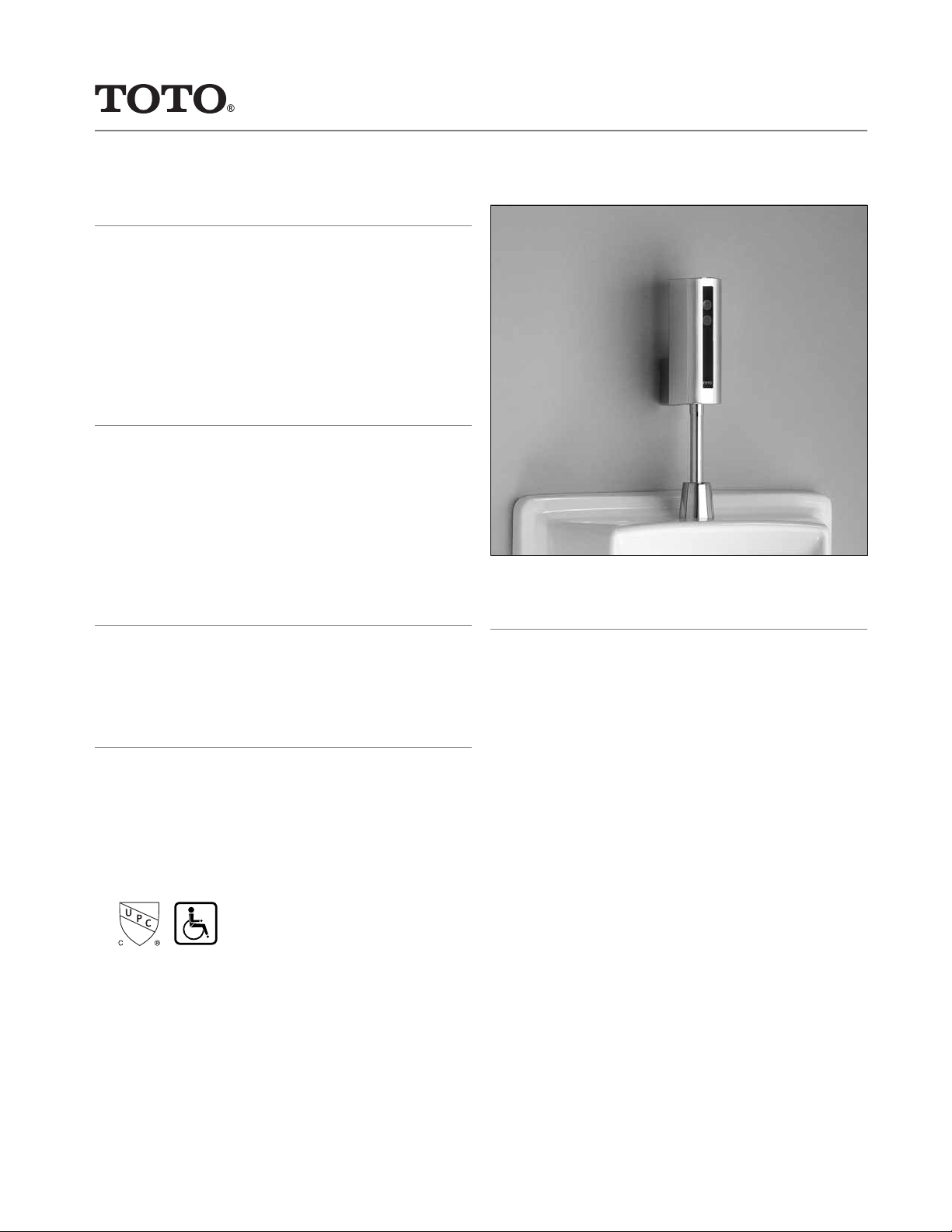

Lloyd® Sensor Urinal Flush Valve, Exposed - 1.0 gpf
FEATURES
• Electronic DC powered fl ush valve with integral
5/8” top spud inlet and 2” IPS inlet
• 1.0 gpf or less
• 24 hour automatic fl ush for trap seal protection
• Used only with Lloyd urinal UE930
MODEL
• TEY1DNC-42 (5/8" Vacuum breaker)
Central Rough, Polished Chrome fi nish
• Complete set supplied with:
• 5/8" Vacuum breaker
• Spud Nut & Escutcheon
TEY1DNC-42
COLORS/FINISHES
• #CP Polished Chrome
CODES/STANDARDS
• Meets or exceeds ASSE 1037, CSA B125.3
• Certifi cations: IAPMO(cUPC), ASSE, State of
Massachusetts, City of Los Angeles, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant
PRODUCT SPECIFICATION
®
TOTO
sensor activated urinal fl ush valve. Heavy-duty zinc die
cast cover with polished chrome fi nish. Vandal resistant
hex head screws. Low water consumption of 1.0 gallon
per fl ush. Solenoid with self-cleaning mechanism.
Automatic fl ush every twenty four hours if not used.
Vacuum breaker included with accessories.
Model No. TEY1DNC-42 Automatic infrared
Page 2
TEY1DNC-42
Lloyd® Sensor Urinal Flush Valve, Exposed - 1.0 gpf
SPECIFICATIONS
• Warranty Three Year Warranty
• Material Bronze casting with
polished chrome fi nish
• Power Supply Two AA alkaline batteries
• Water Supply 1/2" NPT
• Detection range Self-adjusting to environment
• Discharge quantity Fuzzy logic adjusted fl ush
volume at 28 psi (0.5-1.0 gpf)
• Urinal type Low consumption wash down
and jetted fl ush design urinal
• Operating temperature 33°-104°F (1°-40°C)
• Supply water pressure 10 psi - 100 psi*
• Trap seal protection Automatically fl ushes once
after twenty-four (24) hours
of non-use
These specifi cations are subject to change without notice.
*Water pressures over 80 psi are not recommended for most plumbing fi xtures.
Check your local plumbing code for details.
NOTES
TOTO’s 1.0 gpf EcoPower fl ush valves use “Fuzzy
Logic” technology to offer further water conservation. The fl ush valve’s microprocessor measures the
duration and frequency of use, then calculates the
appropriate average volume per fl ush. In facilities with
frequent use, the fl ush valve issues less water per fl ush
with a full fl ush occurring every 5 uses. In facilities with
infrequent use, the valve delivers the full fl ush every
time.

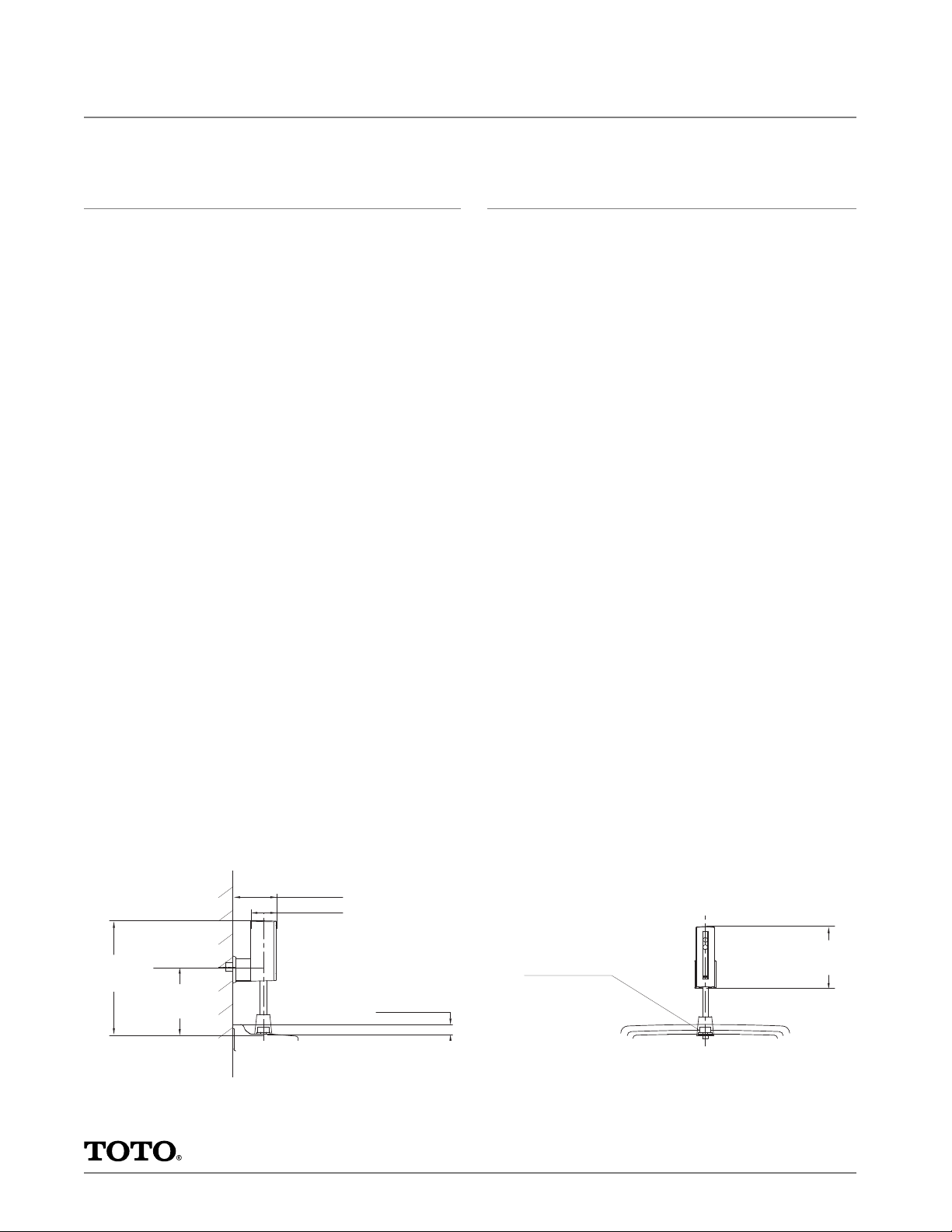

4-1/4" (108mm)
2-1/2" (63mm)
11"
(280mm)
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
6-1/2"
(165mm)
1" (24mm)
5/8"
(16mm) Spud
These dimensions and specifi cations are subject to change without notice
Printed in U.S.A. | © TOTO USA 10/09 | Printed on recycled paper ♻
6"
(150mm)
# SS-00554 v.02
