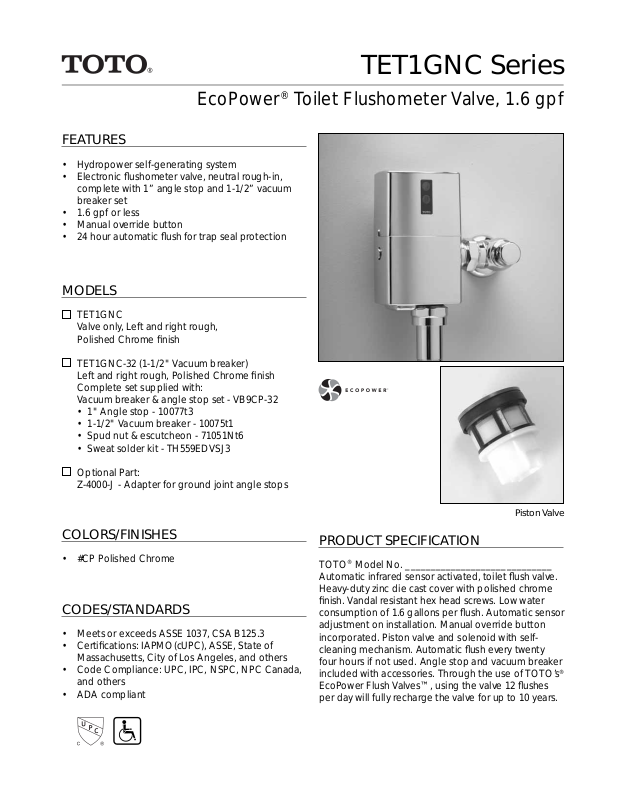

EcoPower® Toilet Flushometer Valve, 1.6 gpf
FEATURES
• Hydropower self-generating system
• Electronic fl ushometer valve, neutral rough-in,
complete with 1” angle stop and 1-1/2” vacuum
breaker set
• 1.6 gpf or less
• Manual override button
• 24 hour automatic fl ush for trap seal protection
MODELS
TET1GNC
Valve only, Left and right rough,
Polished Chrome fi nish
TET1GNC-32 (1-1/2" Vacuum breaker)
Left and right rough, Polished Chrome fi nish
Complete set supplied with:
Vacuum breaker & angle stop set - VB9CP-32
• 1" Angle stop - 10077t3
• 1-1/2" Vacuum breaker - 10075t1
• Spud nut & escutcheon - 71051Nt6
• Sweat solder kit - TH559EDVSJ3
TET1GNC Series
Optional Part:
Z-4000-J - Adapter for ground joint angle stops
COLORS/FINISHES
• #CP Polished Chrome
CODES/STANDARDS
• Meets or exceeds ASSE 1037, CSA B125.3
• Certifi cations: IAPMO(cUPC), ASSE, State of
Massachusetts, City of Los Angeles, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant
Piston Valve
PRODUCT SPECIFICATION
®
TOTO
Automatic infrared sensor activated, toilet fl ush valve.
Heavy-duty zinc die cast cover with polished chrome
fi nish. Vandal resistant hex head screws. Low water
consumption of 1.6 gallons per fl ush. Automatic sensor
adjustment on installation. Manual override button
incorporated. Piston valve and solenoid with selfcleaning mechanism. Automatic fl ush every twenty
four hours if not used. Angle stop and vacuum breaker
included with accessories. Through the use of TOTO’s
EcoPower Flush Valves™, using the valve 12 fl ushes
per day will fully recharge the valve for up to 10 years.
Model No. _____________________________
®
Page 2
TET1GNC Series
EcoPower® Toilet Flushometer Valve, 1.6 gpf
SPECIFICATIONS
• Warranty Three Year Warranty
• Material Bronze casting with
polished chrome fi nish
INSTALLATION NOTES
*Alternate ADA Installation
Mount grab bar at the 36” (914mm) maximum allowed
height or use the split grab bars.
• Power Supply Hydropower self-generating
system
• Water Supply 1" NPT
• Detection time Factory setting at six (6)
seconds minimum
• Detection range Self-adjusting to environment
• Discharge quantity Preset to 1.6 gpf / 6.0 lpf
• Supply water pressure 15 psi - 125 psi*
• Trap seal protection Automatically fl ushes once
after twenty-four (24) hours
of non-use
These specifi cations are subject to change without notice.
*Water pressures over 80 psi are not recommended for most plumbing fi xtures.
Check your local plumbing code for details.
4-3/4" 1/2"
(120 13mm)
11-1/2"
(292mm)
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
Min.2-1/4"
(57mm)
**Check local codes
1"NPT
Max19-11/16"
(Max 500 mm)
L
Max31-1/2"
(Max 800 mm)
These dimensions and specifi cations are subject to change without notice
# SS-00085, v.04
Printed in U.S.A. | © TOTO USA 10/09 | Printed on recycled paper ♻
