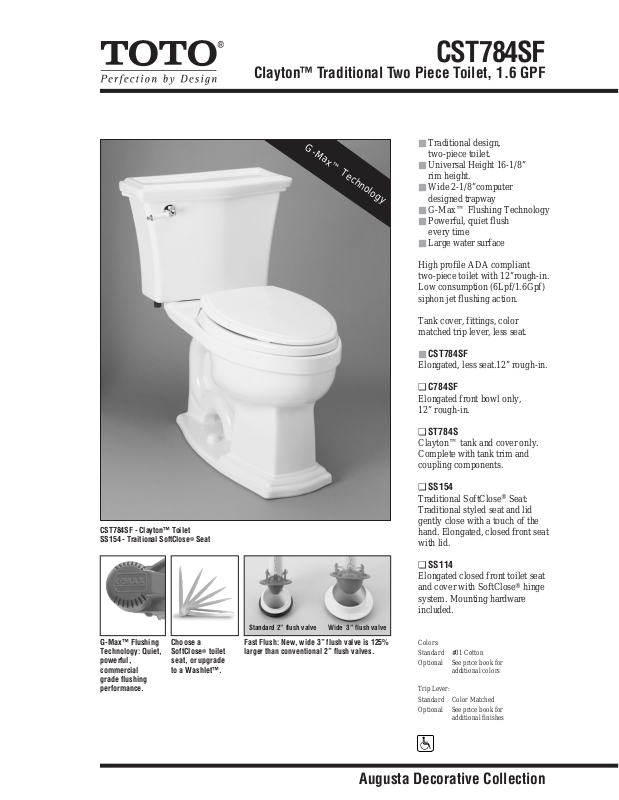

Page 1
CST784SF
Clayton™ Traditional Two Piece Toilet, 1.6 GPF
G-Max™ Technology
■ Traditional design,
two-piece toilet.
■ Universal Height 16-1/8”
rim height.
■ Wide 2-1/8”computer
designed trapway
■ G-Max™ Flushing Technology
■ Powerful, quiet flush
every time
■ Large water surface
High profile ADA compliant
two-piece toilet with 12”rough-in.
Low consumption (6Lpf/1.6Gpf)
siphon jet flushing action.
Tank cover, fittings, color
matched trip lever, less seat.
■ CST784SF
Elongated, less seat.12” rough-in.
❏ C784SF
Elongated front bowl only,
12” rough-in.
❏ ST784S
Clayton™ tank and cover only.
Complete with tank trim and
coupling components.
CST784SF - Clayton™ Toilet
SS154 - Traitional SoftClose®Seat
G-Max™ Flushing
Technology: Quiet,
powerful,
commercial
grade flushing
performance.
Choose a
SoftClose®toilet
seat, or upgrade
to a Washlet™.
Standard 2” flush valve Wide 3” flush valve
Fast Flush: New, wide 3” flush valve is 125%
larger than conventional 2” flush valves.
❏ SS154
®
Traditional SoftClose
Seat:
Traditional styled seat and lid
gently close with a touch of the
hand. Elongated, closed front seat
with lid.
❏ SS114
Elongated closed front toilet seat
®
and cover with SoftClose
hinge
system. Mounting hardware
included.
Colors:
Standard #01 Cotton
Optional See price book for
Trip Lever:
Standard Color Matched
Optional See price book for
additional colors
additional finishes
Augusta Decorative Collection
Page 2
CST784SF
Clayton™ Traditional Two Piece Toilet, 1.6 GPF
■ PERFORMANCE
The TOTO®G-Max™ low consumption toilets
received high ratings during ANSI/ASME
and CSA testing at independent laboratories.
Designed with a powerful siphon jet flushing
action, the toilet offers a large water surface
and a glazed trapway.
■ SPECIFICATIONS
Water Use: 1.6 Gpf/6.0 Lpf
Flush System: Gravity Feed
(G-Max System)
Min. Water Pressure: 8 psi
Water Surface: 10-5/8" x 8-1/4"
Trap Diameter: 2-1/8"
Rough In: 12" rough in
Trap Seal: 2-3/8"
Warranty: Five Year Limited Warranty
Material: Two piece vitreous china
bowl and tank
1" (25 mm)
5-1/2" (140 mm)
14" (355 mm)
28-7/8" (732 mm)
8-1/4" (208 mm)
Shipping Weight: C784SF–Bowl
62 lbs.
ST784S–Tank
36.5 lbs.
Shipping Dimensions: C784SF–Bowl
30"L x 12-1/4"W
1
x 14-5/8"W2x 18-1/8"H
ST784S–Tank
22-1/8"L x 10"W
x 17-3/4"H
Fixture dimensions and hydraulic performance meet or
exceed ANSI/ASME standard A112.19.2M and CAN/CSA
B 45 requirements.
Listing / Approvals: IAPMO/UPC, CSA, City of Los
Angeles, State of Massachusetts, and others.
Meets the Americans with Disabilities Act Guidelines and
ANSI A117.1 requirements where installed so top of seat
is 17” from the finished floor. Recommended seat for
ADA requirements: TOTO model #SS154.
16-1/8" (410 mm)
12" (305 mm)
21-1/4" (538 mm)
31-5/8" (802 mm)
1/2" Supply
8" (203mm)
6" (152mm)*
* Suggested Dimension
CST784SF - Clayton™ Toilet
These dimensions and specifications are subject to
change without notice.
TOTO®U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260
Tel. (888) 295-8134 • Fax. (770) 282-8701 • www.totousa.com
Printed in U.S.A. © TOTO®LTD. 08/04 #A10097
Printed on recycled paper
REV 08/04
